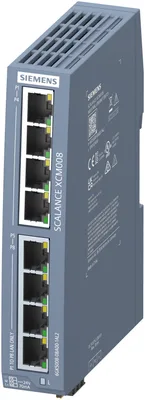

Siemens 6GK5008-0BA00-1AL2
SCALANCE XCM008 Industrial Ethernet anahtar en çok 100 Mbps; için setting up küçük star ve linear topologies; LED diagnostics, IP30, 24 V DC güç kaynağı, ile 8x 10/100 Mbps twisted pair ports ile RJ45 sockets; manuel mevcut as a download extended sıcaklık range
product brand nameSCALANCE
product type designationXCM008
transfer rate10, 100 Mbit/s
for power supply1
for power supply3-pole terminal block
supply voltage / 1 / rated value24 V
Ürün Hakkında
SCALANCE XCM008 Industrial Ethernet anahtar en çok 100 Mbps; için setting up küçük star ve linear topologies; LED diagnostics, IP30, 24 V DC güç kaynağı, ile 8x 10/100 Mbps twisted pair ports ile RJ45 sockets; manuel mevcut as a download extended sıcaklık range
Siemens 6GK5008-0BA00-1AL2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXCM008
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment8; RJ45
interfaces / other
for power supply1
for power supply3-pole terminal block
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value1,43 W
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum0,07 A
type of electrical connection / 1 / for power supply3-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage0,5 A / 60 V
ambient conditions
during operation-40... +75 °C
during storage-40... +85 °C
during transport-40... +85 °C
installation altitude / at height above sea level / maximum4000 m
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP30

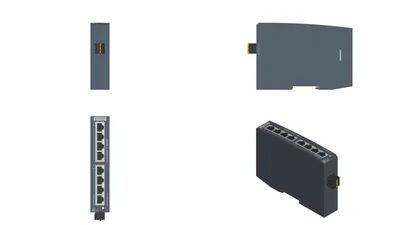

design, dimensions and weights
designcompact
width27,8 mm
height140 mm
depth97,5 mm
net weight0,184 kg
35 mm DIN-rail mountingVar
wall mountingVar
S7-300 rail mountingYok
S7-1500 rail mountingYok
product features, product functions, product components / general
number of automatically learnable MAC addresses2048
number of QoS queues / per port4
QoS according to IEEE 802.1QVar
product functions / management, configuration, engineering
multiport mirroringYok
CoSVar
switch-managedYok
PROFINET conformity classA
telegram length / for Ethernet / maximum1536 bayt
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
standards, specifications, approvals
CE markingVar
UKCA markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4:2001
for immunity to EMCEN 61000-6-2:2001
for safety / from CSA and ULUL 60950-1, CSA C22.2 Yok. 60950-1
standards, specifications, approvals / other
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Chinese Classification Society (CCS)Yok
Det Norske Veritas (DNV)Yok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Royal Institution of Naval Architects (RINA)Yok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
product functions / general
MTBF309,1 a
reference temperature / for MTBF determination40 °C
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Aksesuarlar 3
Siemens 6GK5008-0BA00-1AL2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-1BB11-2AA0 | Aksesuar | |
| 6GK1901-1BB11-2AB0 | Aksesuar | |
| 6GK1901-1BB11-2AE0 | Aksesuar |
