Siemens 6GK5005-0BA10-1AA3

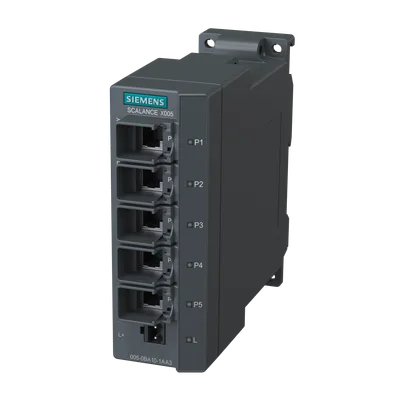

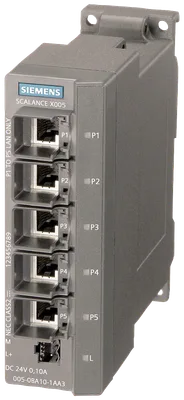

SCALANCE X005, IE Entry Level anahtar unmanaged 5x 10/100 Mbit/s RJ45 ports, LED diagnostics, IP30, 24 V DC güç kaynağı, PROFINET-compliant securing collars, Extended sıcaklık range -40 °C...+75 °C, manuel mevcut as a download.
product brand nameSCALANCE
product type designationX005
transfer rate10, 100 Mbit/s
for multimode0
for power supply1
for power supply2-pole terminal block
Ürün Hakkında
SCALANCE X005, IE Entry Level anahtar unmanaged 5x 10/100 Mbit/s RJ45 ports, LED diagnostics, IP30, 24 V DC güç kaynağı, PROFINET-compliant securing collars, Extended sıcaklık range -40 °C...+75 °C, manuel mevcut as a download.
Siemens 6GK5005-0BA10-1AA3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationX005
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment5; RJ45 with securing collar
for multimode0
interfaces / other
for power supply1
for power supply2-pole terminal block
supply voltage, current consumption, power loss
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value2 W
supply voltage / 1 / voltage range18... 32
consumed current / 1 / maximum0,08 A
type of electrical connection / 1 / for power supply2-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage0,5 A / 60 V
ambient conditions
during operation-40... +75 °C
during storage-40... +80 °C
during transport-40... +80 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP30

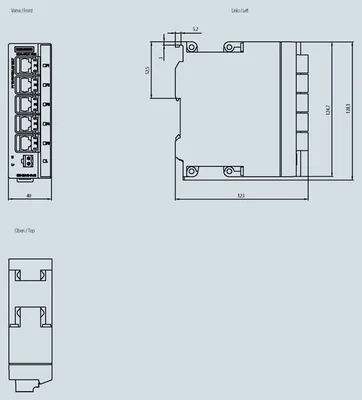

design, dimensions and weights
designcompact
width40 mm
height125 mm
depth124 mm
net weight0,55 kg
35 mm DIN-rail mountingVar
wall mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingYok
product functions / management, configuration, engineering
multiport mirroringYok
CoSVar
switch-managedYok
PROFINET conformity classA
product functions / redundancy
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
standards, specifications, approvals
CE markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 60950-1, CSA C22.2 Yok. 60950-1
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
E1 approvalVar
railway application in accordance with EN 50155Yok
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'Yok' are currently under renewal.
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Chinese Classification Society (CCS)Yok
Det Norske Veritas (DNV)Yok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
product functions / general
MTBF167,1 a
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
