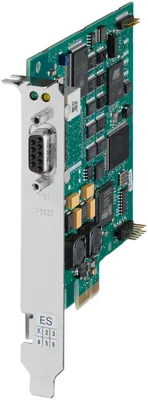

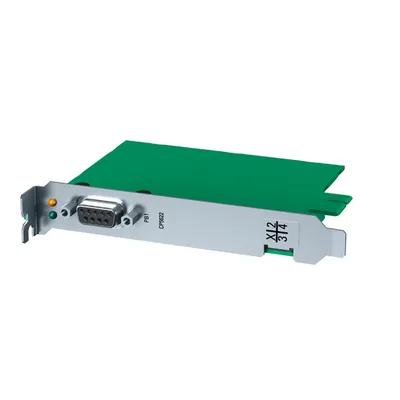

Siemens 6GK1562-2AA00
halefi için CP 5621 için multicore PC systems 5622 PCI Express X1 card için bağlantı of a PG veya PC ile PCI Express bus to PROFIBUS veya MPI can be used under 32 bit ve 64 bit için çalışma systems also refer to Entry ID 22611503.
product brand nameSIMATIC NET
of the backplane busPCI Express x1
type of voltage / of the supply voltageDC
1 / from backplane bus3,3 V
2 / from backplane bus12 V
at 3.3 V9 %
Ürün Hakkında
halefi için CP 5621 için multicore PC systems 5622 PCI Express X1 card için bağlantı of a PG veya PC ile PCI Express bus to PROFIBUS veya MPI can be used under 32 bit ve 64 bit için çalışma systems also refer to Entry ID 22611503.
Siemens 6GK1562-2AA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
at the 1st interface / according to PROFIBUS9,6 kbit/s... 12 Mbit/s
interfaces
at the 1st interface / according to PROFIBUS1
at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS 485)
of the backplane busPCI Express x1
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
1 / from backplane bus3,3 V
2 / from backplane bus12 V
at 3.3 V9 %
at 12 V8 %
1 / from backplane bus / at DC / maximum0,3 A
2 / from backplane bus / at DC / maximum0,25 A
power loss [W]4 W
ambient conditions
during operation5... 55 °C
during storage-20... +60 °C
during transport-20... +60 °C
relative humidity / at 25 °C / without condensation / during operation / maximum85 %
protection class IPIP00

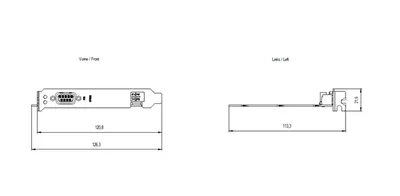

design, dimensions and weights
module formatPCI Express x1
width18 mm
height112 mm
depth101 mm
net weight87 g
product features, product functions, product components / general
number of plug-in cards of same design / plug-in / per PC station1
number of units / note-
performance data / open communication
software / for open communication / by means of SEND/RECEIVE / requiredVar, SOFTNET-PB DP / SOFTNET-PB DP Slave / SOFTNET-PB S7
number of possible connections / for open communication / by means of SEND/RECEIVE / maximum50
performance data / PROFIBUS DP
software / for DP master function / requiredVar, SOFTNET-PB DP
DPV0Var
DPV1Var
DPV2Yok
number of DP devices / on DP master / operable64
of the address range of the inputs / as DP master / total14640 bayt
of the address range of the outputs / as DP master / total14640 bayt
of the address range of the inputs / per DP device244 bayt
of the address range of the outputs / per DP device244 bayt
of the address range of the diagnostic data / per DP device244 bayt
software / for DP device function / requiredVar, SOFTNET-PB DP slave
DPV0Var
DPV1Yok
of the address range of the inputs / as DP device / total122 bayt
of the address range of the outputs / as DP device / total122 bayt
performance data / S7 communication
software / for S7 communication / requiredVar, SOFTNET-PB S7
number of possible connections / for S7/PG communication / maximum8
performance data / multi-protocol mode
number of configurable connections / per PC station207
product functions / management, configuration, engineering
configuration software / requiredIncluded in the scope of delivery of the required software product
product functions / diagnostics
port diagnosticsVar
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total127,99 kg
during manufacturing18,9 kg
during operation109 kg
after end of life0,09 kg
accessories
accessoriesoptional: MPI cable
Aksesuarlar 3
Siemens 6GK1562-2AA00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1713-5CB00-3AL0 | Aksesuar | |
| 6GK1713-5CB25-0AA0 | Aksesuar | |
| 6GK1713-5DB25-0AA0 | Aksesuar |
