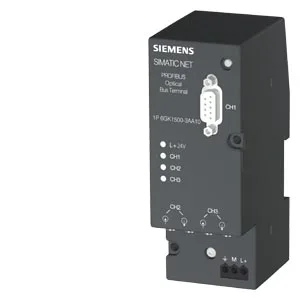

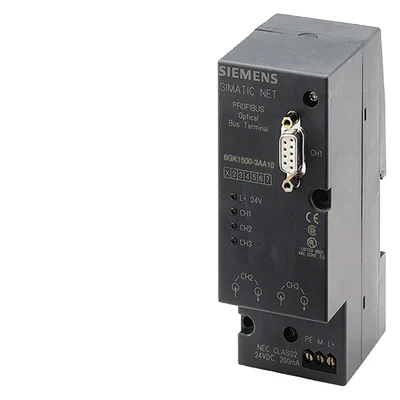

Siemens 6GK1500-3AA10
PROFIBUS OBT; opt. bus klemens için bağlantı of a PROFIBUS nodes olmadan integr. opt. arayüz to the opt. PROFIBUS DP; olmadan Simplex plug.
product brand nameSIMATIC NET
transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s
transfer rate / with PROFIBUS PA45,45 kbit/s
for power supply1
for power supply3-pole terminal block
for power supply and signaling contact-
Ürün Hakkında
PROFIBUS OBT; opt. bus klemens için bağlantı of a PROFIBUS nodes olmadan integr. opt. arayüz to the opt. PROFIBUS DP; olmadan Simplex plug.
Siemens 6GK1500-3AA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s
transfer rate / with PROFIBUS PA45,45 kbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum3
for network components or terminal equipment1
for power supply1
for network components or terminal equipment9-pin Sub-D socket
for power supply3-pole terminal block
for power supply and signaling contact-
number of optical interfaces / for fiber optic cable2
design of the optical interface / for fiber optic cableDuplex port
optical data
for PCF FOC with 200/230 µm / at 10 dB/km3 dB
for POF FOC with 980/1000 µm / at 230 dB/km13 dB
propagation delay [bit]6,5 bit
of the FOC transmission link / for PCF FOC with 200/230 µm / at 10 dB/km-16 dB
of the FOC transmission link / for POF FOC with 980/1000 µm / at 230 dB/km-5.9 dB
of the FOC transmission link / for PCF FOC with 200/230 µm / at 10 dB/km-22 dB
of the FOC transmission link / for POF FOC with 980/1000 µm / at 230 dB/km-20 dB
wavelength / of the optical interface / note660 nm, POF/PCF
for PCF FOC with 200/230 µm / at 10 dB/km / maximum300 m
for POF FOC with 980/1000 µm / at 230 dB/km / maximum50 m
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / at DC / rated value24 V
supply voltage / at DC19,2... 28,8 V
ambient conditions
during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP30
design, dimensions and weights
designcompact
width50,5 mm
height138 mm
depth78 mm
net weight400 g
35 mm DIN-rail mountingVar
wall mountingVar
product functions / redundancy
product function / ring redundancyYok
standards, specifications, approvals
for safety / from CSA and ULUL 60950-1, CSA C22.2 Nr. 60950-1
for emitted interferenceEN 61000-6-4 (Class A)
for interference immunityEN 61000-6-2
certificate of suitabilityEN 61000-6-2, EN 61000-6-4
CE markingVar
C-TickVar
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / hazardous environments
certificate of suitability / CCC / for hazardous zone according to GB standardYok
