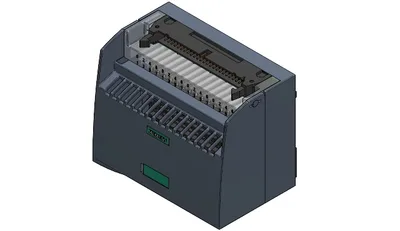

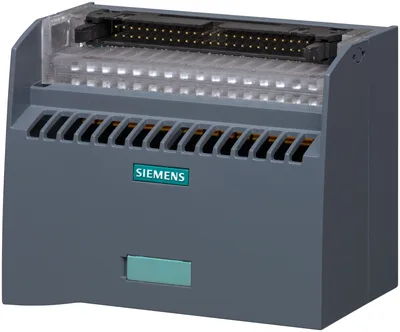

Siemens 6ES7924-2AK20-0BC0
bağlantı modül TP1 DI-M read 32 channels a. 4x2 terminals f. Potential besleme tip: Push-in klemens ile LED, VPE = 1 ünite 50 kutup IDC konnektör f. kablo
target systemSIMATIC S7-1500
suitability for useDigital I/O modules
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationConnection module
at DC / rated value24 V
Ürün Hakkında
bağlantı modül TP1 DI-M read 32 channels a. 4x2 terminals f. Potential besleme tip: Push-in klemens ile LED, VPE = 1 ünite 50 kutup IDC konnektör f. kablo
Siemens 6ES7924-2AK20-0BC0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
target systemSIMATIC S7-1500
suitability for useDigital I/O modules
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationConnection module
electrical data
at DC / rated value24 V
rated value24 V
at DC / maximum28,8 V
ampacity / per pin / maximum1 A
continuous current / at DC / per signal cable / maximum1 A
total current / maximum2 A
as status display of the inputs/outputsLED yellow for "active high"
for power supply / power LEDVar; green for 24 V DC O.K.
product function / infeed functionVar
PE connectionYok
shield connectionYok
disconnectorYok
product feature / cross-connectableYok
connection method
number of terminals48; 32 x I/O; 8 x L+, 8 x M
number of channels32
type of connecting terminalpush-in
position / of the terminalTop
number of terminal levels1
design of terminal / terminal levels internally linkedYok
type of electrical connection / for connecting cablePlug-in connection
number of poles / at the 1st interface50; IDC connector with installed strain relief for the connecting cable
number of the plug contacts / of the electrical connection1
wire length / maximum30 m; between front connector module ve Connection module
type of connectable conductor cross-sections / solidYok
for flexible conductor / with core end processing0,2... 2,5 mm²; End sleeve according to DIN 46228/1 veya DIN 46228/4 with plastic collar
stranded0,2... 2,5 mm²
finely stranded / without core end processing0,2... 2,5 mm²
finely stranded / with core end processing0,2... 2,5 mm²
number of cables / per connection2; Connection for internal system: Combination of 1 veya 2 Wires until the sum toplam of cross sections be achieved in a ferrule.
width of screwdriver blade3,5 mm
standards, specifications, approvals
cULus approvalVar
IECExVar
ATEXVar
ULhazloc approvalVar
UKEXVar
CCC / for hazardous zone according to GB standardVar
design tested acc. to type of protection / EEx eVar
overvoltage category2
degree of pollution2
combustibility class according to UL 94V1
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total141,2 kg
during manufacturing1,6 kg
during operation139,5 kg
after end of life0,15 kg
ambient conditions
during operation-30... +60 °C
during storage-40... +70
mechanical data

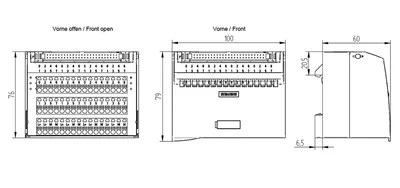

width × height × depth100 mm × 76 mm × 60 mm
mounting typeDIN rail 35 mm, DIN rail 15 mm
mounting positionany
height / with lowest-profile installation60 mm
net weight0,21 kg
insulation materialother
of the enclosuregrey
of the light sourceother
product component / required / end cover plateYok
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
marketing textThe connection module TP1 DI sourcing input for a 1-wire connection with 32 channels ve potential connection with push-in terminals with LED for signaling forms the interface between the connection lines of the I/O brought in from the field ve the SIMATIC S7. This is mounted on the DIN rail ve, thanks to its functionality with push-in terminals, it is precisely adapted to the task hand. This connection module is part of the fully modular SIMATIC TOP connect for the fastest ve safest system cabling. In addition to a low wiring effort, sources of error during cabling can be significantly reduced. Sensors ve actuators from the I/O are connected to the SIMATIC TOP connect terminal modules ve are connected with the SIMATIC S7-1500 via the connecting cable ve front connector module.
