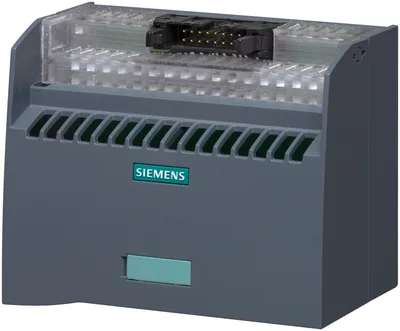

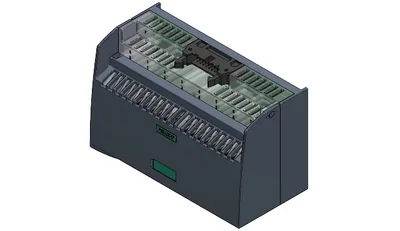

Siemens 6ES7924-0BF20-0BC0
bağlantı modül TPOO ile optocoupler 24 VDC, çıkış 8 NO contacts 24V DC/4 A aşırı yük ve short circuit-proof, ile LED Push-in klemens VPE = 1 ünite 16 kutup IDC konnektör f. kablo
target systemSIMATIC S7-300 / 1500
suitability for useDigital output module
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationConnection module
at DC / rated value24 V; for coil
Ürün Hakkında
bağlantı modül TPOO ile optocoupler 24 VDC, çıkış 8 NO contacts 24V DC/4 A aşırı yük ve short circuit-proof, ile LED Push-in klemens VPE = 1 ünite 16 kutup IDC konnektör f. kablo
Siemens 6ES7924-0BF20-0BC0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
target systemSIMATIC S7-300 / 1500
suitability for useDigital output module
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationConnection module
electrical data
at DC / rated value24 V; for coil
rated value24 V
at DC / maximum28,8 V
ampacity / per pin / maximum1 A
continuous current / at DC / per signal cable / maximum4 A
total current / maximum32 A; any, except overhead; voltage feed her biri group of four maks. 16A
switching capacity current / of the contacts / with resistive load / maximum4 A; for 24V DC
type of switching contactOptocoupler
operating frequency / maximum500 1/s
as status display of the inputs/outputsLED yellow for "active high"
for power supply / power LEDVar; green for 24 V DC O.K.
product function / infeed functionVar
PE connectionYok
shield connectionYok
disconnectorYok
product feature / cross-connectableYok
connection method
number of terminals22; 8 x O; 2 x L+, 2 x M; 10 x special terminals
number of channels8
type of connecting terminalpush-in
position / of the terminalTop
number of terminal levels1
design of terminal / terminal levels internally linkedYok
type of electrical connection / for connecting cablePlug-in connection
number of poles / at the 1st interface16; IDC connector with installed strain relief for the connecting cable
number of the plug contacts / of the electrical connection1
wire length / maximum30 m; between front connector module ve Connection module
type of connectable conductor cross-sections / solidYok
for flexible conductor / with core end processing0,2... 2,5 mm²; End sleeve according to DIN 46228/1 veya DIN 46228/4 with plastic collar
stranded0,2... 2,5 mm²
finely stranded / without core end processing0,2... 2,5 mm²
finely stranded / with core end processing0,2... 2,5 mm²
number of cables / per connection2; Connection for internal system: Combination of 1 veya 2 Wires until the sum toplam of cross sections be achieved in a ferrule.
width of screwdriver blade3,5 mm
standards, specifications, approvals
cULus approvalVar
design tested acc. to type of protection / EEx eYok
overvoltage category2
degree of pollution2
combustibility class according to UL 94V1
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total286,2 kg
during manufacturing1,6 kg
during operation284,4 kg
after end of life0,15 kg
ambient conditions
during operation0... 60 °C
during storage-40... +70
mechanical data

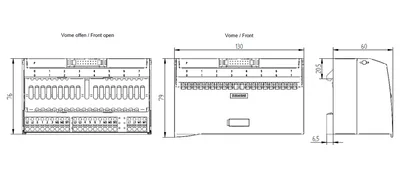

width × height × depth130 mm × 76 mm × 60 mm
mounting typeDIN rail 35 mm, DIN rail 15 mm
mounting positionany
height / with lowest-profile installation60 mm
net weight0,25 kg
insulation materialother
of the enclosuregrey
of the light sourceother
product component / required / end cover plateYok
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
marketing textThe TPOo connection module with optocoupler ve potential feed terminals (24VDC) for the connection of 8 digital outputs (24VDC) for potential adaption/isolation, contact designed as normally open contact, with push-in terminals ve LED for signalling forms the interface between the connection cables of the peripherals supplied from the field ve the SIMATIC S7. This is mounted on the DIN rail ve, thanks to its functionality with push-in terminals, is precisely adapted to the respective task. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest ve safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors ve actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect ve connected to the SIMATIC S7-300/1500 via cable ve front plug-in module.
