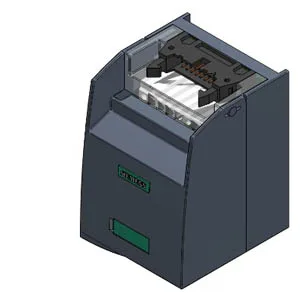

Siemens 6ES7924-0BB20-0AA0
klemens bloğu TP2 8 channels f. 2 A dijital çıkış ve 2x6 multiplication terminals tip: vidalı klemens olmadan LED, VPE=1 ünite 16 kutup IDC bağlantı için kablo
target systemSIMATIC S7-300 / 1500
suitability for use2A Output module
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationConnection module
at DC / rated value24 V
Ürün Hakkında
klemens bloğu TP2 8 channels f. 2 A dijital çıkış ve 2x6 multiplication terminals tip: vidalı klemens olmadan LED, VPE=1 ünite 16 kutup IDC bağlantı için kablo
Siemens 6ES7924-0BB20-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
target systemSIMATIC S7-300 / 1500
suitability for use2A Output module
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationConnection module
electrical data
at DC / rated value24 V
rated value50 V
at DC / maximum50 V
ampacity / per pin / maximum1 A
continuous current / at DC / per signal cable / maximum2 A
product function / infeed functionVar
PE connectionYok
shield connectionYok
disconnectorYok
product feature / cross-connectableYok
connection method
number of terminals20; 8 x O; 2 x 6 x M
number of channels8
type of connecting terminalScrew-type terminal
position / of the terminalTop
number of terminal levels1
design of terminal / terminal levels internally linkedYok
type of electrical connection / for connecting cablePlug-in connection
number of poles / at the 1st interface16; IDC connector with installed strain relief for the connecting cable
number of the plug contacts / of the electrical connection1
wire length / maximum30 m; between front connector module ve Connection module
type of connectable conductor cross-sections / solidYok
for flexible conductor / with core end processing0,5... 2,5 mm²; End sleeve according to DIN 46228/1
stranded0,5... 2,5 mm²
finely stranded / with core end processing0,5... 2,5 mm²
number of cables / per connection2; Connection for internal system: Combination of 1 veya 2 Wires until the sum toplam of cross sections be achieved in a ferrule.
width of screwdriver blade3,5 mm
tightening torque0,4... 0,5 N·m
standards, specifications, approvals
cULus approvalVar
design tested acc. to type of protection / EEx eYok
overvoltage category2
degree of pollution2
combustibility class according to UL 94V1
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total14,8 kg
during manufacturing1,1 kg
during operation13,7 kg
after end of life0,1 kg
ambient conditions
during operation0... 60 °C
during storage-40... +70
mechanical data

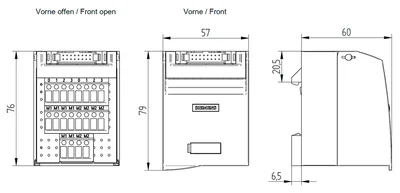

width × height × depth57 mm × 76 mm × 60 mm
mounting typeDIN rail 35 mm, DIN rail 15 mm
mounting positionany
height / with lowest-profile installation60 mm
net weight0,13 kg
insulation materialother
of the enclosuregrey
of the light sourcewithout
product component / required / end cover plateYok
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
marketing textThe TP2 connection module for the 2 ampere output modules with 8 channels for a 2-wire connection with screw terminals without LED for signalling forms the interface between the connection cables of the peripherals fed in from the field ve the SIMATIC S7. This is mounted on the DIN rail ve is exactly adapted to the respective task thanks to its functionality with screw terminals. This connection module is part of the fully modular SIMATIC TOP connect connection for the fastest ve safest system cabling.In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors ve actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect ve connected to the SIMATIC S7-300/1500 via cable ve front plug-in module.
