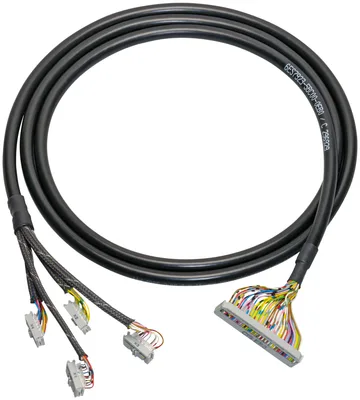

Siemens 6ES7923-5BC50-0EB0
Connecting kablo unshielded f. SIMATIC S7-300/1500 0,14 mm2 between ön konnektör modül 4 x 16 kutup ve bağlantı modül 1 x 50 kutup ile IDC connectors, L = 2,5 m
target systemSIMATIC S7-300 / 1500
suitability for useDigital I/O modules
input card PLCVar
PLC output cardVar
digital signal transmissionVar
analog signal transmissionYok
Ürün Hakkında
Connecting kablo unshielded f. SIMATIC S7-300/1500 0,14 mm2 between ön konnektör modül 4 x 16 kutup ve bağlantı modül 1 x 50 kutup ile IDC connectors, L = 2,5 m
Siemens 6ES7923-5BC50-0EB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
target systemSIMATIC S7-300 / 1500
suitability for useDigital I/O modules
input card PLCVar
PLC output cardVar
digital signal transmissionVar
analog signal transmissionYok
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationPre-assembled round cable
electrical data
rated value24 V
maximum60 V
connection method
design of cableRound cable
number of channels32
wire length2,5 m
conductor cross section / rated value0,14 mm²
Product component / with shieldYok
number of poles50
at the 1st interface16; cable side front connector module
at the 2nd interface50; on the connection module
connector typeIDC connector
type of electrical connection / on enclosureConnector strip
type of electrical connection / in the fieldConnector strip
standards, specifications, approvals
cULus approvalYok
Environmental Product Declaration
Environmental Product DeclarationVar
total6,159 kg
during manufacturing5,99 kg
during operation0 kg
after end of life0,015 kg
ambient conditions
during operation0... 60 °C
during storage-30... +70
mechanical data
outer diameter / of cable sheath10,3 mm
material / of the connection cable sheathPVC
color / of cable sheathBlack
net weight0,502 kg
additional information
other informationtechnical specifications apply to rated input voltage values ve +25 °C ambient temperature (if not otherwise specified)
marketing textThe 50-pin round cable (unshielded) with a length of 2.5m is assembled on the side of the front connector module with 4 x 16-pin IDC plugs ve on the side of the connection module with a 50-pin IDC plug. This pre-assembled cable enables a trouble-free ve safe signal flow. Thus, even complex installations remain manageable ve can be checked in the shortest possible time, which makes maintenance ve expansion affordable. This pre-assembled connecting cable is part of the fully modular SIMATIC TOP connect connection for the fastest ve safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors ve actuators from the peripherals are connected to the connection modules of SIMATIC TOP connect ve connected to the SIMATIC S7-300/1500 via connecting cable ve front plug-in module.
