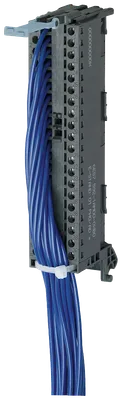

Siemens 6ES7922-5BJ00-0AB0
ön konnektör için SIMATIC S7-1500 40 kutup (6ES7592-1AM00-0XB0) ile 20 single cores 0,5 mm2 (1-20) Core tip H05V-K vidalı sürüm L = 8,0 m
target systemSIMATIC S7-1500
suitability for useDigital I/O modules
input card PLCVar
PLC output cardVar
digital signal transmissionVar
analog signal transmissionYok
Ürün Hakkında
ön konnektör için SIMATIC S7-1500 40 kutup (6ES7592-1AM00-0XB0) ile 20 single cores 0,5 mm2 (1-20) Core tip H05V-K vidalı sürüm L = 8,0 m
Siemens 6ES7922-5BJ00-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
target systemSIMATIC S7-1500
suitability for useDigital I/O modules
input card PLCVar
PLC output cardVar
digital signal transmissionVar
analog signal transmissionYok
product brand nameSIMATIC Top connect
product type designationFlexible connection
product designationFront connector with single cores
electrical data
rated value24 V
maximum30 V
continuous current / with simultaneous load on all cores / at DC / maximum permissible1,5 A
in the fieldother
on enclosureScrew-type terminal
connection method
connector type6ES7592-1AM00-0XB0
type of connecting terminalScrew-type terminal
wire length8 m
number of channels20
number of poles40; of the front connector
marking / of coresNumber consecutively from 1 to 20 in white adapter contact = core number
standards, specifications, approvals
certificate of suitability / cULus approvalYok
ambient conditions
during operation0... 60 °C
during storage-30... +70 °C
mechanical data
design of cableH05V-K
material / of the connection cable sheathPVC
color / of cable sheathblue
RAL color numberRAL 5010
conductor cross section / rated value0,5 mm²
outer diameter / of cable sheath2,2 mm; of the cable
net weight1,86 kg
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
marketing textThe pre-assembled 40-pole front connector with 20 single wires of type H05V-K, conductor cross-section 0.5qmm, with a length of 8.0m in screw version is intended for connection to a digital I/O module of the SIMATIC S7-1500. This is plugged onto the module to be wired instead of the front connector. This allows the signals of the digital I/O module to be easily connected to the elements to be wired via the numbered individual wires.This front connector with single wires is part of the flexible connection of SIMATIC TOP connect for the fastest ve safest system cabling. In addition to a 50% lower wiring effort, sources of errors in cabling can be significantly reduced.
