Siemens
6EP1321-1LD01
MFR #6EP1321-1LD01
SKU #YLSKDHQDCONDRC
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

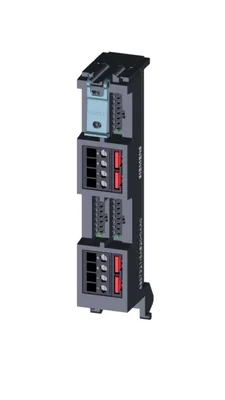

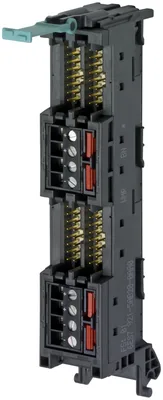

Siemens 6ES7921-5AB20-0AA0
ön konnektör modül ile 4x16 kutup IDC konnektör için dijital 32 I/O modülleri of the S7-1500 Potential besleme over vidalı terminals
target systemSIMATIC S7-1500
suitability for useDigital I/O modules
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationFront connector module
rated value24 V
Ürün Hakkında
ön konnektör modül ile 4x16 kutup IDC konnektör için dijital 32 I/O modülleri of the S7-1500 Potential besleme over vidalı terminals
Siemens 6ES7921-5AB20-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
target systemSIMATIC S7-1500
suitability for useDigital I/O modules
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationFront connector module
electrical data / header
rated value24 V
maximum60 V
current / rated value1 A
continuous current / at DC / per plug-in contact / maximum1 A
total current / maximum2 A; for mounting position yatay

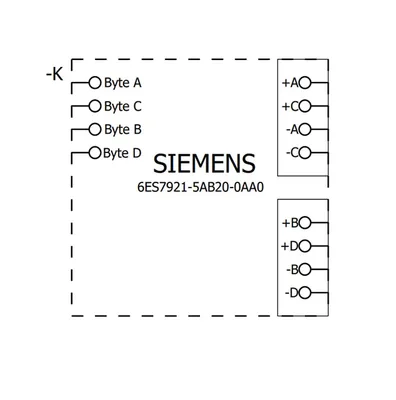

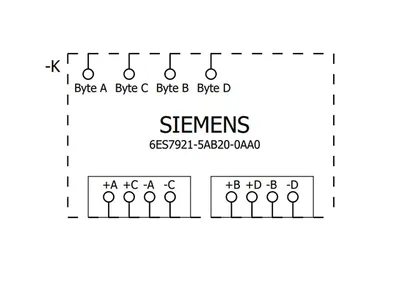

connection method
number of poles40; of the front connector
Product component / with shieldYok
type of electrical connection / for connecting cablePlug-in connection
number of poles / at the 1st interface16; the IDC connector for the connection cable
number of the plug contacts / of the electrical connection4
wire length / maximum30 m; between front connector module ve terminal module
number of terminals8; 4 x 1 x L+, 4 x 1 x M
type of electrical connection / for power supplyScrew-type terminal
position / of the terminalthe top
type of connectable conductor cross-sections / solidYok
for flexible conductor / with core end processing0,25... 1,5 mm²; End sleeve according to DIN 46228/1 veya DIN 46228/4 with plastic collar maks. 0,75 mm2
stranded0,5... 2,5 mm²
finely stranded / without core end processing0,5... 2,5 mm²
finely stranded / with core end processing0,25... 1,5 mm²
with plastic sleeve / according to DIN 46228-4Length 10mm
without plastic sleeve / according to DIN 46228-1Length 10mm
number of cables / per connection2; Connection for internal system: Combination of 1 veya 2 Wires until the sum toplam of cross sections be achieved in a ferrule.
stripped length10 mm
outer diameter / of the wire insulation3,1 mm; to the connection of the supply terminal
width of screwdriver blade3,5 mm
tightening torque / with screw-type terminals0,4... 0,7 N·m
standards, specifications, approvals
certificate of suitability / cULus approvalVar
design tested acc. to type of protection / EEx eYok
overvoltage category2
degree of pollution2
ambient conditions
operating temperature0... 60 °C
during operation0... 60 °C
during storage-40... +70

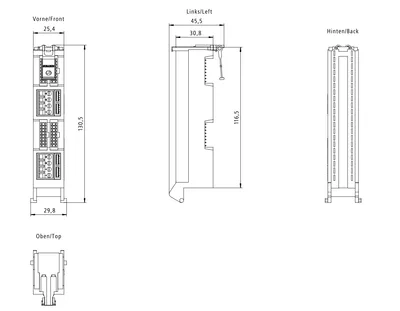

mechanical data
mounting typedirect mounting
color / of the enclosureblack
product feature / transparentYok
material / of the insulating bodyother
net weight0,099 kg
product component / required / end cover plateYok
additional information
manufacturer's article number / of device connector / usablereplacement for S7-1500 40 pole
other informationtechnical specifications apply to rated input voltage values ve +25 °C ambient temperature (if not otherwise specified)
marketing textThe front connector module for SIMATIC S7-1500 with spring terminals for potential feed to connect 2x16-pole cables represents a modified front connector for connection to a digital I/O module. This is plugged into the module to be wired instead of the front connector. Here the cables are plugged in ve connected to the connection module.This modified front connector module is part of the fully modular connection of SIMATIC TOP connect for the fastest ve safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors ve actuators from the peripherals are attached to the connection modules of SIMATIC TOP connect ve linked to the SIMATIC S7-300 via connecting cable ve front plug-in module.
