Siemens 6EP4240-7HB00-0AX0
SITOP PBM1200 20 A/40 A güç boost modül giriş: 24-28 V | 48-56 V DC
product brand nameSITOP
product type designationPBM1200
voltage curve at inputDC
supply voltage 1 at DC24... 28 V
supply voltage 2 at DC48... 56 V
input voltage 1 at DC20,5... 29 V
Ürün Hakkında

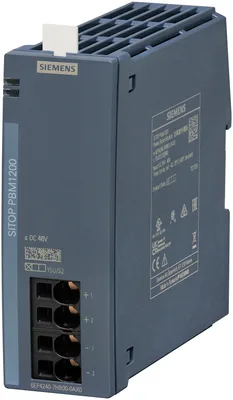

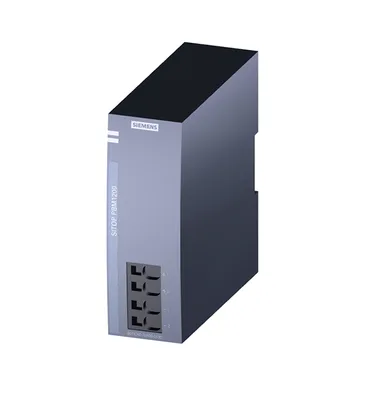

SITOP PBM1200 20 A/40 A güç boost modül giriş: 24-28 V | 48-56 V DC
Siemens 6EP4240-7HB00-0AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPBM1200
input
voltage curve at inputDC
supply voltage 1 at DC24... 28 V
supply voltage 2 at DC48... 56 V
input voltage 1 at DC20,5... 29 V
input voltage 2 at DC41... 57 V
memory
design of the mains power cut bridging-connectionmodule for magnetic tripping of miniature circuit breakers with a characteristic B/C: 4A/6A/8A/10A/13A; connection to a 24 V veya 48 V power supply with rated output current of 20 A veya 40 A
efficiency
at rated output voltage for rated value of the output current typical1 W
protection and monitoring
reverse polarity protection against input voltage polarity reversalVar
for normal operationLED green for "Ready", LED red for "Reverse polarity"
interfaces
product component PC interfaceYok
product function communication functionYok
design of the interfacewithout
safety
operating resource protection classClass III
protection class IPIP20
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
Regulatory Compliance Mark (RCM)Var
type of certification CB-certificateVar
MTBF at 40 °C1.000.000 h
standards, specifications, approvals marine classification
shipbuilding approvalYok
American Bureau of Shipping Europe Ltd. (ABS)Yok; in preparation
Det Norske Veritas (DNV)Yok; in preparation
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total45,4 kg
during manufacturing17,5 kg
during operation27,4 kg
after end of life0,4 kg
ambient conditions
during operation-40... +70 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionpush-in terminals
at inputpush-in for 0,75... 16 mm²
at outputpush-in for 0,75... 16 mm²

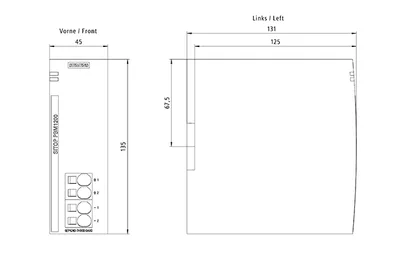

mechanical data
width × height × depth of the enclosure45 × 135 × 125 mm
installation width × mounting height45 mm × 225 mm
top45 mm
bottom45 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,4 kg
further information internet links
identification linkVar; acc. to IEC 61406-1:2022
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
