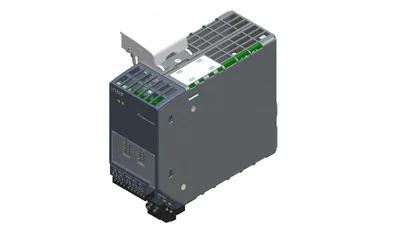

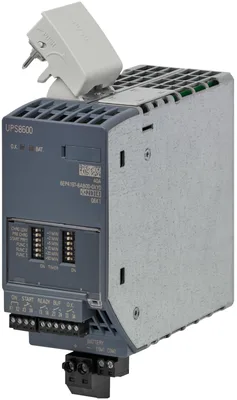

Siemens 6EP4197-8AB00-0XY0
SITOP UPS8600 UPS modül için PSU8600 nominal gerilim: DC 48 V buffer güç: 960 W charging güç: 120 W
product brand nameSITOP
product type designationUPS8600
type of current supply960 W
type of energy storageExternal battery module
in normal operation at DC rated value48 V
charging current1,25 A, 2,5 A
Ürün Hakkında
SITOP UPS8600 UPS modül için PSU8600 nominal gerilim: DC 48 V buffer güç: 960 W charging güç: 120 W
Siemens 6EP4197-8AB00-0XY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationUPS8600
type of current supply960 W
memory
type of energy storageExternal battery module
design of the mains power cut bridging-connectionBuffer time limit 1... 88 min. can be set with DIP switches veya until the connected battery modules are discharged
output
in normal operation at DC rated value48 V
property of the output short-circuit proofVar
charging current1,25 A, 2,5 A
type of signal at outputrelay contacts (NO contact, contact rating DC 60 V/0,3 A) for "sufficient buffer readiness", "buffer mode" ve "battery circuit fault"
efficiency
in case of operation on rechargeable battery typical99 %
in case of operation on rechargeable battery typical10 W
supplied active power typical960 W
protection and monitoring
reverse polarity protection against energy storage unit polarity reversalVar
display versionThree-color LED for operating state of module, three-color LED for status of battery circuit
for normal operationLED green for "buffer standby exist"
in buffering modeLED yellow for "buffered mode"
interfaces
product function communication functionVar
design of the interfaceEthernet/PROFINET via power supply unit PSU8600
safety
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
EAC approvalVar
type of certification CB-certificateVar
MTBF at 40 °C405.763 h
standards, specifications, approvals hazardous environments
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total292,2 kg
during manufacturing36,9 kg
during operation254,3 kg
after end of life0,68 kg
ambient conditions
during operation-25... +70 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionPlug-in terminals with screwed connection
for rechargeable battery module+, -: plug-in terminals her biri with 1 screw terminal for 0,2... 10 mm²
for data cableCOM1, COM2: 2 plug-in terminals her biri with a screw terminal for 0,2... 2,5 mm²
for auxiliary contactsX1, X2, X3, X3 (control contacts): plug-in terminal with one screw-type terminal her biri for 0,14... 1,5 mm²
for signaling contact13, 14, 23, 24, 33, 34 (signaling contacts): plug-in terminal with one screw-type terminal her biri for 0,14... 1,5 mm²
suitability for interaction modular systemVar
type of connection to system componentsVia dahili connector
number of expansion modules maximum2
mechanical data

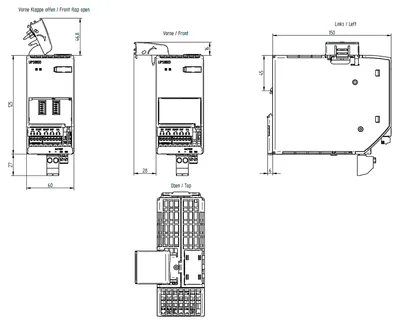

width × height × depth of the enclosure60 × 125 × 150 mm
installation width × mounting height60 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,9 kg
accessories
electrical accessoriesBattery module BAT8600
mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
