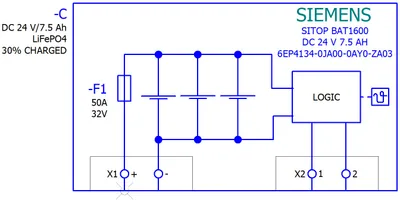

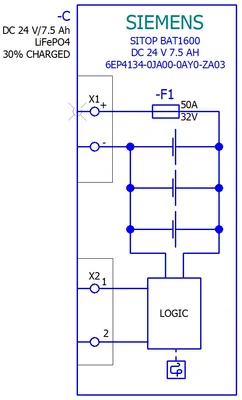

Siemens 6EP4134-0JA00-0AY0-ZA03
SITOP BAT1600 24 V DC 7,5 Ah LiFePO4 lithium battery için SITOP UPS1600 A03= 30% charge için hava cargo
product brand nameSITOP
product type designationBAT1600
product designation7,5 Ah Li - 30% SOC
product versionExtension module/battery module
at -10 °C recommended28,8 V
at 0 °C recommended28,8 V
Ürün Hakkında
SITOP BAT1600 24 V DC 7,5 Ah LiFePO4 lithium battery için SITOP UPS1600 A03= 30% charge için hava cargo
Siemens 6EP4134-0JA00-0AY0-ZA03
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationBAT1600
product designation7,5 Ah Li - 30% SOC
type of batterybakım gerektirmez LiFePO4 rechargeable battery
product versionExtension module/battery module
electrical data
at -10 °C recommended28,8 V
at 0 °C recommended28,8 V
at 10 °C recommended28,8 V
at 20 °C recommended28,8 V
at 30 °C recommended28,8 V
at 40 °C recommended28,8 V
at 50 °C recommended28,8 V
output
battery capacity7,5 A·h
output current rated value40 A
output current in buffering mode maximum40 A
peak current120 A; for 30 ms
charging current maximum3 A
output voltage at DC rated value24 V
interfaces
communication functionVar
protection and monitoring
design of short-circuit protection50A / 32V Maxi flat fuse
display version for normal operationThree-color: green = Buffer ready; yellow = Buffer endangered; red = Buffer not possible
safety
operating resource protection classClass III
protection class IPIP20
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 61010-1, UL61010-2-201, CSA C22.2 Yok. 61010-1, CSA C22.2 NO 61010-2-201), File E143289
UKCA markingVar
type of certification CB-certificateVar
standards, specifications, approvals hazardous environments
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)in preparation
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total43,4 kg
during manufacturing41 kg
during operation0,202 kg
after end of life0,781 kg
ambient conditions
ambient conditionFor storage, mounting ve operation of batteries, the relevant DIN/VDE regulations veya country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed.
during operation-10... +50 °C
during transport-30... +70 °C
during storage-20... +35 °C
relative temporary capacity loss at 20 °C in a month typical1 %
service life
typicalcapacity falls to 80 % of original capacity (according to EUROBAT)
at 20 °C typical11 a
at 30 °C typical11 a
at 40 °C typical8 a
at 50 °C typical6 a
at 60 °C typical2 a
noteAlong with the storage ve operating temperature, other factors such as the duration of the storage period ve the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, ve within the temperature range 0 to +20 °C.
connection method
type of electrical connectionscrew terminal
for UPS module1 screw terminal her biri for 0,5... 16 mm² for + BAT ve - BAT
for control circuit and status message1 screw terminal her biri for 0,2... 2,5 mm²
mechanical data
width × height × depth of the enclosure238 × 156 × 129 mm
installation width × mounting height238 mm × 256 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodsnaps onto DIN rail EN 60715 35x15 veya wall mounting with accessories wall mounting set 6EP4990-0MK00-0XU0
DIN-rail mountingVar
S7 rail mountingVar
wall mountingVar
net weight4 kg
number of cells3
accessories
product component included2x Maxi Fuse 50 A/32 V
mechanical accessoriesBAT1600 wall mounting kit 6EP4990-0MK00-0XU0
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
