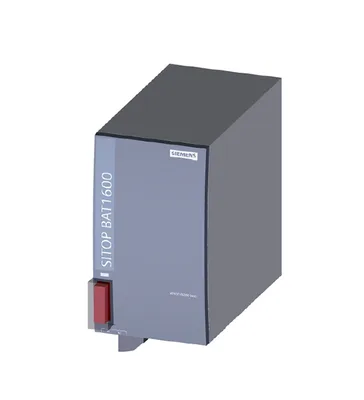

Siemens 6EP4133-0GD00-0AY0
SITOP BAT1600 EX 24 V DC 3,2 Ah Pb battery modül ile maintenance- free closed lead-acid battery için SITOP UPS1600
product brand nameSITOP
product type designationBAT1600
product designation3,2 Ah Pb
type of batterybakım gerektirmez lead-acid batteries
product versionExtension module/battery module
at -10 °C recommended28 V
Ürün Hakkında
SITOP BAT1600 EX 24 V DC 3,2 Ah Pb battery modül ile maintenance- free closed lead-acid battery için SITOP UPS1600
Siemens 6EP4133-0GD00-0AY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationBAT1600
product designation3,2 Ah Pb
type of batterybakım gerektirmez lead-acid batteries
product versionExtension module/battery module
electrical data
at -10 °C recommended28 V
at 0 °C recommended28 V
at 10 °C recommended27,8 V
at 20 °C recommended27,3 V
at 30 °C recommended26,8 V
at 40 °C recommended26,6 V
at 50 °C recommended26,3 V
output
battery capacity3,2 A·h
output current rated value20 A
output current in buffering mode maximum20 A
peak current60 A; for 30 ms
charging current maximum0,8 A
output voltage at DC rated value24 V
interfaces
communication functionVar
protection and monitoring

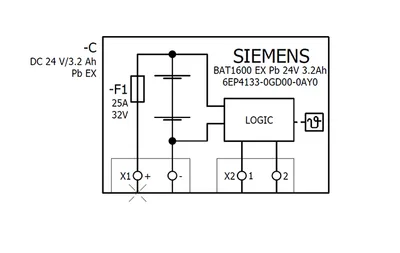

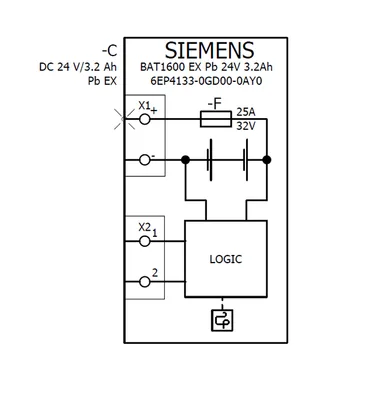

design of short-circuit protection25A / 32V Maxi flat fuse
design of the overload protectionValve control
display version for normal operationThree-color: green = Buffer ready; yellow = Buffer endangered; red = Buffer not possible
safety
operating resource protection classClass III
protection class IPIP20
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 61010-1, UL61010-2-201, CSA C22.2 Yok. 61010-1, CSA C22.2 NO 61010-2-201), File E143289
UKCA markingVar
type of certification CB-certificateVar
standards, specifications, approvals hazardous environments
IECExVar; IECEx Ex ec IIC T4 Gc
ATEXVar; ATEX (EX) II 3G ex ec IIC T4 Gc
ULhazloc approvalVar
CCC for hazardous zone according to GB standardVar
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)in preparation
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total14,787 kg
during manufacturing9,373 kg
during operation3,733 kg
after end of life0,494 kg
ambient conditions
ambient conditionFor storage, mounting ve operation of lead-acid batteries, the relevant DIN/VDE regulations veya country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. You must ensure that the battery site is sufficiently ventilated. Possible sources of ignition must be least 50 cm away.
during operation-15... +50 °C
during transport-20... +50 °C
during storage-20... +40 °C
relative temporary capacity loss at 20 °C in a month typical3 %
service life
typicalcapacity falls to 80 % of original capacity (according to EUROBAT)
at 20 °C typical4 a
at 30 °C typical2 a
at 40 °C typical1 a
at 50 °C typical0,5 a
noteAlong with the storage ve operating temperature, other factors such as the duration of the storage period ve the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, ve within the temperature range 0 to +20 °C.
connection method
type of electrical connectionscrew terminal
for UPS module1 screw terminal her biri for 0,5... 10 mm² for + BAT ve - BAT
for control circuit and status message1 screw terminal her biri for 0,2... 2,5 mm²
mechanical data

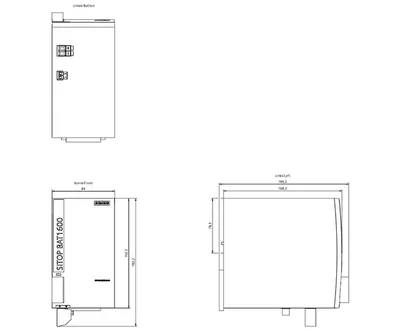

width × height × depth of the enclosure89 × 156 × 169 mm
installation width × mounting height89 mm × 256 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodsnaps onto DIN rail EN 60715 35x15 veya wall mounting with accessories wall mounting set 6EP4990-0MK00-0XU0
DIN-rail mountingVar
S7 rail mountingVar
wall mountingYok
net weight3,8 kg
number of cells2
accessories
product component included2x Maxi Fuse 25 A/32 V
mechanical accessoriesBAT1600 wall mounting kit 6EP4990-0MK00-0XU0
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
