Siemens 6EP4132-0GB00-0AY0
SITOP UPS1100 battery modül ile maintenance- free sealed pure lead-acid için SITOP DC UPS modülleri 24 V DC 2,5 Ah
product brand nameSITOP
product type designationUPS1100
product designationBattery module 2,5 Ah
type of batterybakım gerektirmez pure lead batteries
product versionExtension module/battery module
at -10 °C recommended28 V
Ürün Hakkında

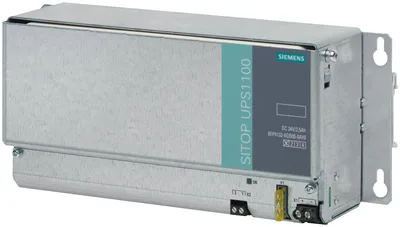

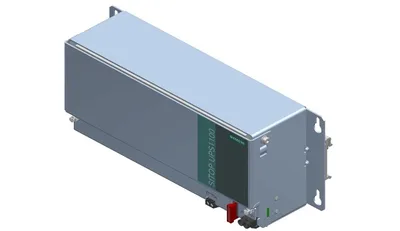

SITOP UPS1100 battery modül ile maintenance- free sealed pure lead-acid için SITOP DC UPS modülleri 24 V DC 2,5 Ah
Siemens 6EP4132-0GB00-0AY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationUPS1100
product designationBattery module 2,5 Ah
type of batterybakım gerektirmez pure lead batteries
product versionExtension module/battery module
electrical data
at -10 °C recommended28 V
at 0 °C recommended28 V
at 10 °C recommended27,8 V
at 20 °C recommended27,3 V
at 30 °C recommended26,8 V
at 40 °C recommended26,6 V
at 50 °C recommended26,3 V
at 60 °C recommended26 V
output
battery capacity2,5 A·h
output current rated value20 A
output current in buffering mode maximum20 A
peak current60 A; for 30 ms
charging current maximum5 A
output voltage at DC rated value24 V
interfaces
communication functionVar
protection and monitoring

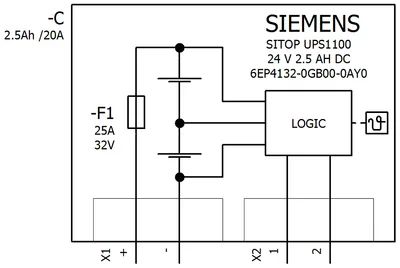

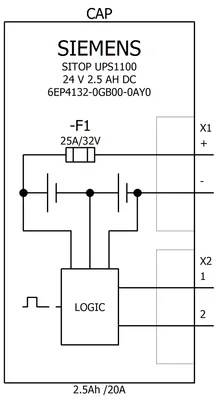

design of short-circuit protectionBattery fuse 25 A/32 V (solid-state circuitry blade-type fuse + support)
design of the overload protectionValve control
display version for normal operationLED green: Battery OK; LED flashing green: Error veya warning; OFF: Yok communication
safety
operating resource protection classClass III
protection class IPIP20
standards, specifications, approvals
CE markingVar
UL onayıVar; cURus-Recognized (UL 1778, CSA C22.2 Yok. 107,1), File E219627
EAC approvalVar
standards, specifications, approvals hazardous environments
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total13,68 kg
during manufacturing9,127 kg
during operation2,917 kg
after end of life0,481 kg
ambient conditions
ambient conditionFor storage, mounting ve operation of lead-acid batteries, the relevant DIN/VDE regulations veya country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed. You must ensure that the battery site is sufficiently ventilated. Possible sources of ignition must be least 50 cm away.
during operation-40... +60 °C
during transport-40... +60 °C
during storage-40... +60 °C
relative temporary capacity loss at 20 °C in a month typical3 %
service life
typicalcapacity falls to 80 % of original capacity (according to EUROBAT)
at 20 °C typical10 a
at 30 °C typical7 a
at 40 °C typical3 a
at 50 °C typical1,5 a
at 60 °C typical1 a
noteAlong with the storage ve operating temperature, other factors such as the duration of the storage period ve the charge status during storage have a decisive influence on the possible useful life. Batteries should therefore be stored as briefly as possible, always fully charged, ve within the temperature range 0 to +20 °C.
connection method
type of electrical connectionscrew terminal
for UPS module1 screw terminal her biri for 0,2... 6 mm² for + BAT ve - BAT
for control circuit and status message1 screw terminal her biri for 0,14... 4 mm²

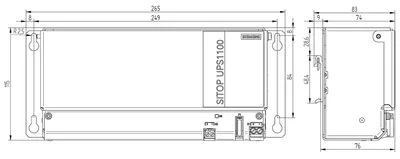

mechanical data
width × height × depth of the enclosure265 × 115 × 76 mm
installation width × mounting height265 mm × 130 mm
top15 mm
bottom0 mm
left0 mm
right0 mm
fastening methodsnaps onto DIN rail EN 60715 35x7.5/15 veya keyhole mounting for hooking in to M4 screws
DIN-rail mountingVar
S7 rail mountingYok
wall mountingVar
net weight3,7 kg
number of cells12
accessories
product component includedAccessories pack with solid-state circuitry fuse 25 A
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
