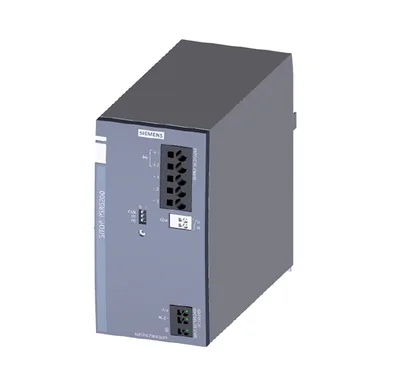

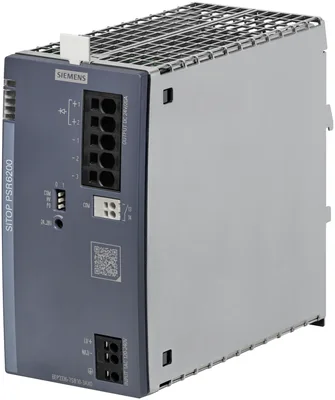

Siemens 6EP3336-7SB10-3AX0
SITOP PSR6200 24 V/20 A stabilized güç kaynağı giriş: 120 - 240 V AC (110 - 240 V DC) çıkış: 24 V DC/20 A ile diagnostic arayüz ve dahili redundancy
product brand nameSITOP
type of current supply24 V/20 A
type of the power supply network1-phase AC veya DC
phase number1
voltage curve at inputAC/DC
minimum rated value120 V
Ürün Hakkında
SITOP PSR6200 24 V/20 A stabilized güç kaynağı giriş: 120 - 240 V AC (110 - 240 V DC) çıkış: 24 V DC/20 A ile diagnostic arayüz ve dahili redundancy
Siemens 6EP3336-7SB10-3AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
type of current supply24 V/20 A
input
type of the power supply network1-phase AC veya DC
phase number1
voltage curve at inputAC/DC
minimum rated value120 V
maximum rated value240 V
initial value85 V
full-scale value264 V
supply voltage at DC110... 240 V
input voltage at DC85... 275 V
at 50 Hz240 V
at 60 Hz120 V
line frequency50/60 Hz
line frequency47... 63 Hz
wide range inputVar
overvoltage overload capability300 V AC for 30 s
buffering time for rated value of the output current in the event of power failure minimum25 ms
operating condition of the mains bufferingVin = 240 V
at rated input voltage 120 V4,4 A
at rated input voltage 240 V2,2 A
current limitation of inrush current at 25 °C maximum12 A
fuse protection type in the feederCircuit breaker from 6 A characteristic B to 16 A characteristic C veya circuit breaker 3RV2011-1HA10 (setting 8A) veya 3RV2711-1HD10 (UL 489)
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
number of outputs1
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableVar; via potentiometer
adjustable output voltage24... 28 V; maks. 480 W (576 W up to 45°C)
relative overall tolerance of the voltage3 %
on slow fluctuation of input voltage0,2 %
on slow fluctuation of ohm loading0,2 %
maximum80 mV
typical50 mV
maximum100 mV
typical60 mV
display version for normal operationGreen LED for 24 V OK
type of signal at outputElectronic contact (NO contact, contact rating 30 V DC/0,1 A) for DC O.K. veya diagnostic interface
behavior of the output voltage when switching onOvershoot of Vout yaklaşık 3 %
response delay maximum0,5 s
typical100 ms
rated value20 A
rated range0... 20 A; 24 A up to +45°C; +60... +70 °C: Derating 3%/K
supplied active power typical480 W
on short-circuiting during the start-up typical30 A
at short-circuit during operation typical30 A
parallel switching of outputscan be set with DIP switch
bridging of equipmentVar; switchable characteristic
number of parallel-switched equipment resources for increasing the power2
efficiency
efficiency in percent95,3 %
at rated output voltage for rated value of the output current typical23 W
during no-load operation maximum2,2 W
closed-loop control
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical3 %
load step 10 to 90% typical0,5 ms
load step 90 to 10% typical0,5 ms
maximum1 ms
protection and monitoring
design of the overvoltage protection< 32 V
property of the output short-circuit proofVar
design of short-circuit protectionShutdown ve periodic restart attempts
typical30 A
in normal operationoverload capability 150 % Iout rated up to 5 s/min
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum3,5 mA
protection class IPIP20
EMC
for emitted interferenceEN 55032 Class B
for mains harmonics limitationEN 61000-3-2
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
UKCA markingVar
EAC approvalVar
Regulatory Compliance Mark (RCM)Var
NEC Class 2Yok
SEMI F47Var
CB-certificateVar
MTBF at 40 °C615.000 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
UKEXYok
CCC for hazardous zone according to GB standardYok
FM registrationYok
standards, specifications, approvals marine classification
French marine classification society (BV)Yok
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total614,4 kg
during manufacturing33,9 kg
during operation632,6 kg
after end of life0,56 kg
ambient conditions
during operation-30... +70 °C; with natural convection a monotonically increasing start-up from -25 °C, safe start-up from -40 °C
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionpush-in terminals
at inputL1/+, L2/N/-, PE: push-in for 0,5... 4 mm² single-core/finely stranded
at output+1, +2, -1, -2, -3: push-in for 0,5... 6 mm²
for auxiliary contacts13, 14 (alarm signal): 1 push-in terminal her biri for 0,2... 1,5 mm²
mechanical data

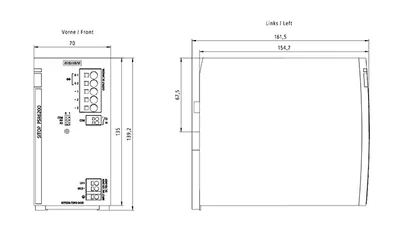

width × height × depth of the enclosure70 × 135 × 155 mm
installation width × mounting height70 mm × 225 mm
top45 mm
bottom45 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight1,5 kg
accessories
mechanical accessoriesIdentification labels SIMATIC ET 200SP 6ES7193-6LF30-0AW0
further information internet links
identification linkVar; acc. to IEC 61406-1:2022
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing33,9 kg
global warming potential [CO2 eq] / during operation632,6 kg
global warming potential [CO2 eq] / after end of life0,56 kg
global warming potential [CO2 eq] / total614,4 kg
