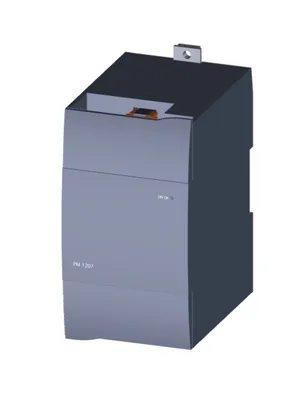

Siemens 6EP3333-4SB00-3AX0
SIMATIC S7-1200 güç modül PM 1207 24 V/5 A stabilized güç kaynağı giriş: 120 - 240 V AC/DC çıkış: 24 V DC/5 A ile diagnostic arayüz
product brand nameSIMATIC
product type designationPM 1207
product designationS7-1200 Power Module
type of current supply24 V/5 A
type of the power supply network1-phase AC veya DC
phase number1
Ürün Hakkında
SIMATIC S7-1200 güç modül PM 1207 24 V/5 A stabilized güç kaynağı giriş: 120 - 240 V AC/DC çıkış: 24 V DC/5 A ile diagnostic arayüz
Siemens 6EP3333-4SB00-3AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSIMATIC
product type designationPM 1207
product designationS7-1200 Power Module
type of current supply24 V/5 A
input
type of the power supply network1-phase AC veya DC
phase number1
voltage curve at inputAC/DC
minimum rated value120 V
maximum rated value240 V
initial value85 V
full-scale value264 V
supply voltage at DC120... 240 V
input voltage at DC99... 275 V
at 50 Hz240 V
at 60 Hz120 V
line frequency50/60 Hz
line frequency47... 63 Hz
wide range inputVar
overvoltage overload capability300 V AC for 30 s
buffering time for rated value of the output current in the event of power failure minimum20 ms
operating condition of the mains bufferingVin = 120/240 V
at rated input voltage 120 V1,9 A
at rated input voltage 240 V1,1 A
at rated input voltage 120 V AC1,8 A
at rated input voltage 120 V DC1,1 A
at rated input voltage 240 V AC1 A
at rated input voltage 240 V DC0,6 A
current limitation of inrush current at 25 °C maximum45 A
I2t value maximum1,8 A²·s
fuse protection typeinternal
fuse protection type in the feederrecommended miniature circuit breaker: 16 A characteristic B/C for UL489-listed/Cat. Div. Q
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
number of outputs1
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableYok
relative overall tolerance of the voltage1,5 %
on slow fluctuation of input voltage0,1 %
on slow fluctuation of ohm loading0,2 %
maximum150 mV
maximum240 mV
display version for normal operationGreen LED for 24 V OK
behavior of the output voltage when switching onOvershoot of Vout < 1 %
response delay maximum2 s
typical220 ms
rated value5 A
rated range0... 5 A; 6 A up to +45°C; +60... +70 °C: Derating 3%/K
supplied active power typical120 W
on short-circuiting during the start-up typical6 A
at short-circuit during operation typical6 A
bridging of equipmentVar
number of parallel-switched equipment resources for increasing the power2
efficiency
efficiency in percent88 %
at rated output voltage for rated value of the output current typical15 W
during no-load operation maximum3 W
closed-loop control
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical1,5 %
load step 10 to 90% typical1 ms
load step 90 to 10% typical1 ms
maximum1 ms
protection and monitoring
design of the overvoltage protection< 33 V
property of the output short-circuit proofVar
design of short-circuit protectionConstant current characteristic
response value current limitation5,5 A
interfaces
product function communication functionVar
design of the interfaceunidirectional, can only send data to the higher-level control ve analysis system
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum3,5 mA
protection class IPIP20
EMC
for emitted interferenceEN 55032
for mains harmonics limitationEN 61000-3-2
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-listed (UL 61010, CSA C22.2 Yok. 107,1), File E143289
UKCA markingVar
EAC approvalVar
Regulatory Compliance Mark (RCM)Var
CB-certificateVar
standards, specifications, approvals hazardous environments
IECExYok
ULhazloc approvalYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total419,2 kg
during manufacturing8,5 kg
during operation410,3 kg
after end of life0,31 kg
Siemens eco profile (SEP)Siemens EcoTech
ambient conditions
during operation-25... +70 °C; with natural convection
in horizontal mounting position during operation-25... +70 °C
in vertical mounting position during operation-25... +40 °C
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

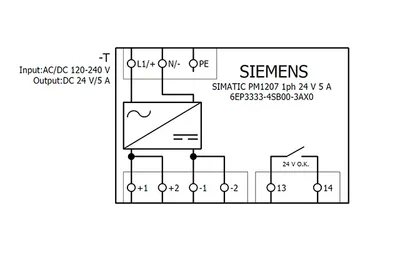

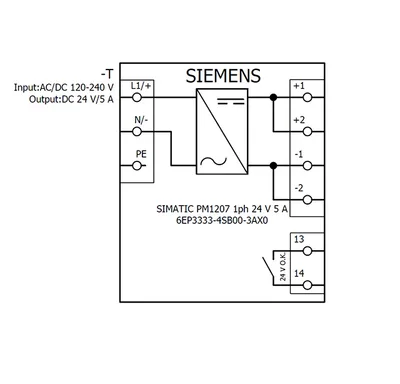

connection method
type of electrical connectionpush-in terminal block can be removed
at inputL, N, PE: 1 push-in terminal can be removed as terminal block for 0,5... 2,5 mm²
at outputL+, M: 2 push-in terminals can be removed as terminal block for 0,5... 2,5 mm²
removable terminal at inputVar
removable terminal at outputVar
design of the interface for communication13, 14 (contacts): 1 push-in terminal can be removed as terminal block for 0,2... 1,5 mm²

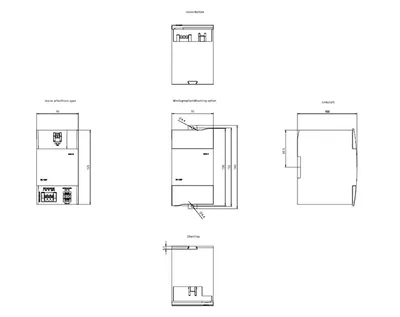

mechanical data
width × height × depth of the enclosure70 × 125 × 100 mm
installation width × mounting height70 mm × 175 mm
top25 mm
bottom25 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15, wall mounting
DIN-rail mountingVar
S7 rail mountingYok
wall mountingVar
housing can be lined upVar
net weight0,45 kg
further information internet links
identification linkVar; acc. to IEC 61406-1:2022
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing8,5 kg
global warming potential [CO2 eq] / during operation410,3 kg
global warming potential [CO2 eq] / after end of life0,31 kg
global warming potential [CO2 eq] / total419,2 kg
