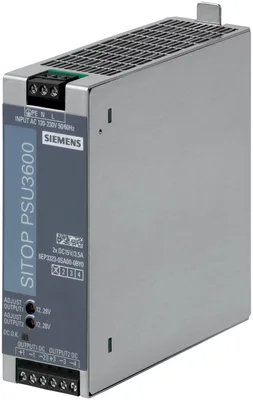

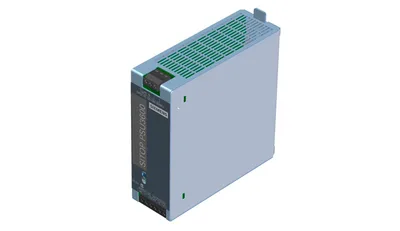

Siemens 6EP3323-0SA00-0BY0
SITOP PSU3600 dual stabilized güç kaynağı giriş: 120-230 V AC çıkış: 15 V/3,5 A 2x DC two potential-free çıkış
product brand nameSITOP
product type designationPSU3600
product designationPower supply SITOP power
type of current supply2 x 15 V/3,5 A
type of the power supply network1-phase AC veya DC
phase number1
Ürün Hakkında
SITOP PSU3600 dual stabilized güç kaynağı giriş: 120-230 V AC çıkış: 15 V/3,5 A 2x DC two potential-free çıkış
Siemens 6EP3323-0SA00-0BY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSU3600
product designationPower supply SITOP power
type of current supply2 x 15 V/3,5 A
input
type of the power supply network1-phase AC veya DC
phase number1
voltage curve at inputAC/DC
minimum rated value120 V
maximum rated value230 V
initial value85 V
full-scale value264 V
supply voltage at ACDerating < 110 V AC/DC: output power maks. 100 W
input voltage at DC88... 250 V
at 50 Hz230 V
at 60 Hz120 V
line frequency50/60 Hz
line frequency47... 63 Hz
wide range inputVar
buffering time for rated value of the output current in the event of power failure minimum10 ms
operating condition of the mains bufferingVin = 120 V, 40 ms Vin = 187 V
at rated input voltage 110 V1,3 A
at rated input voltage 120 V2,2 A
at rated input voltage 220 V0,7 A
at rated input voltage 230 V1,3 A
current limitation of inrush current at 25 °C maximum35 A
I2t value maximum1 A²·s
fuse protection typeT 3,15 A (not accessible)
fuse protection type in the feederRecommended miniature circuit breaker: 6-10 A characteristic C
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar

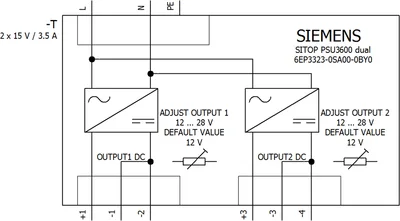

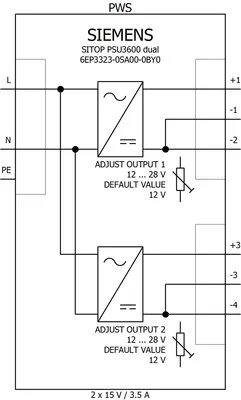

number of outputs2
output voltage at DC rated value15 V
formula for output voltage2 x 15 V DC
at output 1 at DC rated value15 V
at output 2 at DC rated value15 V
at output 1 at DC15 V
output voltage adjustableVar; via potentiometer per output
adjustable output voltage12... 28 V
relative overall tolerance of the voltage1 %
on slow fluctuation of input voltage0,1 %
on slow fluctuation of ohm loading1 %
maximum50 mV
maximum150 mV
display version for normal operationGreen LED grün for Vout >10 V (summation display)
type of signal at output-
behavior of the output voltage when switching onOvershoot of Vout < 1 %
response delay maximum0,5 s
rated value3,5 A
at output 1 rated value3,5 A
at output 2 rated value3,5 A
rated range0... 3,5 A; Output power maks. 60 W per output
supplied active power typical105 W
bridging of equipmentVar
number of parallel-switched equipment resources for increasing the power2
efficiency
efficiency in percent88 %
at rated output voltage for rated value of the output current typical18 W
protection and monitoring
design of the overvoltage protection≤ 35 V
property of the output short-circuit proofVar
design of short-circuit protectionElectronic shutdown, automatic restart
response value current limitation5 A
design of the current limitationdepending on the voltage setting
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum3,5 mA
protection class IPIP20
EMC
for emitted interferenceEN 55022 Class B
for mains harmonics limitationEN 61000-3-2
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-listed (UL 508, CSA C22.2 Yok. 107,1), file E197259; outputs NEC Class 2 acc. to UL 1310
EAC approvalVar
Regulatory Compliance Mark (RCM)Var
NEC Class 2Var; according to UL1310
CB-certificateYok
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalYok
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Lloyds Register of Shipping (LRS)Yok
ambient conditions
during operation-25... +70 °C; Derating > 60°C: 2%/°K
during transport-40... +70 °C
during storage-40... +70 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionscrew terminal
at inputL1, N, PE: 1 screw terminal her biri for 0,5... 2,5 mm² single-core/finely stranded
at output+: 1 screw terminal per output for 0,5... 2,5 mm²; -: 2 screw terminals per output for 0,5... 2,5 mm²
for auxiliary contacts-
mechanical data

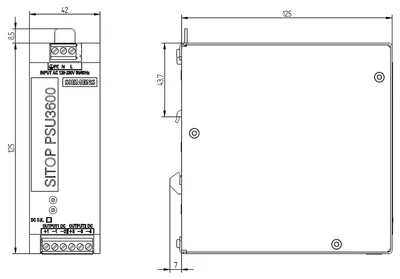

width × height × depth of the enclosure42 × 125 × 125 mm
installation width × mounting height42 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,55 kg
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
