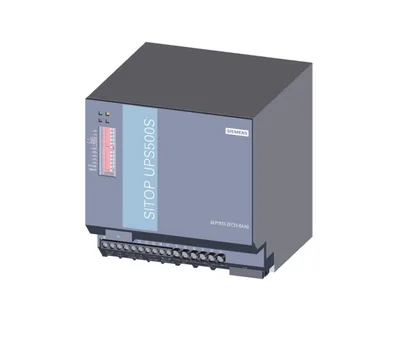

Siemens 6EP1933-2EC51-8AA0
SITOP UPS500S EX maintenance-free uninterruptible güç kaynağı ile USB arayüz temel cihaz 5 kWs giriş: 24 V DC çıkış: 24 V DC/15 A koruma sınıfı IP20
product brand nameSITOP
product type designationUPS500S
type of current supplyBasic unit 5 kWs
voltage curve at inputDC
supply voltage at DC rated value24 V
input voltage at DC22... 29 V
Ürün Hakkında
SITOP UPS500S EX maintenance-free uninterruptible güç kaynağı ile USB arayüz temel cihaz 5 kWs giriş: 24 V DC çıkış: 24 V DC/15 A koruma sınıfı IP20
Siemens 6EP1933-2EC51-8AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationUPS500S
type of current supplyBasic unit 5 kWs
input
voltage curve at inputDC
supply voltage at DC rated value24 V
input voltage at DC22... 29 V
adjustable response value voltage for buffer connection preset22,5 V
adjustable response value voltage for buffer connection22... 25,5 V; Adjustable in 0,5 V increments
input current at rated input voltage 24 V rated value15,2 A; + yaklaşık 2,3 A with empty energy storage (capacitor)
memory
type of energy storagewith capacitors
product function DC-UPS modularly expandableVar
design of the mains power cut bridging-connection15 A for 9 s veya 10 A for 15 s veya 5 A for 31 s veya 2 A for 76 s; longer buffering times with expansion modules
buffering time in the event of power failure0,15 min
energy content of energy storage5 kW.s
output
in normal operation at DC rated value24 V
in buffering mode at DC rated value24 V
formula for output voltage24 V ± 3 %
startup delay time typical0,6 s
voltage increase time of the output voltage typical25 ms
output voltage in buffering mode at DC24... 24,7 V
rated value15 A
in normal operation0... 15 A
in buffering mode0... 15 A
peak current25 A
property of the output short-circuit proofVar
charging current1 A, 2 A
efficiency
at rated output voltage for rated value of the output current typical97,5 %
at rated output voltage for rated value of the output current typical9 W
supplied active power typical360 W
protection and monitoring
reverse polarity protection against energy storage unit polarity reversalVar
reverse polarity protection against input voltage polarity reversalVar
for normal operationNormal operation: LED green (OK), floating changeover contact "OK/Bat" to setting "OK" ("OK" means: Voltage of the supplying power supply unit is greater than cut-in threshold set the DC UPS module); lack of buffer standby: LED red (ALARM), floating changeover contact "ALARM/BAT" to setting "ALARM"; energy storage > 85%: LED green (BAT > 85%), floating NO contact "BAT > 85" closed; permissible contact current capacity: DC 60 V/1 A veya AC 30 V /1 A
in buffering modeBuffered mode: LED yellow (BAT), floating changeover contact "OK/BAT" to setting "BAT"; Prewarning buffer end after expiry of 80% of the available buffer time: LED red (ALARM), floating changeover contact "ALARM/BAT" to setting "ALARM"; Energy storage > 85%: LED green (BAT > 85%), floating NO contact "BAT > 85" closed
interfaces
product component PC interfaceVar
product function communication functionYok
design of the interfaceUSB
safety
galvanic isolation between input and outputYok
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar
UKCA markingVar
MTBF at 40 °C459.137 h
standards, specifications, approvals hazardous environments
IECExVar
ATEXVar; ATEX (Ex) II 3G Ex ec nC IIC T4 Gc
CCC for hazardous zone according to GB standardVar
standards, specifications, approvals marine classification
shipbuilding approvalYok
American Bureau of Shipping Europe Ltd. (ABS)Yok
Det Norske Veritas (DNV)Yok; in preparation
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total270,3 kg
during manufacturing41 kg
during operation228,2 kg
after end of life0,76 kg
ambient conditions
during operation0... 60 °C; with natural convection
during transport-40... +70 °C
during storage-40... +70 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionscrew terminal
at input24 V DC: 2 screw terminals for 1... 4 mm²/17... 11 AWG
at output24 V DC: 4 screw terminals for 1... 4 mm²/17... 11 AWG
for control circuit and status message10 screw terminals for 0,5... 2,5 mm²/20... 13 AWG
mechanical data

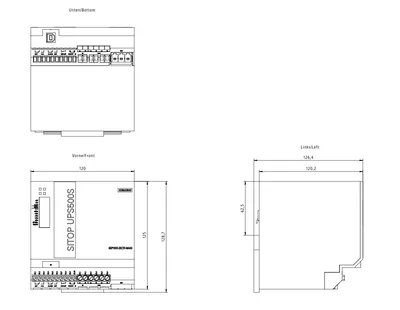

width × height × depth of the enclosure120 × 125 × 125 mm
installation width × mounting height120 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight1 kg
accessories
electrical accessoriesExtension module SITOP UPS501S
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Aksesuarlar 2
Siemens 6EP1933-2EC51-8AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6EP1935-5PG01 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates |
