Siemens 6EP1931-2EC31 için nasıl fiyat teklifi alabilirim?

Siemens 6EP1931-2EC31 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B03136DA ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6EP1931-2EC31 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6EP1931-2EC31 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6EP1931-2EC31 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

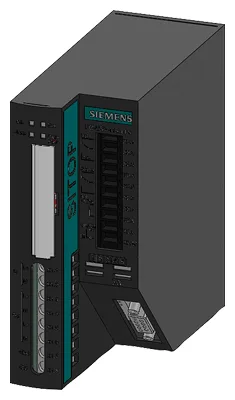

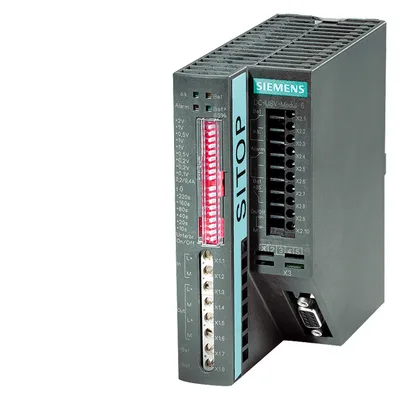

Siemens 6EP1931-2EC31

SITOP DC UPS modül 24 V/15 A uninterruptible güç kaynağı ile serial arayüz giriş: 24 V DC/16 A çıkış: 24 V DC/15 A

SiemensMFR # 6EP1931-2EC31SKU # CEY-8EF3B03136DA

product brand nameSITOP

product type designationDC UPS

type of current supplyDC UPS 24 V/15 A

voltage curve at inputDC

supply voltage at DC rated value24 V

input voltage at DC22... 29 V

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SITOP DC UPS modül 24 V/15 A uninterruptible güç kaynağı ile serial arayüz giriş: 24 V DC/16 A çıkış: 24 V DC/15 A

Siemens 6EP1931-2EC31

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSITOP

product type designationDC UPS

type of current supplyDC UPS 24 V/15 A

input

voltage curve at inputDC

supply voltage at DC rated value24 V

input voltage at DC22... 29 V

adjustable response value voltage for buffer connection preset22,5 V

adjustable response value voltage for buffer connection22... 25,5 V; Adjustable in 0,5 V increments

input current at rated input voltage 24 V rated value15 A; + yaklaşık 1 A with empty battery

memory

type of energy storagewith batteries

product function DC-UPS modularly expandableVar

design of the mains power cut bridging-connectionDependent on connected battery ve load current, see selection table battery module ve mains buffering times as well as the relevant important information notes!

output

in normal operation at DC rated value24 V

in buffering mode at DC rated value24 V

formula for output voltageVin - yaklaşık 0,5 V

startup delay time typical1 s

voltage increase time of the output voltage typical60 ms

output voltage in buffering mode at DC19... 28,5 V

rated value15 A

in normal operation0... 15 A

in buffering mode0... 15 A

peak current15,7 A

property of the output short-circuit proofVar

charging current0,35 A, 0,7 A

efficiency

at rated output voltage for rated value of the output current typical96,2 %

in case of operation on rechargeable battery typical96 %

at rated output voltage for rated value of the output current typical14 W

in case of operation on rechargeable battery typical15 W

supplied active power typical360 W

protection and monitoring

reverse polarity protection against energy storage unit polarity reversalVar

reverse polarity protection against input voltage polarity reversalVar

for normal operationNormal operation: LED green (OK), floating changeover contact "Bat/OK" to setting "OK" ("OK" means: Voltage of the supplying power supply unit is greater than cut-in threshold set the DC UPS module); Lack of buffer standby: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Battery replacement required: LED red (alarm) flashing with yaklaşık 0,25 Hz, floating changeover contact "Alarm/Bat" switching with yaklaşık 0,25 Hz; Energy storage > 85%: LED green (Bat > 85%), floating NOcontact "Bat > 85" closed; Permissible contact current capacity: DC 60 V/1 A veya AC 30 V /1 A

in buffering modeBuffered mode: LED yellow (Bat), floating changeover contact "OK/Bat" to setting "Bat"; Prewarning battery voltage < 20,4 VDC: LED red (alarm), floating changeover contact "Alarm/Bat" to setting "Alarm"; Energy storage > 85%: LED green (Bat > 85%), floating NO contact "Bat > 85" closed

interfaces

product component PC interfaceVar

product function communication functionYok

design of the interfaceserial

safety

galvanic isolation between input and outputYok

operating resource protection classClass III

protection class IPIP20

for emitted interferenceEN 55022 Class B

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259

EAC approvalVar

MTBF at 40 °C725.689 h

standards, specifications, approvals marine classification

shipbuilding approvalVar

American Bureau of Shipping Europe Ltd. (ABS)Var

Det Norske Veritas (DNV)Var

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total399,2 kg

during manufacturing18,5 kg

during operation380,3 kg

after end of life0,34 kg

ambient conditions

during operation-25... +60 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

connection method

type of electrical connectionscrew terminal

at input24 V DC: 2 screw terminals for 1... 4 mm²/17... 11 AWG

at output24 V DC: 4 screw terminals for 1... 4 mm²/17... 11 AWG

for rechargeable battery module24 V DC: 2 screw terminals for 1... 4 mm²/17... 11 AWG

for control circuit and status message10 screw terminals for 0,5... 2,5 mm²/20... 13 AWG

mechanical data

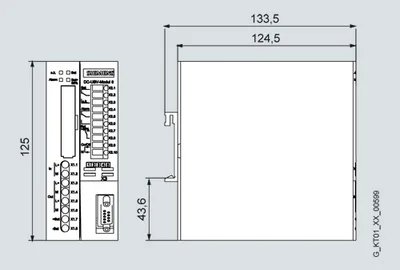

width × height × depth of the enclosure50 × 125 × 125 mm

installation width × mounting height50 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight0,45 kg

accessories

electrical accessoriesBattery module

additional information

MFR #6EP1334-2BA20-0AC0

MFR #AL30-03-8-A

SKU #YLS6GDABZE4BN7A
