Siemens 6EP1436-3BA00-8AA0 için nasıl fiyat teklifi alabilirim?

Siemens 6EP1436-3BA00-8AA0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B03871FB ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 6EP1436-3BA00-8AA0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 6EP1436-3BA00-8AA0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 6EP1436-3BA00-8AA0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

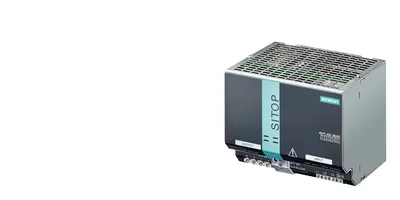

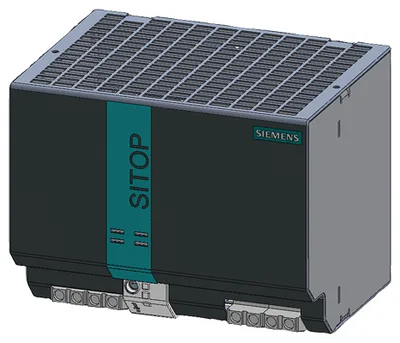

Siemens 6EP1436-3BA00-8AA0

SITOP modular plus 20 A Stabilized güç kaynağı giriş: 3 AC 400-500 V çıkış: 24 V DC/20 A Option için ile protective varnish

SiemensMFR # 6EP1436-3BA00-8AA0SKU # CEY-8EF3B03871FB

product brand nameSITOP

product type designationmodular

product designationPower supply SITOP modular

type of current supply24 V/20 A

type of the power supply network3-phase AC

phase number3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SITOP modular plus 20 A Stabilized güç kaynağı giriş: 3 AC 400-500 V çıkış: 24 V DC/20 A Option için ile protective varnish

Siemens 6EP1436-3BA00-8AA0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSITOP

product type designationmodular

product designationPower supply SITOP modular

type of current supply24 V/20 A

input

type of the power supply network3-phase AC

phase number3

voltage curve at inputAC

minimum rated value400 V

maximum rated value500 V

initial value320 V

full-scale value550 V

supply voltage at ACStarting from Vin > 340 V

at 50 Hz400 V

at 60 Hz500 V

line frequency50/60 Hz

line frequency47... 63 Hz

wide range inputVar

overvoltage overload capability2,3 × Vin rated, 1,3 ms

buffering time for rated value of the output current in the event of power failure minimum6 ms

operating condition of the mains bufferingVin = 400 V

at rated input voltage 400 V1,1 A

at rated input voltage 500 V0,9 A

current limitation of inrush current at 25 °C maximum35 A

I2t value maximum0,7 A²·s

fuse protection typeyok

fuse protection type in the feederRequired: 3-pole connected miniature circuit breaker 6... 16 A characteristic C veya circuit breaker 3RV2011-1DA10 (setting 3 A) veya 3RV2711-1DD10 (UL 489)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableVar; via potentiometer

adjustable output voltage24... 28,8 V; maks. 480 W

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,1 %

on slow fluctuation of ohm loading0,2 %

maximum100 mV

maximum200 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputvia signaling module (6EP1961-3BA10)

behavior of the output voltage when switching onYok overshoot of Vout (soft start)

response delay maximum2,5 s

maximum500 ms

rated value20 A

rated range0... 20 A; +60... +70 °C: Derating 2%/K

supplied active power typical480 W

at short-circuit during operation typical60 A

at short-circuit during operation25 ms

on short-circuiting during the start-up typical23 A

bridging of equipmentVar; switchable characteristic

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent90 %

at rated output voltage for rated value of the output current typical53 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical2 %

load step 50 to 100% typical4 ms

load step 100 to 50% typical4 ms

maximum10 ms

protection and monitoring

design of the overvoltage protection< 35 V

property of the output short-circuit proofVar

design of short-circuit protectionAlternatively, constant current characteristic yaklaşık 23 A veya latching shutdown

typical23 A

display version for overload and short circuitLED yellow for "overload", LED red for "latching shutdown"

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3,5 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UL onayıVar; UL-Listed (UL 508), File E197259

UKCA markingVar

EAC approvalVar

Regulatory Compliance Mark (RCM)Var

NEC Class 2Yok

CB-certificateYok

MTBF at 40 °C711.213 h

standards, specifications, approvals hazardous environments

IECExYok

ATEXYok

ULhazloc approvalYok

FM registrationYok

standards, specifications, approvals marine classification

shipbuilding approvalYok

American Bureau of Shipping Europe Ltd. (ABS)Yok

French marine classification society (BV)Yok

Det Norske Veritas (DNV)Yok

Lloyds Register of Shipping (LRS)Yok

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total1.390,9 kg

during manufacturing47,8 kg

during operation1.342,1 kg

after end of life0,4 kg

ambient conditions

during operation0... 70 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

connection method

type of electrical connectionscrew terminal

at inputL1, L2, L3, PE: 1 screw terminal her biri for 0,2... 4 mm² single-core/finely stranded

at output+, -: 2 screw terminals her biri for 0,33... 4 mm²

for auxiliary contacts-

mechanical data

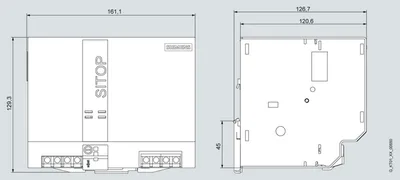

width × height × depth of the enclosure160 × 125 × 125 mm

installation width × mounting height160 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight2 kg

accessories

electrical accessoriesBuffer module, signaling module

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing47,8 kg

global warming potential [CO2 eq] / during operation1342,1 kg

global warming potential [CO2 eq] / after end of life0,4 kg
