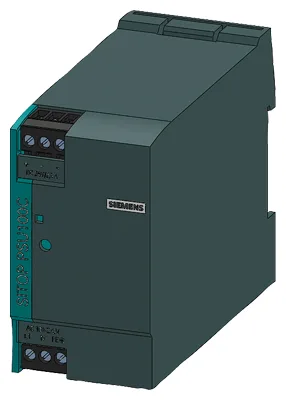

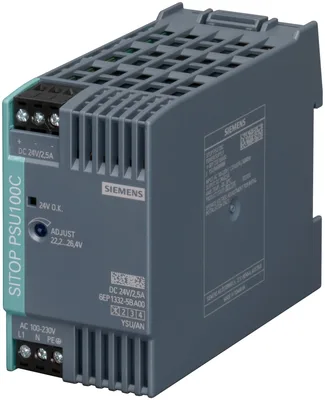

Siemens 6EP1332-5BA00

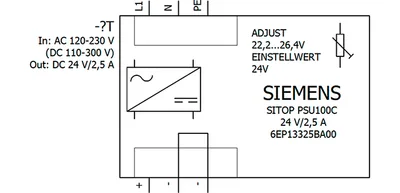

SITOP PSU100C 24 V/2.5 A stabilized power supply input: 120-230 V AC (110-300 V DC) output: 24 V DC/2.5 A
product brand nameSITOP
product type designationPSU100C
product designationPower supply SITOP PSU100C
type of current supply24 V/2,5 A
type of the power supply network1-phase AC veya DC
phase number1
Ürün Hakkında
SITOP PSU100C 24 V/2.5 A stabilized power supply input: 120-230 V AC (110-300 V DC) output: 24 V DC/2.5 A
Siemens 6EP1332-5BA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSU100C
product designationPower supply SITOP PSU100C
type of current supply24 V/2,5 A
input
type of the power supply network1-phase AC veya DC
phase number1
voltage curve at inputAC/DC
minimum rated value100 V
maximum rated value230 V
initial value85 V
full-scale value264 V
input voltage at DC110... 300 V
at 50 Hz230 V
at 60 Hz100 V
line frequency50/60 Hz
line frequency47... 63 Hz
wide range inputVar
overvoltage overload capability2,3 × Vin rated, 1,3 ms
buffering time for rated value of the output current in the event of power failure minimum20 ms
operating condition of the mains bufferingVin = 230 V
at rated input voltage 100 V1,21 A
at rated input voltage 230 V0,67 A
current limitation of inrush current at 25 °C maximum31 A
I2t value maximum2,4 A²·s
fuse protection typeinternal
fuse protection type in the feederRecommended miniature circuit breaker: from 16 A characteristic B veya from 10 A characteristic C
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableVar; via potentiometer
adjustable output voltage22,2... 26,4 V
relative overall tolerance of the voltage3 %
on slow fluctuation of input voltage0,1 %
on slow fluctuation of ohm loading0,2 %
maximum200 mV
typical55 mV
maximum300 mV
typical50 mV
display version for normal operationGreen LED for output voltage OK
behavior of the output voltage when switching onOvershoot of Vout yaklaşık 1 %
response delay maximum0,7 s
typical100 ms
rated value2,5 A
rated range0... 2,5 A; +60... +70 °C: Derating 1,6%/K; +70 °C Iout rated 2,1 A
supplied active power typical60 W
bridging of equipmentVar; Start-up with single nominal load only
number of parallel-switched equipment resources for increasing the power2
efficiency
efficiency in percent87 %
at rated output voltage for rated value of the output current typical9 W
during no-load operation maximum0,75 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,1 %
relative control precision of the output voltage at load step of resistive load 10/90/10 % typical3 %
load step 10 to 90% typical4 ms
load step 90 to 10% typical4 ms
protection and monitoring
design of the overvoltage protection< 60 V
property of the output short-circuit proofVar
design of short-circuit protectionElectronic shutdown, automatic restart
typical3 A
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum3,5 mA
typical0,4 mA
protection class IPIP20
EMC
for emitted interferenceEN 55022 Class B
for mains harmonics limitationnot applicable
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259; cURus-Recognized (UL 60950, CSA C22.2 Yok. 60950), File E151273, NEC class 2 (acc. to UL 1310)
EAC approvalVar
NEC Class 2Var; according to UL1310, File E151273
CB-certificateVar
MTBF at 40 °C2.881.014 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Var
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total250,5 kg
during manufacturing4,2 kg
during operation246,2 kg
after end of life0,15 kg
ambient conditions
during operation-20... +70 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionscrew terminal
at inputL, N, PE: Removable screw terminal, her biri for 1 x 0,5... 2,5 mm²
at output+: 1 screw terminal for 0,5... 2,5 mm²; -: 2 screw terminals for 0,5... 2,5 mm²
for auxiliary contacts-
mechanical data
width × height × depth of the enclosure45 × 80 × 100 mm
installation width × mounting height45 mm × 180 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight0,22 kg
accessories
electrical accessoriesRemovable spring-type terminal 6EP1971-5BA00
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing4,2 kg
global warming potential [CO2 eq] / during operation246,2 kg
global warming potential [CO2 eq] / after end of life0,15 kg
global warming potential [CO2 eq] / total250,5 kg
Aksesuarlar 14
Siemens 6EP1332-5BA00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6EP4437-7EB00-3DX0 | Aksesuar · Selectivity module | |
| 6EP4231-7HB00-0AX0 | Aksesuar · Buffer module · #NO_DATA# | |
| 6EP1964-2BA00 | Aksesuar · Redundancy module · #NO_DATA# | |
| 6EP1933-2EC41 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP4134-3AB00-0AY0 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP1961-2BA00 | Aksesuar · Diagnosis module · #NO_DATA# | |
| 6EP1961-2BA11 | Aksesuar · Selectivity module | |
| 6EP1961-2BA31 | Aksesuar · Selectivity module | |
| 6EP1961-2BA51 | Aksesuar · Selectivity module | |
| 6EP1961-3BA01 | Aksesuar · Buffer module · #NO_DATA# | |
| 6EP1962-2BA00 | Aksesuar · Redundancy module · #NO_DATA# | |
| 6EP1933-2EC51 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP4134-3AB00-1AY0 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP4134-3AB00-2AY0 | Aksesuar · Uninterruptible power supply · #NO_DATA# |
