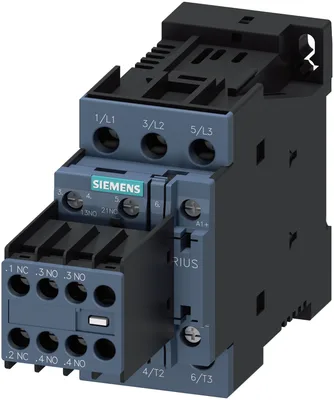

Siemens 3RT2025-1FB48-0ME1
güç kontaktör, AC-3e/AC-3, 17 A, 7,5 kW / 400 V, 3-pole, 24 V DC, ile plugged-in diode combination, yardımcı contacts: 3 NO + 2 NC, vidalı klemens, boyut: S0, ile 3RH2911-1HA21
product brand nameSIRIUS
product designationPower contactor
product type designation3RT2
size of contactorS0
function module for communicationYok
auxiliary switchYok
Ürün Hakkında
güç kontaktör, AC-3e/AC-3, 17 A, 7,5 kW / 400 V, 3-pole, 24 V DC, ile plugged-in diode combination, yardımcı contacts: 3 NO + 2 NC, vidalı klemens, boyut: S0, ile 3RH2911-1HA21
Siemens 3RT2025-1FB48-0ME1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationPower contactor
product type designation3RT2
General technical data
size of contactorS0
function module for communicationYok
auxiliary switchYok
at AC in hot operating state1,8 W
at AC in hot operating state per pole0,6 W
without load current share typical5,9 W
type of calculation of power loss current-dependentquadratic
of main circuit with degree of pollution 3 rated value690 V
of auxiliary circuit with degree of pollution 3 rated value690 V
of main circuit rated value6 kV
of auxiliary circuit rated value6 kV
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1400 V
at DC10g / 5 ms, 7,5g / 10 ms
at DC15 g / 5 ms, 10 g / 10 ms
of contactor typical10.000.000
of the contactor with added electronically optimized auxiliary switch block typical5.000.000
of the contactor with added auxiliary switch block typical10.000.000
reference code according to IEC 81346-2Q
Substance Prohibitance (day/month/year)10/01/2009
Net Weight0,647 kg
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-55... +80 °C
relative humidity minimum10 %
relative humidity at 55 °C according to IEC 60068-2-30 maximum95 %
Main circuit
number of poles for main current circuit3
number of NO contacts for main contacts3
number of NC contacts for main contacts0
at AC-3 rated value maximum690 V
at AC-3e rated value maximum690 V
at AC-1 at 400 V at ambient temperature 40 °C rated value40 A
— up to 690 V at ambient temperature 40 °C rated value40 A
— up to 690 V at ambient temperature 60 °C rated value35 A
— at 400 V rated value17 A
— at 500 V rated value17 A
— at 690 V rated value13 A
— at 400 V rated value17 A
— at 500 V rated value17 A
— at 690 V rated value13 A
at AC-4 at 400 V rated value15,5 A
at AC-5a up to 690 V rated value35,2 A
at AC-5b up to 400 V rated value14,1 A
— up to 230 V for current peak value n=20 rated value11,4 A
— up to 400 V for current peak value n=20 rated value11,4 A
— up to 500 V for current peak value n=20 rated value11,4 A
— up to 690 V for current peak value n=20 rated value11,3 A
— up to 230 V for current peak value n=30 rated value7,6 A
— up to 400 V for current peak value n=30 rated value7,6 A
— up to 500 V for current peak value n=30 rated value7,6 A
— up to 690 V for current peak value n=30 rated value7,6 A
minimum cross-section in main circuit at maximum AC-1 rated value10 mm²
at 400 V rated value7,7 A
at 690 V rated value7,7 A
— at 24 V rated value35 A
— at 60 V rated value20 A
— at 110 V rated value4,5 A
— at 220 V rated value1 A
— at 440 V rated value0,4 A
— at 600 V rated value0,25 A
— at 24 V rated value35 A
— at 60 V rated value35 A
— at 110 V rated value35 A
— at 220 V rated value5 A
— at 440 V rated value1 A
— at 600 V rated value0,8 A
— at 24 V rated value35 A
— at 60 V rated value35 A
— at 110 V rated value35 A
— at 220 V rated value35 A
— at 440 V rated value2,9 A
— at 600 V rated value1,4 A
— at 24 V rated value20 A
— at 60 V rated value5 A
— at 110 V rated value2,5 A
— at 220 V rated value1 A
— at 440 V rated value0,09 A
— at 600 V rated value0,06 A
— at 24 V rated value35 A
— at 60 V rated value35 A
— at 110 V rated value15 A
— at 220 V rated value3 A
— at 440 V rated value0,27 A
— at 600 V rated value0,16 A
— at 24 V rated value35 A
— at 60 V rated value35 A
— at 110 V rated value35 A
— at 220 V rated value10 A
— at 440 V rated value0,6 A
— at 600 V rated value0,6 A
at AC-2 at 400 V rated value7,5 kW
— at 230 V rated value4 kW
— at 400 V rated value7,5 kW
— at 500 V rated value7,5 kW
— at 690 V rated value11 kW
— at 230 V rated value4 kW
— at 400 V rated value7,5 kW
— at 500 V rated value7,5 kW
— at 690 V rated value11 kW
at 400 V rated value3,5 kW
at 690 V rated value6 kW
up to 230 V for current peak value n=20 rated value4,5 kVA
up to 400 V for current peak value n=20 rated value7,8 kVA
up to 500 V for current peak value n=20 rated value9,9 kVA
up to 690 V for current peak value n=20 rated value13,6 kVA
up to 230 V for current peak value n=30 rated value3 kVA
up to 400 V for current peak value n=30 rated value5,2 kVA
up to 500 V for current peak value n=30 rated value6,6 kVA
up to 690 V for current peak value n=30 rated value9,1 kVA
limited to 1 s switching at zero current maximum225 A; Use minimum cross-section acc. to AC-1 rated value
limited to 5 s switching at zero current maximum225 A; Use minimum cross-section acc. to AC-1 rated value
limited to 10 s switching at zero current maximum189 A; Use minimum cross-section acc. to AC-1 rated value
limited to 30 s switching at zero current maximum140 A; Use minimum cross-section acc. to AC-1 rated value
limited to 60 s switching at zero current maximum115 A; Use minimum cross-section acc. to AC-1 rated value
at DC1.500 1/h
at AC-1 maximum1.000 1/h
at AC-2 maximum1.000 1/h
at AC-3 maximum1.000 1/h
— maximum1.000 1/h
at AC-4 maximum300 1/h
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC rated value24 V
initial value0,8
full-scale value1,1
design of the surge suppressorwith diode assemblies
closing power of magnet coil at DC5,9 W
holding power of magnet coil at DC5,9 W
at DC50... 170 ms
at DC15... 18 ms
arcing time10 ms
control version of the switch operating mechanismStandard A1 - A2
Auxiliary circuit
number of NC contacts for auxiliary contacts instantaneous contact2
number of NO contacts for auxiliary contacts instantaneous contact3
operational current at AC-12 maximum10 A
at 230 V rated value6 A
at 400 V rated value3 A
at 500 V rated value2 A
at 690 V rated value1 A
at 24 V rated value10 A
at 48 V rated value6 A
at 60 V rated value6 A
at 110 V rated value3 A
at 125 V rated value2 A
at 220 V rated value1 A
at 600 V rated value0,15 A
at 24 V rated value6 A
at 48 V rated value2 A
at 60 V rated value2 A
at 110 V rated value1 A
at 125 V rated value0,9 A
at 220 V rated value0,3 A
at 600 V rated value0,1 A
contact reliability of auxiliary contacts1 faulty switching per 100 million (17 V, 1 mA)
UL/CSA ratings
at 480 V rated value14 A
at 600 V rated value17 A
— at 110/120 V rated value1 hp
— at 230 V rated value3 hp
— at 200/208 V rated value3 hp
— at 220/230 V rated value5 hp
— at 460/480 V rated value10 hp
— at 575/600 V rated value15 hp
contact rating of auxiliary contacts according to ULA600 / Q600
UL File Number (CCN)E31519 (NLDX, NLDX7)
Short-circuit protection
design of the miniature circuit breaker for short-circuit protection of the auxiliary circuit up to 230 VC characteristic: 10 A; 0,4 kA
— with type of coordination 1 requiredgG: 63 A (690 V, 100 kA), aM: 32 A (690 V, 100 kA), BS88: 63 A (415 V, 80 kA)
— with type of coordination 2 requiredgG: 25 A (690 V, 100 kA), aM: 20 A (690 V, 100 kA), BS88: 25 A (415 V, 80 kA)
for short-circuit protection of the auxiliary switch requiredgG: 10 A (500 V, 1 kA)

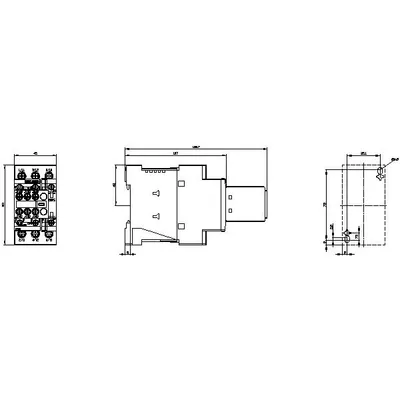

Installation/ mounting/ dimensions
mounting position+/-180° rotation possible on dikey mounting surface; can be tilted forward ve backward by +/- 22,5° on dikey mounting surface
fastening method side-by-side mountingVar
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
height85 mm
width45 mm
depth151 mm
— forwards10 mm
— upwards10 mm
— downwards10 mm
— at the side0 mm
— forwards10 mm
— upwards10 mm
— at the side6 mm
— downwards10 mm
— forwards10 mm
— upwards10 mm
— downwards10 mm
— at the side6 mm

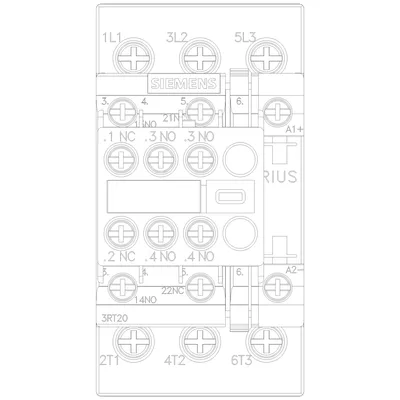

Connections/ Terminals
for main current circuitscrew-type terminals
for auxiliary and control circuitscrew-type terminals
at contactor for auxiliary contactsScrew-type terminals
of magnet coilscrew terminal
— solid2x (1... 2,5 mm²), 2x (2,5... 10 mm²)
— solid or stranded2x (1... 2,5 mm²), 2x (2,5... 10 mm²)
— finely stranded with core end processing2x (1... 2,5 mm²), 2x (2,5... 6 mm²), 1x 10 mm²
for AWG cables for main contacts2x (16... 12), 2x (14... 8)
solid1... 10 mm²
stranded1... 10 mm²
finely stranded with core end processing1... 10 mm²
solid or stranded0,5... 2,5 mm²
finely stranded with core end processing0,5... 2,5 mm²
— solid or stranded2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts2x (20... 16), 2x (18... 14)
AWG number as coded connectable conductor cross section for main contacts16... 8
AWG number as coded connectable conductor cross section for auxiliary contacts20... 14
Safety related data
mirror contact according to IEC 60947-4-1Var
positively driven operation according to IEC 60947-5-1Yok
suitable for safety functionVar
suitability for use safety-related switching OFFVar
service life maximum20 a
test wear-related service life necessaryVar
with low demand rate according to SN 3192040 %
with high demand rate according to SN 3192073 %
B10 value with high demand rate according to SN 319201.000.000
failure rate [FIT] with low demand rate according to SN 31920100 FIT
ISO 13849
device type according to ISO 13849-13
overdimensioning according to ISO 13849-2 necessaryVar
IEC 61508
safety device type according to IEC 61508-2Type A
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing2,65 kg
global warming potential [CO2 eq] / during operation219 kg
global warming potential [CO2 eq] / after end of life-0.639 kg
global warming potential [CO2 eq] / total221 kg
Aksesuarlar 91
Siemens 3RT2025-1FB48-0ME1 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RH2911-1HA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RV2925-5AB | Aksesuar · Plugs, adapters and terminals · infeed terminals | |
| 3RH2911-1FA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FA40 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA31 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-1DA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2922-2H | Aksesuar · Wiring modules, connectors and kits · wiring kits | |
| 3RT1926-4BA31 | Aksesuar · Wiring modules, connectors and kits · coil connectors | |
| 3RT2926-4RB11 | Aksesuar · Coil connection modules · coil connection modules | |
| 3RA2923-2AA1 | Aksesuar · Wiring modules, connectors and kits · wiring kits | |
| 3RT1926-4P | Aksesuar · Miscellaneous accessories · adapters | |
| 3RH2911-1NF11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2923-2BB1 | Aksesuar · Wiring modules, connectors and kits · wiring kits | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RA2926-1A | Aksesuar · Wiring modules, connectors and kits · link modules | |
| 3RT2926-4MC00 | Aksesuar · Miscellaneous accessories · Control Kits | |
| 3RA2924-2BB1 | Aksesuar · Wiring modules, connectors and kits · wiring kits | |
| 3RT1926-4RD01 | Aksesuar · Miscellaneous accessories · adapters | |
| 3RT2926-4RC11 | Aksesuar · Coil connection modules · coil connection modules | |
| 3RT2927-2PA01 | Aksesuar · Pneumatic delay blocks · pneumatic delay blocks | |
| 3RT2927-2PR01 | Aksesuar · Pneumatic delay blocks · pneumatic delay blocks | |
| 3RH2911-1LA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA31-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1AA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA40-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1AA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA13 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1HA12 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2921-1DA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2900-1SB10 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RH2921-1DA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1BA10 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1LA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1MA11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2916-4MA10 | Aksesuar · Sealing covers · sealing covers | |
| 3RH2911-1BA01 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2926-3AB31 | Aksesuar · Latching blocks · mechanical latching blocks | |
| 3RT2900-1SB60 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RH2911-1HA21 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FC22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2923-3DA1 | Aksesuar · Wiring modules, connectors and kits · wiring kits | |
| 3RH2911-1NE22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2816-0EW20 | Aksesuar | |
| 3RA2813-1FW10 | Aksesuar | |
| 3RH2911-1MA20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FB22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2923-3EA1 | Aksesuar · Wiring modules, connectors and kits · wiring kits | |
| 3RT2926-4RA11 | Aksesuar · Coil connection modules · coil connection modules | |
| 3RT2926-4BB31 | Aksesuar · Terminals · circuit connections | |
| 3RH2911-1HA03 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2924-1GP11 | Aksesuar · Coupling links · coupling links | |
| 3RT1900-4RE01 | Aksesuar · Miscellaneous accessories · plugs | |
| 3RH2911-1FB11 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1NF02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2815-1FW10 | Aksesuar | |
| 3RH2914-1GP11 | Aksesuar · Coupling links · coupling links | |
| 3RA2811-1CW10 | Aksesuar | |
| 3RH2911-1HA30 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2926-1QT00 | Aksesuar · LED modules · LED display indicator modules | |
| 3RA2812-1DW10 | Aksesuar | |
| 3RA2813-1AW10 | Aksesuar | |
| 3RT2926-3AF31 | Aksesuar · Latching blocks · mechanical latching blocks | |
| 3RH2911-1FC30 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1NF20 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2926-3AP31 | Aksesuar · Latching blocks · mechanical latching blocks | |
| 3RA2815-1AW10 | Aksesuar | |
| 3RA2814-1FW10 | Aksesuar | |
| 3RT2916-2BL01 | Aksesuar · OFF-delay device · OFF-delay device | |
| 3RH2911-1MA02 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RA2814-1AW10 | Aksesuar | |
| 3RT2916-2BE01 | Aksesuar · OFF-delay device · OFF-delay device | |
| 3RT2916-2BK01 | Aksesuar · OFF-delay device · OFF-delay device | |
| 3RR2142-1AW30 | Aksesuar | |
| 3RR2442-1AA40 | Aksesuar | |
| 3RR2242-1FA30 | Aksesuar | |
| 3RR2142-1AA30 | Aksesuar | |
| 3RH2916-1XA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FA04 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1XA04-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RH2911-1FA22-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RR2242-1FW30 | Aksesuar | |
| 3RH2916-1FA22 | Aksesuar · Auxiliary switch · auxiliary switches | |
| 3RT2927-2PR11 | Aksesuar · Pneumatic delay blocks · pneumatic delay blocks | |
| 3RT2927-2PA11 | Aksesuar · Pneumatic delay blocks · pneumatic delay blocks | |
| 3RH2911-1YA21-0MA0 | Aksesuar · Auxiliary switch · auxiliary switches |
İlgili Ürünler
Detayları Gör
Siemens
3MV8100-0MC00
MFR #3MV8100-0MC00
SKU #YLSNDRLO7GD0JC3
Detayları Gör
Siemens
3MV8100-0MD00
MFR #3MV8100-0MD00
SKU #YLSLDR7SAMNEI7
Detayları Gör
Siemens
3MV8100-0ME00
MFR #3MV8100-0ME00
SKU #YLSQYIXF5Z6DOGW
Detayları Gör
Siemens
3MV8100-0MF00
MFR #3MV8100-0MF00
SKU #YLSE4VVERJVVVFH
Detayları Gör
Siemens
3MV8100-0MG00
MFR #3MV8100-0MG00
SKU #YLSI4OKULAP3QK
Detayları Gör
Siemens
3MV8100-0MH00
MFR #3MV8100-0MH00
SKU #YLSCUEFEDHRZRUJ
Detayları Gör
Siemens
3MV8100-0MJ00
MFR #3MV8100-0MJ00
SKU #YLSMBKZVBRAS5T
Detayları Gör
Siemens
3MV8100-0MK00
MFR #3MV8100-0MK00
SKU #YLS3JCVHPICJ2VL
Detayları Gör
Siemens
3MV8100-0ML00
MFR #3MV8100-0ML00
SKU #YLSMFZC3SXLCXHP
Öne Çıkan Ürünler
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
İlgili Aramalar
Siemens 3RT2025-1FB48-0ME1 fiyatSiemens 3RT2025-1FB48-0ME1 teklif alSiemens 3RT2025-1FB48-0ME1 satın al3RT2025-1FB48-0ME1 fiyat3RT2025-1FB48-0ME1 stok durumuSiemens yedek parçaSiemens 3RT2025-1FB48-0ME1 muadilSiemens 3RT2025-1FB48-0ME1 teknik özellikler
