Siemens 3RV2925-5AB
3-phase supply terminal for 3-phase busbar connection from top Size S00/S0
product brand nameSIRIUS
product categoryPlugs, adapters ve terminals
product designation3-phase supply terminal
design of the productfrom above, size S0/S00
product type designation3RV29
certificate of suitabilityCE / UL / CSA / CCC
Ürün Hakkında

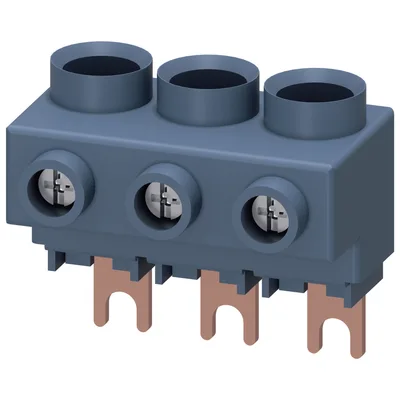

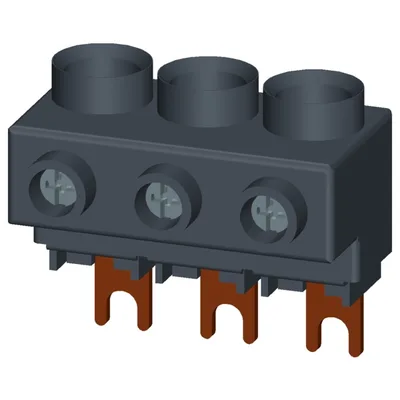

3-phase supply terminal for 3-phase busbar connection from top Size S00/S0
Siemens 3RV2925-5AB
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryPlugs, adapters ve terminals
product designation3-phase supply terminal
design of the productfrom above, size S0/S00
product type designation3RV29
General technical data
certificate of suitabilityCE / UL / CSA / CCC
size of the circuit-breakerS00, S0
insulation voltage with degree of pollution 3 at AC rated value690 V
protection class IP on the front according to IEC 60529IP20
Substance Prohibitance (day/month/year)10/01/2009
Net Weight0,045 kg
ampacity maximum63 A
Ambient conditions
during operation-20... +60 °C
during storage-50... +80 °C
Electrical Safety
protection class IP on the front according to IEC 60529IP20
touch protection on the front according to IEC 60529finger-safe, for dikey contact from the front

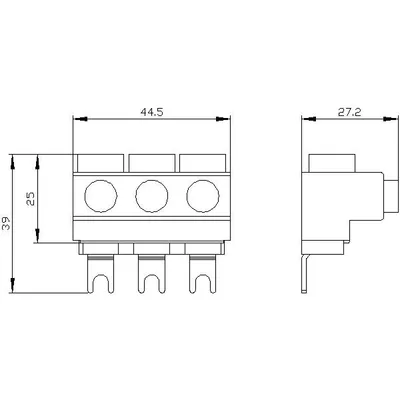

Installation/ mounting/ dimensions
height39 mm
width45 mm
depth27 mm
Connections/ Terminals
type of electrical connection for main current circuitscrew-type terminals
— solid1x (2,5... 16 mm²)
— stranded1x (2,5... 25 mm²)
— finely stranded with core end processing1x (2,5... 16 mm²)
for AWG cables for main contacts1x (10... 4)
solid or stranded2,5... 16 mm²
stranded2,5... 25 mm²
finely stranded with core end processing2,5... 16 mm²
AWG number as coded connectable conductor cross section for main contacts10... 4
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,161 kg
global warming potential [CO2 eq] / during operation139 kg
global warming potential [CO2 eq] / after end of life-0.0558 kg
global warming potential [CO2 eq] / total139 kg
