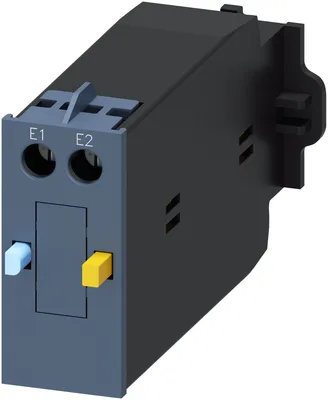

Siemens 3RT2926-3AB31
mechanical latch, 24 V AC/DC, for contactors 3RT202, 3RT232, 3RT252
product brand nameSIRIUS
product categoryLatching blocks
product designationmechanical latch
product type designation3RT29
certificate of suitabilityCE / UL / CSA
size of contactorS0
Ürün Hakkında
mechanical latch, 24 V AC/DC, for contactors 3RT202, 3RT232, 3RT252
Siemens 3RT2926-3AB31
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryLatching blocks
product designationmechanical latch
product type designation3RT29
General technical data
certificate of suitabilityCE / UL / CSA
size of contactorS0
insulation voltage with degree of pollution 3 at AC rated value300 V
power loss [W] of magnet coil at DC typical4 W
power loss [V∙A] of magnet coil at AC typical4 VA
surge voltage resistance rated value4 kV
protection class IP on the frontIP20
Substance Prohibitance (day/month/year)10/01/2009
SVHC substance name2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight108,7 g
type of voltage of the control supply voltageAC/DC
at 50 Hz rated value24 V
at 60 Hz rated value24 V
1 rated value50 Hz
2 rated value60 Hz
control supply voltage 1 at DC rated value24 V
initial value0,85
full-scale value1,1
initial value0,85
full-scale value1,1
at 50 Hz0,85... 1,1
at 60 Hz0,85... 1,1
number of NC contacts for auxiliary contacts0
instantaneous contact0
lagging switching0
number of NO contacts for auxiliary contacts0
instantaneous contact0
leading contact0
Ambient conditions
during operation-25... +60 °C
during storage-50... +80 °C
Installation/ mounting/ dimensions
mounting positionany
fastening methodclip-on
height48,4 mm
width22 mm
depth84,3 mm
Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
solid or stranded0,5... 4 mm²
finely stranded with core end processing0,5... 2,5 mm²
— solid2x (0,5... 2,5 mm²), 1x 4 mm²
— finely stranded with core end processing2x (0,5... 2,5 mm²), 1x 2,5 mm²
for AWG cables for auxiliary contacts2x 14, 1x 12
AWG number as coded connectable conductor cross section for auxiliary contacts14... 12
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing0,0885 kg
global warming potential [CO2 eq] / during operation6,96 kg
global warming potential [CO2 eq] / after end of life-0.0061 kg
global warming potential [CO2 eq] / total7,04 kg
