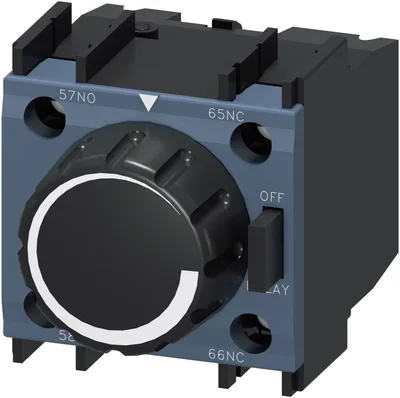

Siemens 3RT2927-2PR01
pneumatically time-delayed yardımcı anahtar, off delayed 1-30 s, 1 NO + 1 NC, için montaj to contactors 3RT202
product brand nameSIRIUS
product categoryPneumatic delay blocks
product designationpneumatic delay block
design of the productoff delay
product type designation3RT29
certificate of suitabilityCE / UL / CSA / CCC
Ürün Hakkında
pneumatically time-delayed yardımcı anahtar, off delayed 1-30 s, 1 NO + 1 NC, için montaj to contactors 3RT202
Siemens 3RT2927-2PR01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categoryPneumatic delay blocks
product designationpneumatic delay block
design of the productoff delay
product type designation3RT29
General technical data
certificate of suitabilityCE / UL / CSA / CCC
size of contactorS0
insulation voltage with degree of pollution 3 at AC rated value690 V
protection class IP on the frontIP20
mechanical service life (operating cycles) typical3.000.000
with 3RT2.2 contactor3.000.000
electrical endurance (operating cycles) at AC-15 at 230 V typical200.000
adjustable OFF-delay time1... 30 s
relative accuracy of the operating delay time/backslide delay time10 %
active principlepneumatic
Substance Prohibitance (day/month/year)10/01/2009
Net Weight0,09 kg
Switching Function
ON-delayYok
OFF delayVar
number of NC contacts delayed switching1
number of NO contacts delayed switching1
at 500 V rated value2,5 A
at 690 V rated value1,5 A
at 230 V6 A
at 400 V4 A
at 500 V2,5 A
operational current of auxiliary contacts at AC-12 maximum10 A
at 230 V6 A
at 400 V4 A
at 24 V4 A
at 48 V2 A
at 110 V0,7 A
at 220 V0,3 A
at 440 V0,15 A
Ambient conditions
during operation0... 60 °C
during storage-50... +80 °C
Electrical Safety
touch protection against electrical shockfinger-safe
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredFuse gG 10 A with short-circuit current Ik = 1 kA according to IEC 60947-5-1
Installation/ mounting/ dimensions
mounting positionany
fastening methodclip-on
height45 mm
width45 mm
depth60 mm
Connections/ Terminals
type of electrical connection for auxiliary and control circuitscrew-type terminals
solid or stranded0,5... 2,5 mm²
finely stranded with core end processing0,5... 2,5 mm²
— solid2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
— finely stranded with core end processing2x (0,5... 1,5 mm²), 2x (0,75... 2,5 mm²)
for AWG cables for auxiliary contacts2x (18... 14), 2x (20... 16)
AWG number as coded connectable conductor cross section for auxiliary contacts20... 14
