How can I get a price quote for Siemens 6XV1871-2T?

You can request a fast quote for Siemens 6XV1871-2T from Yılsa Engineering. Reference part number CEY-8EF3B0382D01. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1871-2T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1871-2T genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1871-2T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1871-2T

IE TP TRAIN Cable 2x2; CAT5 TP installation cable for Rail applications, for connection to FC RJ45 plug 2x2, FC M12 plug pro 2x2; railway-certified, 4-core, shielded, Cat5e, sold by the meter, max. delivery unit 2000 m, minimum order quantity 20 m.

SiemensMFR # 6XV1871-2TSKU # CEY-8EF3B0382D01

product brand nameSIMATIC NET

suitability for useFor laying in rail vehicles and buses

cable designationSF/UTP

wire lengthsold by the meter

at 10 MHz / maximum0.053 dB/m

at 100 MHz / maximum0.188 dB/m

Have questions?Chat on WhatsApp

About This Product

Siemens 6XV1871-2T

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useFor laying in rail vehicles and buses

cable designationSF/UTP

wire lengthsold by the meter

electrical data

at 10 MHz / maximum0.053 dB/m

at 100 MHz / maximum0.188 dB/m

at 1 MHz ... 100 MHz100 Ω

of the characteristic impedance at 1 MHz … 100 MHz5 %

at 1 MHz ... 100 MHz0.5 dB/m

transfer impedance per length / at 10 MHz8 mΩ/m

loop resistance per length / maximum124 mΩ/m

RMS value125 V

mechanical data

number of electrical cores4

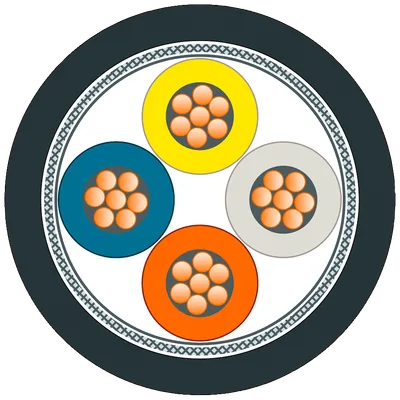

design of the shieldSF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires

type of electrical connection / FastConnectNo

of AWG22 insulated conductor0.75 mm

of inner conductor0.75 mm

of the wire insulation1.5 mm

of cable sheath6.6 mm

symmetrical tolerance of the outer diameter / of cable sheath0.2 mm

of the wire insulationpolyethylene (PE)

of cable sheathElastomer meshed electron beam

of the insulation of data wireswhite/yellow/blue/orange

of cable sheathBlack

with single bend / minimum permissible40 mm

with multiple bends / minimum permissible40 mm

tensile load / maximum100 N

weight per length71 kg/km

ambient conditions

during operation-40 ... +85 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

during installation-25 ... +70 °C

noteelectrical properties measured at 20 °C

fire behaviorBS 6853 cable internal Ia, Ib, II, cable external Ia, Ib, II, DIN 5510-2 fire protection level 1-4, EN 45545-2 Hazard Level HL 1-HL 3, EN 50306-4, NF F 16-101, NFPA 130, PN-K-02511 Class A, UIC 564-2 Class A

to mineral oilEN 50306-4 (72h/100 °C, method B volume concentration 200x10-6, 72h/100 °C IRM 902, 168h/70 °C IRM 903), DIN 51900

to greaseConditional resistance

to waterconditional resistance

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeYes

PoE capabilityYes

PoE+ capabilityYes

silicon-freeYes

with 100BaseTX100 m

at AC / core-to-core1000 V

at AC / core shield1000 V

standards, specifications, approvals

UL/ETL listing / 300 V RatingNo

UL/ETL style / 600 V RatingNo

EAC approvalYes

CE markingYes

RoHS conformityYes

standard for structured cablingCat5

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No

Accessories 20

Genuine accessories that can be used with the Siemens 6XV1871-2T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK1901-1GA00	Aksesuar
6GK1901-1GB01	Aksesuar
6GK1901-0DB20-6AA0	Aksesuar
6GK1901-0DM30-2AA5	Aksesuar
6GK1901-1BB10-2AA0	Aksesuar
6GK1901-1BB10-2AB0	Aksesuar
6GK1901-1BB10-2AE0	Aksesuar
6GK1901-1BB10-6AA0	Aksesuar
6GK1901-1BB12-2AB0	Aksesuar
6GK1901-1BB12-2AE0	Aksesuar
6GK1901-1BB20-2AA0	Aksesuar
6GK1901-1BB20-2AB0	Aksesuar
6GK1901-1BB20-2AE0	Aksesuar
6GK1901-1BB20-6AA0	Aksesuar
6GK1901-1BB21-6AA0	Aksesuar
6GK1901-1BB30-0AA0	Aksesuar
6GK1901-1BB30-0AB0	Aksesuar
6GK1901-1BB30-0AE0	Aksesuar
6GK1901-1FC00-0AA0	Aksesuar · Cabling system
6GK1901-1BB50-0AA0	Aksesuar
