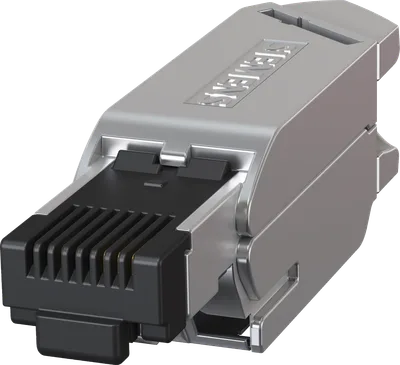

Siemens 6GK1901-1BB30-0AA0
Industrial Ethernet FastConnect RJ45 plug 145 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP cable 2x 2; 145° cable outlet 1 pack = 1 unit.
product brand nameSIMATIC NET
transfer rate / for Industrial Ethernet10, 100 Mbit/s
for Industrial Ethernet FC TP cables4
material / of the enclosuremetal
number of reuses10
locking mechanism designother
About This Product
Industrial Ethernet FastConnect RJ45 plug 145 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP cable 2x 2; 145° cable outlet 1 pack = 1 unit.
Siemens 6GK1901-1BB30-0AA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIMATIC NET
suitability for useFor connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system
transfer rate
transfer rate / for Industrial Ethernet10, 100 Mbit/s
interfaces
for Industrial Ethernet FC TP cables4
for network components or terminal equipment1
for Industrial Ethernet FC TP cablesintegrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22
for network components or terminal equipmentRJ45 connector
type of electrical connection / FastConnectYes
mechanical data
material / of the enclosuremetal
number of reuses10
locking mechanism designother

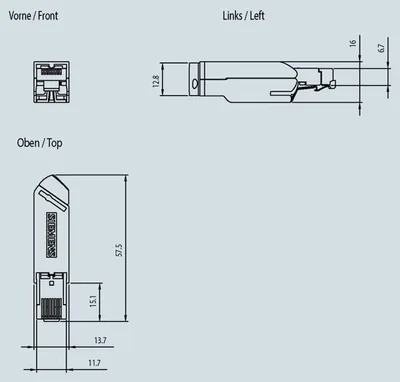

design, dimensions and weights
type of cable outlet145° cable outlet
width13.9 mm
height16 mm
depth55.6 mm
net weight35 g
connectable cable diameter6.5 mm
connectable conductor cross-section0.33 mm²
ambient conditions
during operation-40 ... +85 °C
during storage-40 ... +85 °C
during transport-40 ... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
product features, product functions, product components / general
PoE capabilityYes
PoE+ capabilityYes
silicon-freeYes
strain reliefYes
at AC / core-to-core500 V
at AC / core shield1500 V
standards, specifications, approvals
RoHS conformityYes
UL approvalYes
cULus approvalYes
railway application in accordance with EN 50155No
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
standard for structured cablingCat5
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total0.277 kg
during manufacturing0.263 kg
during operation0.0086 kg
after end of life0.0062 kg
