How can I get a price quote for Siemens 6GK1901-1BB20-2AE0?

You can request a fast quote for Siemens 6GK1901-1BB20-2AE0 from Yılsa Engineering. Reference part number CEY-937FC77EBBD5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK1901-1BB20-2AE0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK1901-1BB20-2AE0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK1901-1BB20-2AE0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

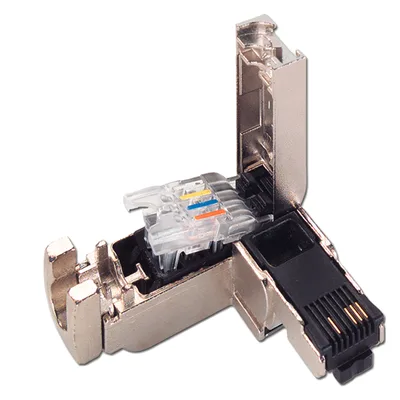

Siemens 6GK1901-1BB20-2AE0

Industrial Ethernet FastConnect RJ45 plug 90 2x 2, RJ45 plug-in connector (10/100 Mbit/s) with rugged metal enclosure and FC connection system, for IE FC TP Cable 2x 2; 90° cable outlet 1 pack=50 units.

SiemensMFR # 6GK1901-1BB20-2AE0SKU # CEY-937FC77EBBD5

product brand nameSIMATIC NET

transfer rate / for Industrial Ethernet10, 100 Mbit/s

for Industrial Ethernet FC TP cables4

material / of the enclosuremetal

number of reuses10

locking mechanism designother

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK1901-1BB20-2AE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useFor connection to IE FC TP cables 2x2, suitable for fast assembly with the FastConnect system

transfer rate

transfer rate / for Industrial Ethernet10, 100 Mbit/s

interfaces

for Industrial Ethernet FC TP cables4

for network components or terminal equipment1

for Industrial Ethernet FC TP cablesintegrated cut-and-clamp contacts for 4-wire TP FC installation cable AWG22

for network components or terminal equipmentRJ45 connector

type of electrical connection / FastConnectYes

mechanical data

material / of the enclosuremetal

number of reuses10

locking mechanism designother

design, dimensions and weights

type of cable outlet90° cable outlet

width13.7 mm

height16 mm

depth42 mm

net weight35 g

connectable cable diameter6.5 mm

connectable conductor cross-section0.33 mm²

ambient conditions

during operation-40 ... +85 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

product features, product functions, product components / general

PoE capabilityYes

PoE+ capabilityYes

silicon-freeYes

strain reliefYes

at AC / core-to-core500 V

at AC / core shield1500 V

standards, specifications, approvals

RoHS conformityYes

UL approvalYes

cULus approvalYes

railway application in accordance with EN 50155No

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

standard for structured cablingCat5

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total0.277 kg

during manufacturing0.263 kg

during operation0.0086 kg

after end of life0.0062 kg
