How can I get a price quote for Siemens 6GK7543-1MX00-0XE0?

You can request a fast quote for Siemens 6GK7543-1MX00-0XE0 from Yılsa Engineering. Reference part number YLS3NFM9FTSRCHB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK7543-1MX00-0XE0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK7543-1MX00-0XE0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK7543-1MX00-0XE0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

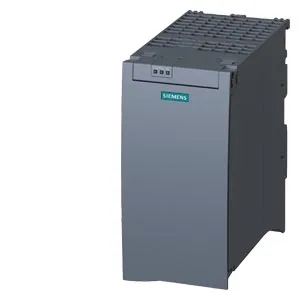

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6GK7543-1MX00-0XE0

Successor 6GK7543-1MX10-0XE0 planned for 07/2027. module for SIMATIC S7-1500, S7-400, S7-300 and ET200SP with SINAUT ST7, DNP3 and IEC 60870-5-101/104 with three RJ45 interfaces for communication via IP-based networks (WAN / LAN) and an RS-232/RS-485 interface for communication via classic wide area networks.

SiemensMFR # 6GK7543-1MX00-0XE0SKU # YLS3NFM9FTSRCHB

product brand nameSIMATIC NET

at the 1st interface10 ... 1000 Mbit/s

at the 2nd interface10 ... 100 Mbit/s

at the 3rd interface10 ... 100 Mbit/s

according to RS 232300 ... 115200 bit/s

for power supply1

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK7543-1MX00-0XE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

at the 1st interface10 ... 1000 Mbit/s

at the 2nd interface10 ... 100 Mbit/s

at the 3rd interface10 ... 100 Mbit/s

according to RS 232300 ... 115200 bit/s

interfaces

number of interfaces / according to Industrial Ethernet3

for external data transmission / according to RS 2321

for power supply1

for memory cards1

of Industrial Ethernet interfaceRJ45 port

at interface 1 / for external data transmission9 pin Sub-D-connector, RS232 switchable to RS485

for power supply2-pole plugable terminal block

of the memory cardSD 1.0, SD 1.1, SDHC, Siemens SMC

storage capacity / of the memory card / maximum32 Gibyte

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage24 V

supply voltage20.4 ... 28.8 V

supply voltage / external / at DC / rated value24 V

supply voltage / external / at DC / rated value20.4 ... 28.8 V

from external supply voltage / at DC / at 24 V / typical0.15 A

from external supply voltage / at DC / at 24 V / maximum0.3 A

in update mode / typical3.9 W

in communication mode / typical3.9 W

product extension / optional / backup batteryNo

ambient conditions

during operation0 ... 70 °C

for vertical installation / during operation0 ... 50 °C

for horizontally arranged busbars / during operation0 ... 70 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

module formatCompact module S7-1500 double-wide

width70 mm

height147 mm

depth129 mm

net weight0.525 kg

35 mm DIN-rail mountingNo

S7-300 rail mountingNo

S7-1500 rail mountingYes

product features, product functions, product components / general

DynDNS clientNo

noteNumber of TIM per S7-1500: 1

with RS 232 interface / maximum6 m

with RS 485 interface / maximum30 m

performance data / S7 communication

maximum132; only via LAN

with PG connections / maximum4

with PG/OP connections / maximum4

with OP connections / maximum4

of SIMATIC communication / as serverYes

SINAUT ST7 via S7 communicationYes

PG/OP communicationYes

performance data / IT functions

as server / by means of HTTP / maximum2

as server / by means of HTTPS / maximum2; 2 per Ethernet interface

as email client / maximum1

performance data / telecontrol

node stationYes

substationYes

TIM control centerYes

control center connectionSystems with ST7, DNP3 and IEC 60870-5-101/104 protocol

by means of a permanent connectionSystems with ST7, DNP3 and IEC 60870-5-101/104 protocol

DNP3Yes

IEC 60870-5Yes

SINAUT ST1 protocolNo

SINAUT ST7 protocolYes

Modbus RTUNo

product function / data buffering if connection is abortedYes; 100000 data telegrams (ST7) or 250000 events (IEC 60870-5 / DNP3)

number of data points per device / maximum3000

for Ethernet / maximum4

with RS 232 interface / maximum4

product feature / buffered message frame memoryYes

for SINAUT ST7 protocol with polling or spontaneous / 10-bit or 11-bitYes

with dedicated line/radio link / with SINAUT ST7 protocolPolling, polling with time slot procedure

with dial-up network / with SINAUT ST7 protocolspontaneous

for SINAUT ST7 protocol4

performance data / teleservice

diagnostics function / online diagnostics with SIMATIC STEP 7Yes

program download with SIMATIC STEP 7Yes

remote firmware updateYes

remote configurationYes

product functions / management, configuration, engineering

product function / MIB supportYes

SNMP v1Yes

SNMP v3Yes

DCPYes

LLDPYes

requiredSTEP 7 Professional V14 SP1 (TIA Portal) or higher

for CPU configuring / required / SINAUT TD7 block library for CPUNo

for PG configuring / required / SINAUT ST7 configuration software for PGNo

storage location / of TIM configuration dataFlash or SD card of the TIM 1531 IRC

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

I&M2 - installation dateYes

I&M3 - commentYes

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

product functions / diagnostics

product function / web-based diagnosticsYes

product functions / routing

service / routing / noteIP routing up to 1 Mbps

static IP routingYes

static IP routing IPv6Yes

dynamic IP routingNo

dynamic IP routing IPv6No

RIP v1No

RIPv2No

RIPnG for IPv6No

OSPFv2No

OSPFv3 for IPv6No

VRRPNo

VRRP for IPv6No

BGPNo

PPPNo

PPoE via DSLNo

product functions / security

MSC client via GPRS modem with MSC capabilityYes

is supported / MSC protocolYes

with Virtual Private Network MSC / is supportedTCP/IP

key length / for MSC / with Virtual Private Network128 bit

as MSC client / with VPN connection1

as MSC server / with VPN connection127

product functions / time

product function / SICLOCK supportNo

product function / pass on time synchronizationYes

NTPYes

NTP (secure)Yes

product component / hardware real time clockNo

product feature / hardware real time clock w. battery backupNo

from NTP-serverYes

from GPS-signalNo

from control centerYes

from mobile network providerNo

PCNo

manual settingNo

product functions / position detection

position detection with GPSNo

pass on position dataNo

standards, specifications, approvals

certificate of suitability / CE markingYes

certificate of suitability / Regulatory Compliance Mark (RCM)Yes

certificate of suitability / RoHS conformityYes

certificate of suitability / EAC approvalYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes

certificate of suitability / IECExYes

certificate of suitability / CCC / for hazardous zone according to GB standardYes

certificate of suitability / FM registrationYes

standards, specifications, approvals / marine classification / header

Marine classification association / Det Norske Veritas (DNV)Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total128.35 kg

during manufacturing18.7 kg

during operation109 kg

after end of life0.65 kg
