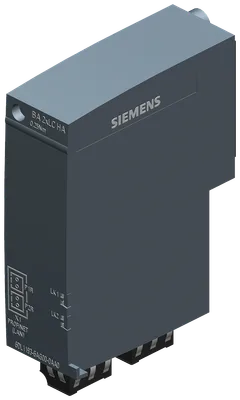

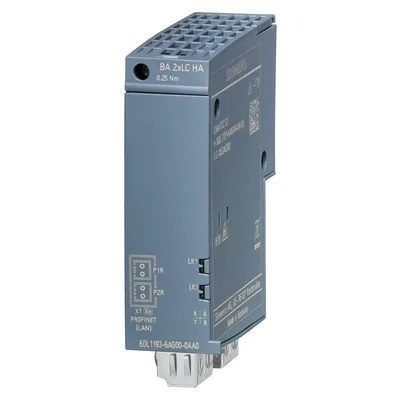

Siemens 6DL1193-6AG00-0AA0

SIMATIC ET 200SP HA, bus adapter BA 2XLC 2 x LC glass FOC connections, for PROFINET

SiemensMFR # 6DL1193-6AG00-0AA0SKU # YLSUZKYJKLX32D

Product type designationBA 2xLC

Number of LC ports2

min.-40 °C

horizontal installation, min.-40 °C

horizontal installation, max.60 °C

vertical installation, min.-40 °C

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP HA, bus adapter BA 2XLC 2 x LC glass FOC connections, for PROFINET

Siemens 6DL1193-6AG00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationBA 2xLC

Interfaces

Number of PROFINET interfaces1; 2 ports (switch) LC Multimode Glass Fibre

Supports protocol for PROFINET IO

Number of LC ports2

Cable length

— Multimode graded-index fiber 50/125 µm3 km; min. transmit power -23.5 dB, min. receiver sensitivity -31 dB

— Multimode graded-index fiber 62.5/125 μm3 km; min. transmit power -20 dB, min. receiver sensitivity -31 dB

Ambient temperature during operation

min.-40 °C

max.65 °C; redundant design (2x 6DL1155-6AU00-0PM0): max. 60 °C horizontal, max. 50 °C vertical. When using different I/O devices, the derating specified there must be observed

horizontal installation, min.-40 °C

horizontal installation, max.60 °C

vertical installation, min.-40 °C

vertical installation, max.50 °C

Dimensions

Width20 mm

Height75 mm; Without protective caps (approx. 8 mm)

Depth59 mm

Weights

Weight, approx.60 g
