How can I get a price quote for Siemens 6AG1193-6AM00-7AA0?

You can request a fast quote for Siemens 6AG1193-6AM00-7AA0 from Yılsa Engineering. Reference part number YLSIACCZARVXEG. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6AG1193-6AM00-7AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6AG1193-6AM00-7AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6AG1193-6AM00-7AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

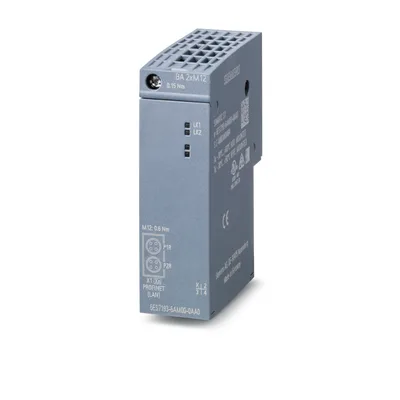

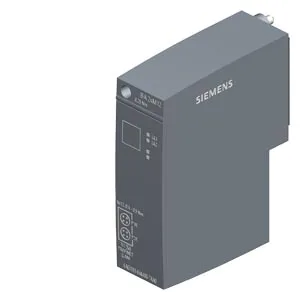

Siemens 6AG1193-6AM00-7AA0

SIPLUS ET 200SP BA 2xM12 based on 6ES7193-6AM00-0AA0 with conformal coating, -40…+70 °C, BusAdapter 2x M12 push-pull sockets for PROFINET, D-coding, also suitable for standard M12

SiemensMFR # 6AG1193-6AM00-7AA0SKU # YLSIACCZARVXEG

Product type designationBA 2x M12 BusAdapter

based on6ES7193-6AM00-0AA0

Number of PROFINET interfaces1; 2 ports (switch) 2x M12

Number of M12 ports2

— Cu conductors100 m

horizontal installation, max.70 °C; = Tmax

Have questions?Chat on WhatsApp

About This Product

SIPLUS ET 200SP BA 2xM12 based on 6ES7193-6AM00-0AA0 with conformal coating, -40…+70 °C, BusAdapter 2x M12 push-pull sockets for PROFINET, D-coding, also suitable for standard M12

Siemens 6AG1193-6AM00-7AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationBA 2x M12 BusAdapter

based on6ES7193-6AM00-0AA0

Interfaces

Number of PROFINET interfaces1; 2 ports (switch) 2x M12

Supports protocol for PROFINET IO

Number of M12 ports2

Cable length

— Cu conductors100 m

Ambient temperature during operation

horizontal installation, min.-40 °C; = Tmin (incl. condensation/frost)

horizontal installation, max.70 °C; = Tmax

vertical installation, min.-40 °C; = Tmin

vertical installation, max.50 °C; = Tmax

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m

Ambient air temperature-barometric pressure-altitudeTmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)

Relative humidity

With condensation, tested in accordance with IEC 60068-2-38, max.100 %; RH incl. condensation / frost (no commissioning in bedewed state), horizontal installation

Coolants and lubricants

— Resistant to commercially available coolants and lubricantsYes; Incl. diesel and oil droplets in the air

Use in stationary industrial systems

— to biologically active substances according to EN 60721-3-3Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request

— to chemically active substances according to EN 60721-3-3Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-3Yes; Class 3S4 incl. sand, dust, *

— Against mechanical environmental conditions acc. to EN 60721-3-3Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Use on ships/at sea

— to biologically active substances according to EN 60721-3-6Yes; Class 6B2 mold, fungal and dry rot spores (excluding fauna)

— to chemically active substances according to EN 60721-3-6Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *

— to mechanically active substances according to EN 60721-3-6Yes; Class 6S3 incl. sand, dust; *

— Against mechanical environmental conditions acc. to EN 60721-3-6Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)

Usage in industrial process technology

— Against chemically active substances acc. to EN 60654-4Yes; Class 3 (excluding trichlorethylene)

— Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)

Remark

— Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04* The supplied plug covers must remain in place over the unused interfaces during operation!

Conformal coating

Coatings for printed circuit board assemblies acc. to EN 61086Yes; Class 2 for high reliability

Protection against fouling acc. to EN 60664-3Yes; Type 1 protection

Military testing according to MIL-I-46058C, Amendment 7Yes; Discoloration of coating possible during service life

Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830AYes; Conformal coating, Class A

Dimensions

Width20 mm

Height73.5 mm

Depth59 mm

Weights

Weight, approx.59 g
