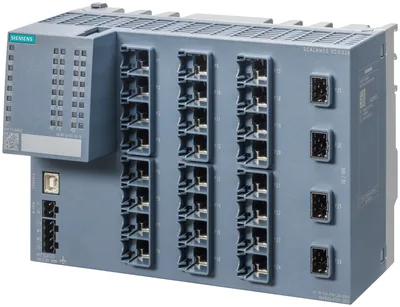

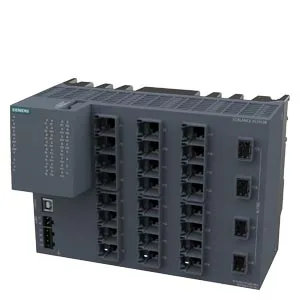

Siemens 6GK5328-4TS01-2EC2
SCALANCE XCH328 managed layer 2 IE switch, 24x 10/100/1000 Mbps RJ45, 4x 1/10 Gbps SFP+ port, LED diagnostics,error signaling contact with select/set pushbutton, PROFINET IO device, network management, redundancy functions, office features (RSTP, VLAN, IGMP,..) CLP included in scope of supply assembly: DIN rail/S7 mounting rail conformal coating
product brand nameSCALANCE
product type designationXCH328
transfer rate10, 100, 1000 Mbit/s
transfer rate10 Gbit/s
with securing collar24
for operator console1
About This Product
SCALANCE XCH328 managed layer 2 IE switch, 24x 10/100/1000 Mbps RJ45, 4x 1/10 Gbps SFP+ port, LED diagnostics,error signaling contact with select/set pushbutton, PROFINET IO device, network management, redundancy functions, office features (RSTP, VLAN, IGMP,..) CLP included in scope of supply assembly: DIN rail/S7 mounting rail conformal coating
Siemens 6GK5328-4TS01-2EC2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXCH328
transfer rate
transfer rate10, 100, 1000 Mbit/s
transfer rate10 Gbit/s
interfaces / for communication / integrated
for network components or terminal equipment24; RJ45
with securing collar24
for SFP+4; 1000 Mbps and 10000 Mbps SFP usable, 100 Mbps with SFP991-1(LD) A possible
interfaces / other
for operator console1
for signaling contact1
for power supply1
for operator consoleUSB (2.0 type B, USB-to-serial adapter)
for signaling contact2-pole terminal block
for power supply2 x 2-pole terminal block
CLPYes
at DC / rated value24 V
at DC / maximum0.1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value43.2 W
power loss [W] / at DC / at 24 V / typical25.92 W
supply voltage / 1 / voltage range19.2 ... 28.8
consumed current / 1 / maximum1.8 A
consumed current / at DC / at 24 V / typical1.08 A
type of electrical connection / 1 / for power supply2 x 2-pole terminal block
product component / 1 / fusing at power supply inputYes
fuse protection type / 1 / at input for supply voltageF 10 A / 250 V
ambient conditions
during operation-40 ... +60 °C
during storage-40 ... +85 °C
during transport-40 ... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
operating condition / fanless operationYes
protection class IPIP20
design, dimensions and weights
designcompact
width210 mm
height147 mm
depth125 mm
net weight1.9 kg
product feature / conformal coatingYes
19-inch installationNo
35 mm top hat DIN rail mountingYes
wall mountingYes
S7-300 rail mountingYes
S7-1500 rail mountingYes
product features, product functions, product components / general
product conformity / according to IEEE 802.1Qbu and IEEE 802.3br (Frame Preemption)Yes
product license
product license / Upgrade licenseYes; layer 3 license
product functions / management, configuration, engineering
CLIYes
web-based managementYes
MIB supportYes
TRAPs via emailYes
configuration with STEP 7Yes
RMONNo
port mirroringYes
multiport mirroringYes
Encapsulated Remote Traffic Mirroring (ERTM)Yes
CoSYes
PROFINET IO diagnosisYes
switch-managedYes
PROFINET conformity classB
network load class / according to PROFINETII
telegram length / for Ethernet / maximum9194 byte
TelnetNo
HTTPYes
HTTPSYes
TFTPYes
FTPYes
SFTPYes
BOOTPNo
NETCONFYes
GMRPYes
DCPYes
LLDPYes
EtherNet/IPYes
SNMP v1Yes
SNMP v2Yes
SNMP v3Yes
IGMP (snooping/querier)Yes
I&M0 - device-specific informationYes
I&M1 - higher level designation/location designationYes
product functions / diagnostics
port diagnosticsYes
statistics Packet SizeYes
statistics packet typeYes
error statisticsYes
SysLogYes
product functions / VLAN
VLAN - port basedYes
VLAN - protocol-basedNo
VLAN - IP-basedNo
VLAN dynamicYes
number of VLANs / maximum2048
number of VLANs - dynamic / maximum2048
product functions / DHCP
DHCP serverNo
DHCP clientYes
DHCP Option 82No
DHCP Option 66Yes
DHCP Option 67Yes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Yes
media redundancy protocol (MRP) with redundancy managerYes
Media Redundancy Protocol Interconnection (MRP-I)No
ring redundancyYes
high speed redundancy protocol (HRP) with redundancy managerNo
high speed redundancy protocol (HRP) with standby redundancyNo
redundancy procedure STPYes
redundancy procedure RSTPYes
redundancy procedure RSTP+No
redundancy procedure MSTPYes
passive listeningYes
eRSTPYes
LACPYes
product functions / security
RADIUSYes
SSHYes
SSLYes
product functions / time
SICLOCK supportYes
NTP-clientYes
IEEE 1588 v2 transparent forwardingYes
NTPYes
IEEE 1588 profile defaultYes
standards, specifications, approvals
CE markingYes
UKCA markingYes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
product conformity / according to EMC-guideline2014/30/EU
for EMC interference emissionEN 61000-6-4
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL-61010-2 E85972
standards, specifications, approvals / hazardous environments
ATEXYes
UKEXYes
IECExYes
ULhazloc approvalYes
CCC / for hazardous zone according to GB standardYes
FM registrationYes
standards, specifications, approvals / other
railway application in accordance with EN 50121-4Yes; use only in areas not accessible to the public
railway application in accordance with EN 50125-3Yes; Section 4.2: Class AX (up to 2000m); section 4.3: T1: Containers N.T.C and T.C. / Buildings N.C.C and C.C, T2: Containers N.T.C and T.C. / Buildings N.C.C and C.C, TX: Containers N.T.C and T.C. / Buildings N.C.C and C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used --> only for variants with optical connections; In addition, depending on the installation position, the derating according to the manual must be taken into account; section 4.4: T1: Containers C.C. / Buildings N.C.C and C.C., T2: Containers C.C. / Buildings N.C.C and C.C, T3: Containers C.C. / Buildings N.C.C and C.C; section 4.11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 61010-2-10; section 4.13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4.14: yes; section 4.15: yes, according to manual.
resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3
IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total1244.3 kg
during manufacturing122.74 kg
during operation1120.64 kg
after end of life0.91 kg
product functions / general
MTBF15.6 a
warranty period5 a
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing122.74 kg
global warming potential [CO2 eq] / during operation1120.64 kg
global warming potential [CO2 eq] / after end of life0.91 kg
global warming potential [CO2 eq] / total1244.3 kg
