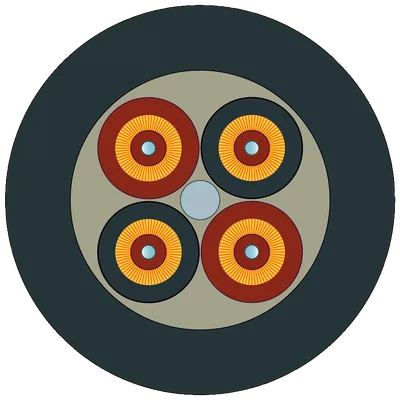

Siemens 6XV1843-2R

SM FO robust cable GP (4E9/125) Outdoor cable; with Rodent protection; splittable; without connector; sold by the meter; minimum order quantity 20 m; max. length 2000 m;

SiemensMFR # 6XV1843-2RSKU # CEY-8EF3B0382DBE

product brand nameSIMATIC NET

version of the assembled FO cablesold by the meter

cable designationAT-V(ZN)H(ZN)BH 4E9/125

at 1300 nm / maximum0.5 dB/km

at 1550 nm / maximum0.5 dB/km

number of fibers / per FOC core1

Have questions?Chat on WhatsApp

About This Product

SM FO robust cable GP (4E9/125) Outdoor cable; with Rodent protection; splittable; without connector; sold by the meter; minimum order quantity 20 m; max. length 2000 m;

Siemens 6XV1843-2R

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useWaterproof cable (lengthwise and sideways) with non-metallic protection against rodents for use indoors and outdoors as well as for direct routing underground

version of the assembled FO cablesold by the meter

cable designationAT-V(ZN)H(ZN)BH 4E9/125

optical data

at 1300 nm / maximum0.5 dB/km

at 1550 nm / maximum0.5 dB/km

mechanical data

number of fibers / per FOC core1

number of FO cores / per FOC cable4

version of the FO conductor fiberSingle mode fiber 4E9/125/900, OS1 and OS2

design of the FOC coreSolid core, diameter 900 µm

design of the fiber-optic cablesegmentable

of the optical fibers9 µm

of the optical fiber sheath125 µm

of the FOC core sheath2.2 mm

outer diameter / of the cable9 mm

of the fiber-optic cable coreQuartz glass

of the optical fiber sheathQuartz glass

of the FOC core sheathPE flame retardant

of the fiber-optic cable sheathPE flame retardant

of the strain reliefAramid fibers, also central support element and glass roving

of the FOC core sheathorange/black, with direction arrow (core pairs numbered with 1 and 2)

of cable sheathBlack

with single bend / minimum permissible90 mm

with multiple bends / minimum permissible135 mm

during installation / short-term2000 N

during operation / maximum1000 N

short-term shear force per length600 N/cm

continuous shear force per length200 N/cm

weight per length87 kg/km

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

during installation-20 ... +60 °C

fire behaviorflame-resistant acc. to IEC 60332-3-24

class of burning behaviour / according to EN 13501-6Cca - s1a,d0,a1

to mineral oilconditional resistance

to greaseconditional resistance

to waterresistant

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeYes

silicon-freeYes

product component / rodent protectionYes

for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum26000 m

for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum5000 m

for glass FOC / for 10GBaseLR / for Industrial Ethernet / maximum10000 m

for glass FOC / with 10GBaseER / for Industrial Ethernet / maximum40000 m

for glass FOC / with PROFIBUS / maximum15000 m

standards, specifications, approvals

UL approvalYes; OFN/OFNG acc. to UL 1651

RoHS conformityYes
