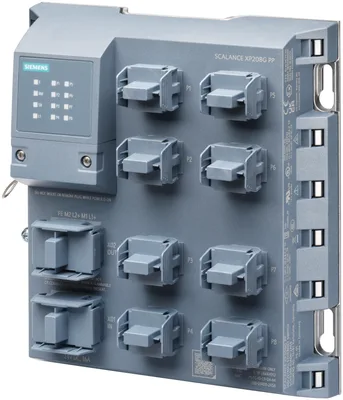

Siemens 6GK5208-0JA00-2AS6

SCALANCE XP208G PP, managed layer 2 IE switch, 8x10/100/1000 Mbps, AIDA push/pull ports, IP65, -40 °C to +70 °C, power supply in/out, LED diagnostics, PROFINET IO device, network management, can be operated in redundant ring, dust caps, C-PLUG optional

SiemensMFR # 6GK5208-0JA00-2AS6SKU # YLSMWTLI8LRSOFF

product brand nameSCALANCE

product type designationXP208G PP

transfer rate10, 100, 1000 Mbit/s

number of 10/100/1000 Mbit/s RJ45 ports8; RJ45, push-pull

for operator console0

for signaling contact0

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5208-0JA00-2AS6

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXP208G PP

transfer rate

transfer rate10, 100, 1000 Mbit/s

interfaces / for communication / integrated

for network components or terminal equipment8; RJ45, push-pull

number of 10/100/1000 Mbit/s RJ45 ports8; RJ45, push-pull

interfaces / other

for operator console0

for signaling contact0

for power supply2

for power supply5-pole push-pull connector PRO socket

C-PLUGYes

product function / device replacement with replacement of the storage mediumYes

supply voltage, current consumption, power loss

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value7.7 W

consumed current / 1 / at rated supply voltage / maximum0.32 A

supply voltage / 1 / voltage range19.2 ... 31.2

consumed current / 1 / maximum0.32 A

type of electrical connection / 1 / for power supply5-pole push-pull connector PRO socket

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltage1.5 A (non-replaceable fuse F)

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP65

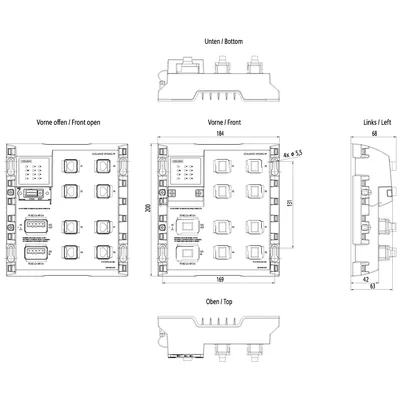

design, dimensions and weights

designcompact

width185 mm

height200 mm

depth63 mm

net weight1.05 kg

material / of the enclosureAluminum

wall mountingYes

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

QoS according to DSCPYes

Cut Through switching methodNo

Store & Forward switching methodYes

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

RMONYes

SMTP serverNo

port mirroringYes

multiport mirroringYes

CoSYes

with IRT / PROFINET IO switchNo

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

network load class / according to PROFINETIII

telegram length / for Ethernet / maximum10240 byte

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

SFTPYes

BOOTPYes

GMRPYes

DCPYes

LLDPYes

EtherNet/IPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

IGMP (snooping/querier)Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

SysLogYes

product functions / VLAN

VLAN - port basedYes

VLAN - protocol-basedNo

VLAN - IP-basedNo

number of VLANs / maximum257

number of VLANs - dynamic / maximum257

number of VLANs / at ring redundancy (HRP; MRP; standby link)257

product functions / DHCP

DHCP serverYes

DHCP clientYes

DHCP Option 82Yes

DHCP Option 66Yes

DHCP Option 67Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode

of the PROFINET IO device / is supported / H-Sync forwardingYes

of the PROFINET IO device / is supported / PROFINET system redundancyYes

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyYes

redundancy procedure STPYes

redundancy procedure RSTPYes

redundancy procedure RSTP+Yes

redundancy procedure MSTPYes

Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes

Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No

passive listeningYes

LACPYes

system modification during operation

product function / configuration in RUN via CiR/H-CiRYes

product functions / security

IEEE 802.1x (radius)Yes

RADIUS clientYes

broadcast/multicast/unicast limiterYes

broadcast blockingYes

SSHYes

SSLYes

product functions / time

SICLOCK supportYes

NTP-clientYes

SNTP clientYes

NTPYes

SNTPYes

IEEE 1588 profile defaultYes

standards, specifications, approvals

CE markingYes

UKCA markingYes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4 (Class A)

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL-61010-2 E85972; UL 62368-1 E115352, CSA C22.2 No. 62368-1

standards, specifications, approvals / hazardous environments

ATEXYes

UKEXYes

IECExYes

FM registrationYes

standards, specifications, approvals / other

RoHS conformityYes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total239.626 kg

during manufacturing27.2 kg

during operation211 kg

after end of life0.838 kg

product functions / general

MTBF55 a

reference temperature / for MTBF determination40 °C

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing27.2 kg

global warming potential [CO2 eq] / during sales0.588 kg

global warming potential [CO2 eq] / during operation211 kg

global warming potential [CO2 eq] / after end of life0.838 kg

global warming potential [CO2 eq] / total239.626 kg
