How can I get a price quote for Siemens 6GK5208-0HA10-2ES6?

You can request a fast quote for Siemens 6GK5208-0HA10-2ES6 from Yılsa Engineering. Reference part number YLS05P6FXEPTM7A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5208-0HA10-2ES6 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5208-0HA10-2ES6 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5208-0HA10-2ES6?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

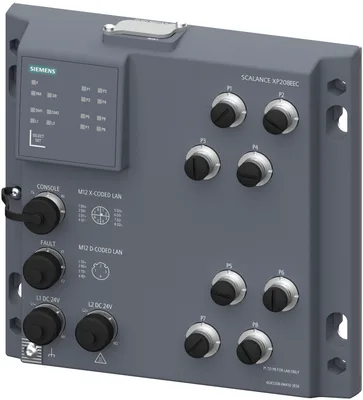

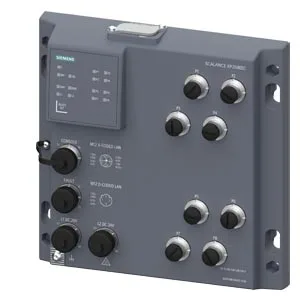

Siemens 6GK5208-0HA10-2ES6

SCALANCE XP208EEC, IP65, managed layer 2 IE switch, railway approval, 6x 10/100 Mbps, 2x 1000 Mbps, M12 ports, LED diagnostics, error signaling contact, redundant power supply, PROFINET IO device, network management, can be operated in redundant ring, dust caps, including -40 °C to +70 °C, C-PLUG optional.

SiemensMFR # 6GK5208-0HA10-2ES6SKU # YLS05P6FXEPTM7A

product brand nameSCALANCE

product type designationXP208EEC

transfer rate10, 100, 1000 Mbit/s

for operator console1

for signaling contact1

for power supply2

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5208-0HA10-2ES6

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXP208EEC

transfer rate

transfer rate10, 100, 1000 Mbit/s

interfaces / for communication / integrated

for network components or terminal equipment8; M12

number of 10/100 Mbit/s M12-ports (D-coded)6

number of 10/100/1000 Mbit/s M12-ports (X-coded)2

interfaces / other

for operator console1

for signaling contact1

for power supply2

for operator console5-pole M12 socket (A-coded)

for signaling contact5-pole M12 plug (B-coded)

for power supply4-pole M12 plug (L-coded)

C-PLUGYes

product function / device replacement with replacement of the storage mediumYes

at DC / rated value24 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V; XP-200EEC with EN 50155 supports the voltage range 16.8 ... 31.2 V DC

power loss [W] / 1 / rated value4.8 W

consumed current / 1 / at rated supply voltage / maximum0.2 A

supply voltage / 1 / voltage range19.2 ... 31.2

consumed current / 1 / maximum0.2 A

type of electrical connection / 1 / for power supply4-pole M12 plug (L-coded)

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltage4 A / 60 V

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

noteEEC variants with EN 50155 support for 10 minutes: +85 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP65

design, dimensions and weights

designcompact

width200 mm

height200 mm

depth49 mm

net weight1.8 kg

product feature / conformal coatingYes

material / of the enclosureAluminum

fastening methodmodule rack mounting, back wall mounting

wall mountingYes

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

QoS according to DSCPYes

Cut Through switching methodNo

Store & Forward switching methodYes

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

RMONYes

SMTP serverNo

port mirroringYes

multiport mirroringYes

CoSYes

with IRT / PROFINET IO switchNo

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

network load class / according to PROFINETIII

telegram length / for Ethernet / maximum10240 byte

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

SFTPYes

BOOTPYes

GMRPYes

DCPYes

LLDPYes

EtherNet/IPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

IGMP (snooping/querier)Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

SysLogYes

product functions / VLAN

VLAN - port basedYes

VLAN - protocol-basedNo

VLAN - IP-basedNo

number of VLANs / maximum257

number of VLANs - dynamic / maximum257

number of VLANs / at ring redundancy (HRP; MRP; standby link)257

product functions / DHCP

DHCP serverYes

DHCP clientYes

DHCP Option 82Yes

DHCP Option 66Yes

DHCP Option 67Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode

of the PROFINET IO device / is supported / H-Sync forwardingYes

of the PROFINET IO device / is supported / PROFINET system redundancyYes

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyYes

redundancy procedure STPYes

redundancy procedure RSTPYes

redundancy procedure RSTP+Yes

redundancy procedure MSTPYes

Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes

Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No

passive listeningYes

LACPYes

system modification during operation

product function / configuration in RUN via CiR/H-CiRYes

product functions / security

IEEE 802.1x (radius)Yes

RADIUS clientYes

broadcast/multicast/unicast limiterYes

broadcast blockingYes

SSHYes

SSLYes

product functions / time

SICLOCK supportYes

NTP-clientYes

SNTP clientYes

NTPYes

SNTPYes

IEEE 1588 profile defaultYes

standards, specifications, approvals

CE markingYes

UKCA markingYes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4 (Class A)

for immunity to EMCEN 61000-6-2

for safety / from CSA and ULUL 62368-1 E115352, CSA C22.2 No. 62368-1

standards, specifications, approvals / other

railway application in accordance with EN 50155Yes; OT4, ST1, H1, S2, C1, L4, PC2

fire protection in accordance with EN 45545-2Yes; Class HL1 - HL3

RoHS conformityYes

standards, specifications, approvals / marine classification

certificate of suitability / shipbuilding approval / noteCertifications marked 'No' are currently under renewal.

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Chinese Classification Society (CCS)No

Det Norske Veritas (DNV)No

Korean Register of Shipping (KRS)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No

Royal Institution of Naval Architects (RINA)Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

product functions / general

MTBF52 a

reference temperature / for MTBF determination40 °C

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022
