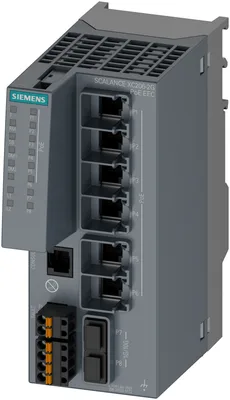

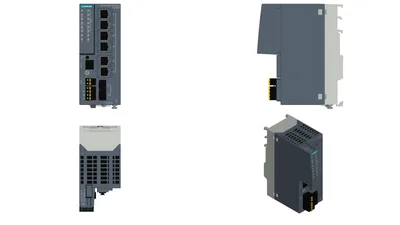

Siemens 6GK5206-2RS00-5FC2

SCALANCE XC206-2G PoE EEC Manage- able Layer 2 IE PoE Switch; IEC 62443-4-2 certified; 6x 10/100/1000 Mbps RJ45 PoE ports acc. to IEEE802.3at; 2 ports of which according to IEEE802.3bt; 2x 1,000, 10,000 Mbps SFP+; PoE support for 54 V DC infeed; 240 W PoE power; can be distributed among all PoE ports; 1 x console port; diagnostics LED, redundant power supply; Temp. range -40 °C to +60 °C; mounting DIN rail/S7 mounting rail/wall; redundancy functions; Office Features (RSTP, VLAN,..); Painted printed circuit boards; PROFINET device; Ethernet/(*)

SiemensMFR # 6GK5206-2RS00-5FC2SKU # YLSGDXJ1YZOWBJQ

product brand nameSCALANCE

product type designationXC206-2G PoE EEC

transfer rate10, 100, 1000 Mbit/s

transfer rate10 Gbit/s

with securing collar / with PoE6

for SFP2

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5206-2RS00-5FC2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXC206-2G PoE EEC

transfer rate

transfer rate10, 100, 1000 Mbit/s

transfer rate10 Gbit/s

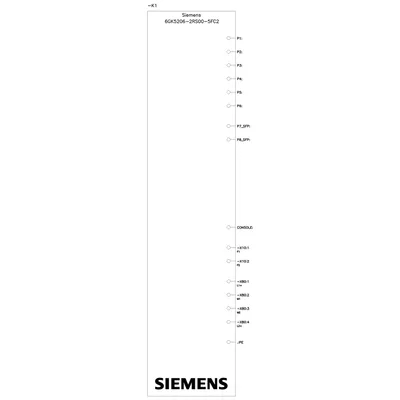

interfaces / for communication / integrated

for network components or terminal equipment6; RJ45

with securing collar4 PoE ports according to IEEE 802.3at (30 W), 2 PoE ports according to IEEE 802.3bt (60 W)

with securing collar / with PoE6

for SFP2

interfaces / for communication / plug-in

for SFP+2; SFPs with 1000 Mbit/s or 10,000 Mbit/s possible; 100 Mbit/s with SFP991-1(LD) A possible

interfaces / other

for operator console1

for signaling contact1

for operator consoleRJ11

for signaling contact2-pole terminal block

for power supply4-pole terminal block

C-PLUGYes

at DC / rated value54 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes

total / maximum260 W

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value54 V

power loss [W] / 1 / rated value10 W

supply voltage / 1 / voltage range52 ... 57

consumed current / 1 / maximum5 A

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltage15 A / 125 V

ambient conditions

during operation-40 ... +60 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

noteinstallation position and SFPs used during the operation have to be considered (see manual)

installation altitude / at height above sea level / maximum4000 m

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

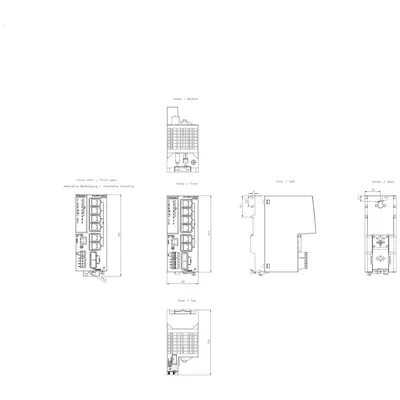

design, dimensions and weights

designcompact

width60 mm

height147 mm

depth125 mm

net weight0.54 kg

product feature / conformal coatingYes

material / of the enclosurePolycarbonate (PC-GF10) / pressure die cast aluminum

35 mm DIN-rail mountingYes

wall mountingYes

S7-300 rail mountingYes

S7-1500 rail mountingYes

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

QoS according to DSCPYes

Cut Through switching methodNo

Store & Forward switching methodYes

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

RMONYes

SMTP serverNo

port mirroringYes

multiport mirroringYes

CoSYes

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

network load class / according to PROFINETIII

telegram length / for Ethernet / maximum10240 byte

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

SFTPYes

BOOTPYes

GMRPYes

DCPYes

LLDPYes

EtherNet/IPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

IGMP (snooping/querier)Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

SysLogYes

product functions / VLAN

VLAN - port basedYes

VLAN - protocol-basedNo

VLAN - IP-basedNo

number of VLANs / maximum257

number of VLANs - dynamic / maximum257

number of VLANs / at ring redundancy (HRP; MRP; standby link)257

product functions / DHCP

DHCP serverYes

DHCP clientYes

DHCP Option 82Yes

DHCP Option 66Yes

DHCP Option 67Yes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode

of the PROFINET IO device / is supported / H-Sync forwardingYes

of the PROFINET IO device / is supported / PROFINET system redundancyYes

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyYes

redundancy procedure STPYes

redundancy procedure RSTPYes

redundancy procedure RSTP+Yes

redundancy procedure MSTPYes

Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes

Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No

passive listeningYes

LACPYes

system modification during operation

product function / configuration in RUN via CiR/H-CiRYes

product functions / security

IEEE 802.1x (radius)Yes

RADIUS clientYes

broadcast/multicast/unicast limiterYes

broadcast blockingYes

SSHYes

SSLYes

product functions / time

SICLOCK supportYes

NTP-clientYes

SNTP clientYes

NTPYes

SNTPYes

IEEE 1588 profile defaultYes

standards, specifications, approvals

CE markingYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

product conformity / according to EMC-guideline2014/30/EU

for EMC interference emissionEN 61000-6-4, EN 50121-4

for immunity to EMCEN 61000-6-2, EN 50121-4

standards, specifications, approvals / hazardous environments

ATEXYes

UKEXYes

IECExYes

CCC / for hazardous zone according to GB standardYes

FM registrationYes

standards, specifications, approvals / other

railway application in accordance with EN 50121-4Yes

IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total491.2 kg

during manufacturing52.28 kg

during operation438.3 kg

after end of life0.62 kg

product functions / general

MTBF37 a

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing52.28 kg

global warming potential [CO2 eq] / during operation438.3 kg

global warming potential [CO2 eq] / after end of life0.62 kg

global warming potential [CO2 eq] / total491.2 kg
