How can I get a price quote for Siemens 6GK6000-8HS01-0AA0?

You can request a fast quote for Siemens 6GK6000-8HS01-0AA0 from Yılsa Engineering. Reference part number CEY-8EF3B0385448. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK6000-8HS01-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK6000-8HS01-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK6000-8HS01-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

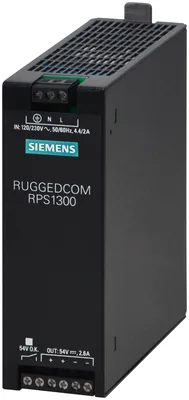

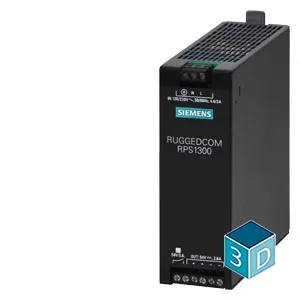

Siemens 6GK6000-8HS01-0AA0

54 V/2.6A Power Supply, INPUT: 120 / 230 V AC, OUTPUT: 54 V/2.6 A DC, -40C to +75C, Suitable for RUGGEDCOM POE applications

SiemensMFR # 6GK6000-8HS01-0AA0SKU # CEY-8EF3B0385448

product brand nameRUGGEDCOM

suitability for usePoE Power Supply

suitability for operationRS900GP, RSG920P

voltage curve / at inputAC

supply voltage / 1 / rated value120 V

supply voltage / 1 / rated value85 ... 264 V

Have questions?Chat on WhatsApp

About This Product

54 V/2.6A Power Supply, INPUT: 120 / 230 V AC, OUTPUT: 54 V/2.6 A DC, -40C to +75C, Suitable for RUGGEDCOM POE applications

Siemens 6GK6000-8HS01-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameRUGGEDCOM

type of current supplyInput: AC 120/230 V, Output: DC 54 V / 2,6 A

suitability for usePoE Power Supply

suitability for operationRS900GP, RSG920P

electrical data / input

voltage curve / at inputAC

supply voltage / 1 / rated value120 V

supply voltage / 1 / rated value85 ... 264 V

type of voltage / 1 / of the supply voltageAC 1-phase

consumed current / 1 / at rated supply voltage / maximum4.4 A

design of input / wide range inputYes

buffering time / for rated value of the output current / in the event of power failure / minimum50 ms

current limitation / of inrush current / at 25 °C / maximum57.6 A

fuse protection type / at inputFuse T 6.3A soldered

electrical data / output

voltage curve / at outputControlled, isolated DC voltage

1 / at DC / rated value54 V

display version / for normal operationLED green for DC ok

behavior of the output voltage / when switching onOvershoot of Ua < 2 %

startup delay time / maximum1.5 s

voltage increase time / of the output voltage / maximum15 ms

rated value2.6 A

rated range0 ... 4.8 A

supplied active power / typical140 W

product feature / parallel switching of channelsNo

efficiency in percent91.6 %

power loss [W]13 W

electrical data / closed-loop control

relative overall tolerance / of the voltage1 %

residual ripple / maximum0.05 V

voltage peak / maximum0.2 V

on slow fluctuation of input voltage0.2 %

on slow fluctuation of ohm loading0.5 %

load step of resistive load 50/100/50 % / typical0.5 %

with rapid fluctuation of the input voltage by +/- 15% / typical0.3 %

load step 50 to 100% / typical0.5 ms

load step 100 to 50% / typical0.5 ms

electrical data / protection and monitoring

design of the overvoltage protection / at output< 60 V

response value current limitation / typical4.8 A

property of the output / short-circuit proofYes

design of short-circuit protectionElectronic overload and short-circuit protection, automatic restart "hiccup"

electrical data / safety

galvanic isolation / between input and outputYes

galvanic isolationSafety extra-low output voltage Uout acc. to EN 60950-1

operating resource protection classClass I

maximum3.5 mA

typical1 mA

interfaces

for power supply3

for signaling contact2

for signaling contactScrew terminal 0.5 - 2.5 mm²

at inputFE / L / N screw-type terminal 0.5 - 2.5 mm²

at output2x + / 2x - , screw-type terminal 0.5 - 2.5 mm²

signal inputs/outputs

product component / signaling contactYes

relay designNormal open contact (N/O)

at DC / rated value24 V

at DC / maximum60 V

at DC / maximum0.3 A

at DC / at 30 V / maximum0.3 A

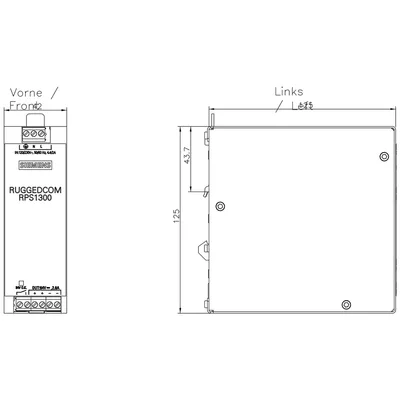

design, dimensions and weights

width42 mm

height125 mm

depth125 mm

net weight0.5 kg

product feature / of the enclosure / housing can be lined upYes

19-inch installationNo

wall mountingNo

35 mm DIN-rail mountingYes

S7-300 rail mountingNo

ambient conditions

during operation-40 ... +75 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

noteConvection, clearance above/below required

relative humidity / at 25 °C / without condensation / during operation / maximum95 %

environmental category / according to IEC 60721Climate class 3K3, without condensation

protection class IPIP20

standards, specifications, approvals

for safety / from CSA and ULcULus listed (UL508, CSA C22.2 No. 107.1)

for emitted interferenceEN 61000-6-4: 2007

for interference immunityEN 61000-6-2

certificate of suitabilityEN 61000-6-4: 2007

CE markingYes

C-TickYes
