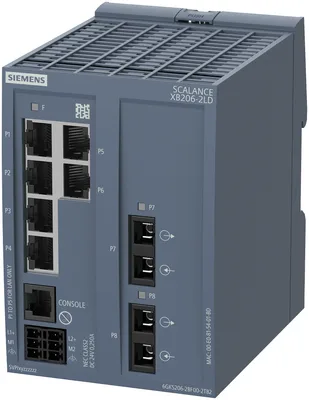

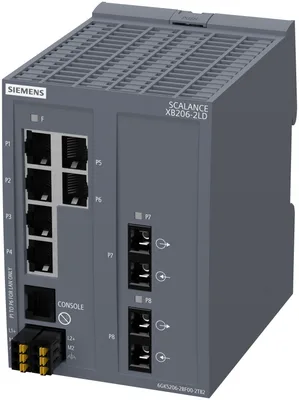

Siemens 6GK5206-2BF00-2TB2
SCALANCE XB206-2LD managed Layer 2 IE Switch 6x 10/100 Mbps RJ45 ports 2x SM FO SC port 1x console port, diagnostics LED redundant power supply; IEC 62443-4-2 certified; temperature range 0 °C to +60 °C; DIN-rail mounting; PROFINET IO device; EtherNet/IP-compliant; default EtherNet/IP
product brand nameSCALANCE
product type designationXB206-2LD (E/IP def.)
transfer rate10, 100 Mbit/s
for single mode (LD)2
for operator console1
for power supply1
About This Product
SCALANCE XB206-2LD managed Layer 2 IE Switch 6x 10/100 Mbps RJ45 ports 2x SM FO SC port 1x console port, diagnostics LED redundant power supply; IEC 62443-4-2 certified; temperature range 0 °C to +60 °C; DIN-rail mounting; PROFINET IO device; EtherNet/IP-compliant; default EtherNet/IP
Siemens 6GK5206-2BF00-2TB2
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product type designation
product brand nameSCALANCE
product type designationXB206-2LD (E/IP def.)
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment6; RJ45
for single mode (LD)2
transmission method / of the optical interface100BaseLX LD
interfaces / other
for operator console1
for power supply1
for operator consoleRJ11
for management purposesRJ45
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyYes
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value7.2 W
supply voltage / 1 / voltage range19.2 ... 28.8
consumed current / 1 / maximum0.3 A
type of electrical connection / 1 / for power supply6-pole terminal block
product component / 1 / fusing at power supply inputYes
ambient conditions
during operation0 ... 60 °C
during storage-40 ... +70 °C
during transport-40 ... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
designcompact
width80 mm
height117 mm
depth109 mm
net weight0.35 kg
material / of the enclosurePolycarbonate (PC-GF10)
35 mm DIN-rail mountingYes
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIYes
web-based managementYes
MIB supportYes
TRAPs via emailYes
configuration with STEP 7Yes
RMONYes
port mirroringYes
multiport mirroringNo
CoSYes
PROFINET IO diagnosisYes
switch-managedYes
PROFINET conformity classB
network load class / according to PROFINETIII
telegram length / for Ethernet / maximum1632 byte
TelnetYes
HTTPYes
HTTPSYes
TFTPYes
SFTPYes
BOOTPYes
DCPYes
LLDPYes
EtherNet/IPYes
SNMP v1Yes
SNMP v2Yes
SNMP v3Yes
IGMP (snooping/querier)Yes
I&M0 - device-specific informationYes
I&M1 - higher level designation/location designationYes
product functions / diagnostics
port diagnosticsYes
statistics Packet SizeYes
statistics packet typeYes
error statisticsYes
SysLogYes
product functions / VLAN
VLAN - port basedYes
number of VLANs / maximum257
number of VLANs - dynamic / maximum257
number of VLANs / at ring redundancy (HRP; MRP; standby link)257
product functions / DHCP
DHCP clientYes
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Yes
media redundancy protocol (MRP) with redundancy managerYes
Media Redundancy Protocol Interconnection (MRP-I)Yes; LC mode
of the PROFINET IO device / is supported / PROFINET system redundancyNo
ring redundancyYes
high speed redundancy protocol (HRP) with redundancy managerYes
high speed redundancy protocol (HRP) with standby redundancyYes
redundancy procedure STPYes
redundancy procedure RSTPYes
redundancy procedure RSTP+Yes
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes
passive listeningYes
product functions / security
IEEE 802.1x (radius)Yes
RADIUS clientYes
broadcast/multicast/unicast limiterYes
broadcast blockingYes
SSHYes
SSLYes
product functions / time
SICLOCK supportYes
NTP-clientYes
SNTP clientYes
SNTPYes
standards, specifications, approvals
CE markingYes
UKCA markingYes
cULus approvalYes
KC approvalYes
Regulatory Compliance Mark (RCM)Yes
for EMC interference emissionEN 61000-6-4 (Class A)
for immunity to EMCEN 61000-6-2
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1
standards, specifications, approvals / hazardous environments
CCC / for hazardous zone according to GB standardYes
standards, specifications, approvals / other
RoHS conformityYes
IT security for industrial automation systems / according to IEC 62443-4-2:2019Yes
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationYes
total260.76 kg
during manufacturing40.94 kg
during operation219.31 kg
after end of life0.51 kg
product functions / general
MTBF50 a
warranty period5 a
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing40.94 kg
global warming potential [CO2 eq] / during operation219.31 kg
global warming potential [CO2 eq] / after end of life0.51 kg
global warming potential [CO2 eq] / total260.76 kg
Accessories 120
Genuine accessories that can be used with the Siemens 6GK5206-2BF00-2TB2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| 6GK1900-0AQ10 | Aksesuar | |
| 6GK1901-1BB10-2AA0 | Aksesuar | |
| 6GK1901-1BB10-2AB0 | Aksesuar | |
| 6GK1901-1BB10-2AE0 | Aksesuar | |
| 6GK1901-1BB12-2AA0 | Aksesuar | |
| 6GK1901-1BB12-2AB0 | Aksesuar | |
| 6GK1901-1BB12-2AE0 | Aksesuar | |
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK5980-0BB10-0AA5 | Aksesuar | |
| 6GK5980-1DB10-0AA5 | Aksesuar | |
| 6GK5980-3BB00-0AA5 | Aksesuar · Cables · serial cable | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6GK5980-4AA00-0AA5 | Aksesuar | |
| 6GK5992-1AG00-8AA0 | Aksesuar | |
| 6GK5992-1AL00-8FA0 | Aksesuar | |
| 6GK5992-1AL00-8RA0 | Aksesuar | |
| 6GK5992-1AL00-8TA0 | Aksesuar | |
| 6GK5992-1AM00-8FA0 | Aksesuar | |
| 6GK5992-1AM00-8RA0 | Aksesuar | |
| 6GK5992-1AM00-8TA0 | Aksesuar | |
| 6GK5992-1AM30-8AA0 | Aksesuar | |
| 6GK5992-1AN00-8AA0 | Aksesuar | |
| 6GK5992-1AP00-8AA0 | Aksesuar | |
| 6GK5992-1AQ00-8AA0 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN12 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5MH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1871-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6GK5991-1AD00-8FA0 | Aksesuar | |
| 6GK5991-1AE00-8AA0 | Aksesuar | |
| 6GK5991-1AE30-8AA0 | Aksesuar | |
| 6GK5991-1AF00-8FA0 | Aksesuar | |
| 6GK5991-1AD00-8AA0 | Aksesuar | |
| 6GK5991-1AD00-8AC0 | Aksesuar | |
| 6GK5991-1AF00-8AA0 | Aksesuar | |
| 6GK5991-1AF00-8AC0 | Aksesuar | |
| 6GK5992-1AL00-8AA0 | Aksesuar | |
| 6GK5992-1AL00-8AC0 | Aksesuar | |
| 6GK5992-1AM00-8AA0 | Aksesuar | |
| 6GK5992-1AM00-8AC0 | Aksesuar | |
| 6XV1801-2A | Aksesuar · Cables · power cables | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1843-5EH10-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH10-0CA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH20-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH20-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH30-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5EH30-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0CA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH20-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH20-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH30-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GN10 | Aksesuar · Cables · network cable electrical |
Related Products
View Details
Siemens
6GK1411-5AB10
MFR #6GK1411-5AB10
SKU #YLSWCVVF4PMPV5M
View Details
Siemens
6GK1411-5AC00
MFR #6GK1411-5AC00
SKU #YLSX1BWVS5DB97H
View Details
Siemens
6GK1411-5BB00
MFR #6GK1411-5BB00
SKU #YLS8ZXA1XMOM1Z2
View Details
Siemens
6GK1562-3AA01
MFR #6GK1562-3AA01
SKU #YLSUPE0SE2ALSG
View Details
Siemens
6GK1571-1AA00-0AD0
MFR #6GK1571-1AA00-0AD0
SKU #YLSNEGUF7BUFUDI
View Details
Siemens
6GK1700-0AA16-0AA0
MFR #6GK1700-0AA16-0AA0
SKU #YLSSJRML6XO3MG
View Details
Siemens
6GK1700-0AA17-0AA0
MFR #6GK1700-0AA17-0AA0
SKU #YLSYL6QBEDHUOAQ
View Details
Siemens
6GK1700-0AA18-0AA0
MFR #6GK1700-0AA18-0AA0
SKU #YLSMHAXXPQWTSZT
View Details
Siemens
6GK1700-0AA23-0AA0
MFR #6GK1700-0AA23-0AA0
SKU #YLSEYSK9HEFTQ3
Featured Products
View Details
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
View Details
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
View Details
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
View Details
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
View Details
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
View Details
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Related Searches
Siemens 6GK5206-2BF00-2TB2 priceSiemens 6GK5206-2BF00-2TB2 quotebuy Siemens 6GK5206-2BF00-2TB26GK5206-2BF00-2TB2 price6GK5206-2BF00-2TB2 stock availabilitySiemens spare partsSiemens 6GK5206-2BF00-2TB2 equivalentSiemens 6GK5206-2BF00-2TB2 specifications
