How can I get a price quote for Siemens 6GK5991-1AD00-8FA0?

You can request a fast quote for Siemens 6GK5991-1AD00-8FA0 from Yılsa Engineering. Reference part number YLS1C9S8WARYWBJ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5991-1AD00-8FA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5991-1AD00-8FA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5991-1AD00-8FA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

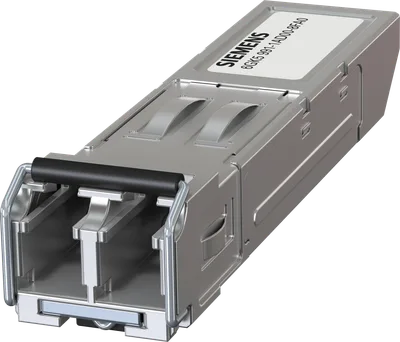

Siemens 6GK5991-1AD00-8FA0

SCALANCE X accessory; Plug-in transceiver SFP991-1 with conformal coating; 1x 100 Mbps LC port, optical; multimode glass up to max. 5 km (with OM2++ fiber)

SiemensMFR # 6GK5991-1AD00-8FA0SKU # YLS1C9S8WARYWBJ

product brand nameSCALANCE

number of 100 Mbit/s LC ports1

wavelength / of the optical interface1300 nm; Multi-mode

of the transmitter output / minimum-24 dB

of the transmitter output / maximum-14 dB

of the receiver input / maximum-12 dB

Have questions?Chat on WhatsApp

About This Product

SCALANCE X accessory; Plug-in transceiver SFP991-1 with conformal coating; 1x 100 Mbps LC port, optical; multimode glass up to max. 5 km (with OM2++ fiber)

Siemens 6GK5991-1AD00-8FA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

interfaces

number of electrical/optical connections / for network components or terminal equipment / maximum1

number of optical interfaces / for network components or terminal equipment / maximum1

number of 100 Mbit/s LC ports1

design of the optical interface / for network components or terminal equipmentLC

wavelength / of the optical interface1300 nm; Multi-mode

of the transmitter output / minimum-24 dB

of the transmitter output / maximum-14 dB

of the receiver input / maximum-12 dB

optical sensitivity relating to 1 mW / of the receiver input / minimum-31 dB

attenuation factor / of the FOC transmission link / minimum necessary0 dB

range / at the optical interface / depending on the optical fiber used0 ... 5 km

transmission method / for connection type 1100BASE-FX

ambient conditions

during operation-40 ... +85 °C

during storage-40 ... +85 °C

during transport-40 ... +85 °C

noteA maximum operating temperature of +85 °C is permissible for a duration of 16 hours

relative humidity / at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

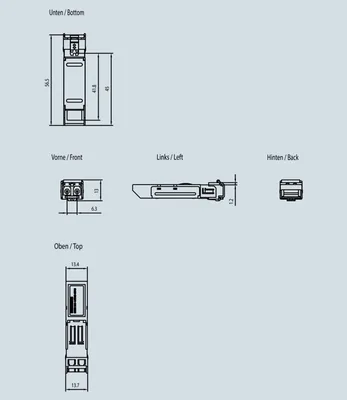

design, dimensions and weights

designSFP Module

width14 mm

height9 mm

depth57 mm

net weight0.01 kg

product feature / conformal coatingYes

fastening methodlatched

standards, specifications, approvals

for FMFM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4

for hazardous zoneEN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X

for safety / from CSA and ULUL 62368-1 and CAN/CSA C22.2 No. 62368-1:19

for emitted interferenceEN 61000-6-4:2007 (Class A)

for interference immunityEN 61000-6-2:2005

certificate of suitabilityEN 61000-6-2:2005, EN 61000-6-4:2007

CE markingYes

C-TickYes

KC approvalNo

CCC / for hazardous zone according to GB standardYes; GB3836.1, GB3836.8

CCC / for hazardous zone according to GB standard / as markingEx nA IIC T4 Gc

MTBF490 a

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total11.56 kg

during manufacturing1.7 kg

during operation9.85 kg

after end of life0.01 kg

Accessories 1

Genuine accessories that can be used with the Siemens 6GK5991-1AD00-8FA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
