How can I get a price quote for Siemens 6GK5204-0BA00-2AF2?

You can request a fast quote for Siemens 6GK5204-0BA00-2AF2 from Yılsa Engineering. Reference part number CEY-937FC7800AF3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5204-0BA00-2AF2 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5204-0BA00-2AF2 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5204-0BA00-2AF2?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

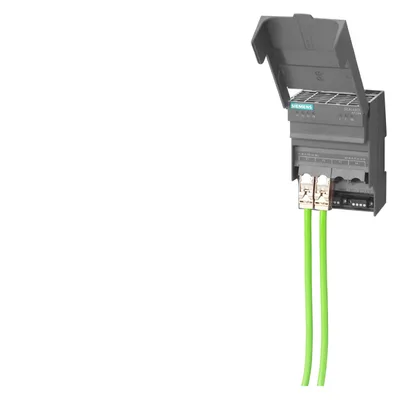

Siemens 6GK5204-0BA00-2AF2

SCALANCE XF204, flat, Managed IE switch, 4x 10/100 Mbit/s RJ45 ports, Error signaling contact with set pushbutton, Redundant power supply, PROFINET IO device network management, Redundancy Manager integrated, incl. electron. manual on CD-ROM, C-plug optional.

SiemensMFR # 6GK5204-0BA00-2AF2SKU # CEY-937FC7800AF3

product brand nameSCALANCE

product type designationXF204

transfer rate10, 100 Mbit/s

for signaling contact1

for power supply1

for signaling contact2-pole terminal block

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5204-0BA00-2AF2

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product type designation

product brand nameSCALANCE

product type designationXF204

transfer rate

transfer rate10, 100 Mbit/s

interfaces / for communication / integrated

for network components or terminal equipment4

interfaces / other

for signaling contact1

for power supply1

for signaling contact2-pole terminal block

for power supply4-pole terminal block

C-PLUGYes

at DC / rated value24 V

at DC / maximum0.1 A

supply voltage, current consumption, power loss

product component / connection for redundant voltage supplyYes

type of voltage / 1 / of the supply voltageDC

supply voltage / 1 / rated value24 V

power loss [W] / 1 / rated value2.64 W

supply voltage / 1 / voltage range18 ... 32

consumed current / 1 / maximum0.11 A

type of electrical connection / 1 / for power supply4-pole terminal block

product component / 1 / fusing at power supply inputYes

fuse protection type / 1 / at input for supply voltage1,1 A / 33 V

ambient conditions

during operation-40 ... +60 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

noteIf the IE-Switch XF-200 is installed horizontally, a maximum ambient temperature of +40 °C is permitted

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

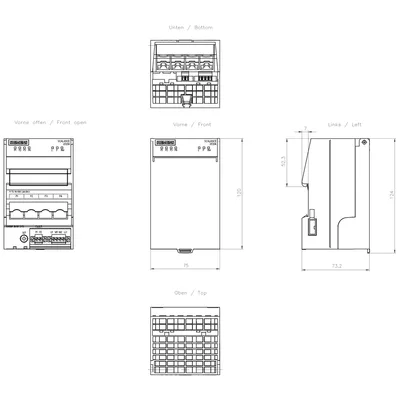

design, dimensions and weights

designflat

width75 mm

height125 mm

depth73 mm

net weight0.25 kg

35 mm DIN-rail mountingYes

wall mountingNo

S7-300 rail mountingNo

S7-1500 rail mountingNo

product features, product functions, product components / general

cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50

cascading in cases of star topologyany (depending only on signal propagation time)

product functions / management, configuration, engineering

CLIYes

web-based managementYes

MIB supportYes

TRAPs via emailYes

configuration with STEP 7Yes

port mirroringYes

multiport mirroringNo

with IRT / PROFINET IO switchNo

PROFINET IO diagnosisYes

switch-managedYes

PROFINET conformity classB

TelnetYes

HTTPYes

HTTPSYes

TFTPYes

FTPYes

BOOTPNo

DCPYes

LLDPYes

SNMP v1Yes

SNMP v2Yes

SNMP v3Yes

I&M0 - device-specific informationYes

I&M1 - higher level designation/location designationYes

product functions / diagnostics

port diagnosticsYes

statistics Packet SizeYes

statistics packet typeYes

error statisticsYes

product functions / DHCP

DHCP clientYes

product functions / redundancy

protocol / is supported / Media Redundancy Protocol (MRP)Yes

media redundancy protocol (MRP) with redundancy managerYes

ring redundancyYes

high speed redundancy protocol (HRP) with redundancy managerYes

high speed redundancy protocol (HRP) with standby redundancyNo

Parallel Redundancy Protocol (PRP)/operation in the PRP-networkYes

Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)No

passive listeningYes

product functions / security

SSHYes

product functions / time

SICLOCK supportYes

NTPNo

SNTPYes

standards, specifications, approvals

CE markingYes

cULus approvalYes

KC approvalYes

Regulatory Compliance Mark (RCM)Yes

for EMC interference emissionEN 61000-6-4:2001 (Class A)

for immunity to EMCEN 61000-6-4:2001

for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 No. 60950-1

standards, specifications, approvals / hazardous environments

ATEXYes

UKEXYes

IECExYes

ULhazloc approvalYes

CCC / for hazardous zone according to GB standardYes

FM registrationYes

standards, specifications, approvals / other

railway application in accordance with EN 50155No

railway application in accordance with EN 50124-1No

RoHS conformityYes

standards, specifications, approvals / marine classification

Polski Rejestr Statkow (PRS)Yes

Royal Institution of Naval Architects (RINA)Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product DeclarationYes

total100.09 kg

during manufacturing16.65 kg

during operation82.99 kg

after end of life0.45 kg

product functions / general

MTBF48.03 a

warranty period5 a

product function / is supported / identification linkYes; acc. to IEC 61406-1:2022

Approvals / Certificates

global warming potential [CO2 eq] / during manufacturing16.65 kg

global warming potential [CO2 eq] / during operation82.99 kg

global warming potential [CO2 eq] / after end of life0.45 kg

global warming potential [CO2 eq] / total100.09 kg

Accessories 18

Genuine accessories that can be used with the Siemens 6GK5204-0BA00-2AF2 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK1900-0AB00	Aksesuar
6GK1901-1BB50-0AA0	Aksesuar
6XV1812-8A	Aksesuar · Cables · power cables
6GK1901-1GA00	Aksesuar
6GK1900-0MN00-0AA0	Aksesuar
6XV1870-2B	Aksesuar · Cables · network cable electrical
6GK1900-0ML00-0AA0	Aksesuar
6GK1900-0NL00-0AA0	Aksesuar
6XV1874-2A	Aksesuar · Cables · network cable optical
6XV1874-2B	Aksesuar · Cables · network cable optical
6GK1900-0MB00-6AA0	Aksesuar
6GK1900-0NB00-6AA0	Aksesuar
6GK1901-0BP10-6AA0	Aksesuar
6GK1901-1BB10-6AA0	Aksesuar
6GK1901-1BB20-6AA0	Aksesuar
6GK1907-0AB11-6AA0	Aksesuar
6XV1840-2AH10	Aksesuar · Cables · network cable electrical
6XV1801-2B	Aksesuar · Cables · power cables
