How can I get a price quote for Siemens 6XV1874-2A?

You can request a fast quote for Siemens 6XV1874-2A from Yılsa Engineering. Reference part number CEY-8EF3B0383387. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1874-2A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1874-2A genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1874-2A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

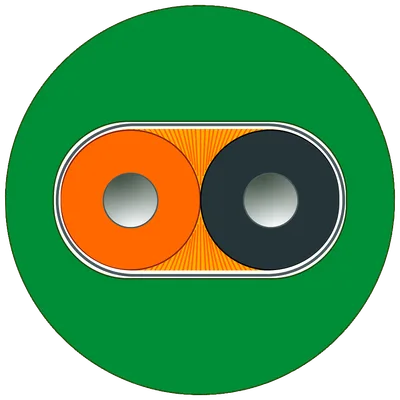

Siemens 6XV1874-2A

POF Standard Cable GP 980/1000, PROFINET, standard cable, Sold by the meter minimum order quantity 20 m max. length 500 m.

SiemensMFR # 6XV1874-2ASKU # CEY-8EF3B0383387

product brand nameSIMATIC NET

version of the assembled FO cablesold by the meter

cable designationI-V4Y(ZN)Y 2P 980/1000

at 650 nm / maximum160 dB/km

at 650 nm1 GHz·m

number of fibers / per FOC core1

Have questions?Chat on WhatsApp

About This Product

POF Standard Cable GP 980/1000, PROFINET, standard cable, Sold by the meter minimum order quantity 20 m max. length 500 m.

Siemens 6XV1874-2A

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useCable for permanent installation indoors, UL approval

version of the assembled FO cablesold by the meter

cable designationI-V4Y(ZN)Y 2P 980/1000

optical data

at 650 nm / maximum160 dB/km

at 650 nm1 GHz·m

mechanical data

number of fibers / per FOC core1

number of FO cores / per FOC cable2

version of the FO conductor fiberPOF FOC 980/1000 µm

of the optical fibers980 µm

of the optical fiber sheath1000 µm

of the FOC core sheath2.2 mm

symmetrical deviation / of the outer diameter of the FOC core sheath0.1 mm

outer diameter / of the cable7.8 mm

of the fiber-optic cable corePolymethylmethacrylate (PMMA)

of the optical fiber sheathFluoridated special polymer

of the FOC core sheathPA

of the fiber-optic cable sheathPVC

of the strain reliefKevlar fibers

of the FOC core sheathorange/black

of cable sheathgreen

with single bend / minimum permissible100 mm

with multiple bends / minimum permissible150 mm

during installation / short-term100 N

during operation / maximum100 N

short-term shear force per length100 N/cm

weight per length65 kg/km

ambient conditions

during operation-30 ... +70 °C

during storage-30 ... +70 °C

during transport-30 ... +70 °C

during installation50 °C

fire behaviorflame-resistant acc. to IEC 60332-1-2

class of burning behaviour / according to EN 13501-6Eca

to mineral oilconditional resistance

to greaseconditional resistance

radiological resistance / to UV radiationnot resistant

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

product component / rodent protectionNo

for POF FOC / for Industrial Ethernet / maximum50 m

standards, specifications, approvals

UL approvalYes; UL OFN

RoHS conformityYes

Accessories 13

Genuine accessories that can be used with the Siemens 6XV1874-2A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6GK1901-0DA20-0AA0	Aksesuar
6GK1901-0RB10-2AB0	Aksesuar
6GK1901-0RP10-0AA0	Aksesuar · Cabling system
6GK1900-1LP00-0AB0	Aksesuar
6XV1843-5EH10-0AA0	Aksesuar · Cables · network cable optical
6XV1843-5EH10-0AB0	Aksesuar · Cables · network cable optical
6XV1843-5EH10-0CA0	Aksesuar · Cables · network cable optical
6XV1843-5EH10-0CB0	Aksesuar · Cables · network cable optical
6XV1843-5EH10-0CC0	Aksesuar · Cables · network cable optical
6XV1843-5EH20-0AA0	Aksesuar · Cables · network cable optical
6XV1843-5EH20-0AB0	Aksesuar · Cables · network cable optical
6XV1843-5EH30-0AA0	Aksesuar · Cables · network cable optical
6XV1843-5EH30-0AB0	Aksesuar · Cables · network cable optical
