Siemens 6ES7157-1AA00-0AB0

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6ES7157-1AA00-0AB0

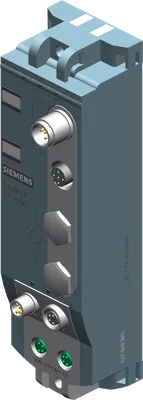

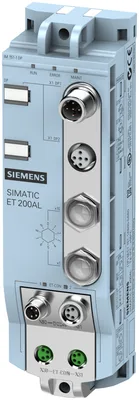

SIMATIC ET 200AL, PROFIBUS interface module IM 157-1 DP, degree of protection IP67; product phase-out planned - see SIOS 109989704

SiemensMFR # 6ES7157-1AA00-0AB0SKU # CEY-8EF3B02CE261
Product type designationIM 157-1 DP
HW functional statusFS02
Firmware versionV1.0.x
Vendor identification (VendorID)81A9H
I&M dataYes; I&M0 to I&M3
PROFIBUS from GSD version/GSD revisionGSD as of Revision 5
Share
Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200AL, PROFIBUS interface module IM 157-1 DP, degree of protection IP67; product phase-out planned - see SIOS 109989704

Siemens 6ES7157-1AA00-0AB0

  • Genuine, certified Siemens product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

General information
Product type designationIM 157-1 DP
HW functional statusFS02
Firmware versionV1.0.x
Vendor identification (VendorID)81A9H
Product function
I&M dataYes; I&M0 to I&M3
Engineering with
STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V13 SP1 or higher
STEP 7 configurable/integrated from versionFrom V5.5 SP4 Hotfix 3
PROFIBUS from GSD version/GSD revisionGSD as of Revision 5
Configuration control
via datasetYes
Supply voltage
power supply according to NEC Class 2 requiredNo
Load voltage 1L+
Rated value (DC)24 V
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes; against destruction
Input current
Current consumption (rated value)50 mA
from load voltage 1L+ (unswitched voltage)4 A; Maximum value
from load voltage 2L+, max.4 A; Maximum value
Power loss
Power loss, typ.1.7 W
Address space per station
Address space per station, max.244 byte
Interfaces
Number of PROFIBUS interfaces1
1. Interface
Interface typePROFIBUS DP
Interface types
RS 485Yes
M12 portYes; 2x M12 B-coded
Protocols
PROFIBUS DP deviceYes
RS 485
Transmission rate, max.12 Mbit/s
Protocols
Supports protocol for PROFINET IONo
PROFIsafeNo
PROFIBUSYes
EtherNet/IPNo
Services
— SYNC capabilityYes
— FREEZE capabilityYes
— Direct data exchange (slave-to-slave communication)Yes
— DPV0Yes
— DPV1Yes
Interrupts/diagnostics/status information
Diagnostics functionYes
Alarms
Diagnostic alarmYes
Diagnostics indication LED
RUN LEDYes; green LED
ERROR LEDYes; red LED
MAINT LEDYes; Yellow LED
Connection display DPYes; green LED
Potential separation
between the load voltagesYes
between PROFIBUS DP and all other circuit componentsYes
Isolation
Isolation tested with707 V DC (type test)
Degree and class of protection
IP degree of protectionIP65/67
Standards, approvals, certificates
Suitable for safety-related tripping of standard modulesYes; from FS01
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL d
Category according to ISO 13849-1Cat. 3
SIL acc. to IEC 62061SIL 2
Ambient temperature during operation
min.-30 °C
max.55 °C
Connection method
Design of electrical connection for supply voltageM8, 4-pole
ET-Connection
ET-ConnectionM8, 4-pin, shielded
Dimensions
Width45 mm
Height159 mm
Depth46 mm
Weights
Weight, approx.211 g

Accessories 120

Genuine accessories that can be used with the Siemens 6ES7157-1AA00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
6ES7194-2CA00-0AA0Aksesuar · Voltage distributor
6ES7194-2KA00-0AA0Aksesuar · Accessories
3RK1901-1PN00Aksesuar
6ES7194-2AC00-0AA0Aksesuar · Connection plug
6ES7194-2AA00-0AA0Aksesuar · Connection plug
6ES7194-2AB00-0AA0Aksesuar · Connection plug
6ES7194-2LH02-1AA0Aksesuar · Power cable
6ES7194-2LH03-1AA0Aksesuar · Power cable
6ES7194-2LH10-1AA0Aksesuar · Power cable
6ES7194-2LH20-1AA0Aksesuar · Power cable
6ES7194-2LH50-1AA0Aksesuar · Power cable
6ES7194-2LN10-1AA0Aksesuar · Power cable
6ES7194-2LN15-1AA0Aksesuar · Power cable
6ES7194-2LH02-0AA0Aksesuar · Bus cable
6ES7194-2LH03-0AA0Aksesuar · Bus cable
6ES7194-2LH10-0AA0Aksesuar · Bus cable
6ES7194-2LH20-0AA0Aksesuar · Bus cable
6ES7194-2LH50-0AA0Aksesuar · Bus cable
6ES7194-2LN10-0AA0Aksesuar · Bus cable
6ES7194-2LN15-0AA0Aksesuar · Bus cable
6ES7194-2LH20-1AC0Aksesuar · Power cable
6ES7194-2LH50-1AC0Aksesuar · Power cable
6ES7194-2LN10-1AC0Aksesuar · Power cable
6ES7194-2LN15-1AC0Aksesuar · Power cable
6ES7194-2LH20-0AC0Aksesuar · Bus cable
6ES7194-2LH50-0AC0Aksesuar · Bus cable
6ES7194-2LN10-0AC0Aksesuar · Bus cable
6ES7194-2LN15-0AC0Aksesuar · Bus cable
6ES7194-2LH03-1AB0Aksesuar · Power cable
6ES7194-2LH10-1AB0Aksesuar · Power cable
6ES7194-2LH20-1AB0Aksesuar · Power cable
6ES7194-2LH50-1AB0Aksesuar · Power cable
6ES7194-2LN10-1AB0Aksesuar · Power cable
6ES7194-2LN15-1AB0Aksesuar · Power cable
6ES7194-2LH03-0AB0Aksesuar · Bus cable
6ES7194-2LH10-0AB0Aksesuar · Bus cable
6ES7194-2LH20-0AB0Aksesuar · Bus cable
6ES7194-2LH50-0AB0Aksesuar · Bus cable
6ES7194-2LN10-0AB0Aksesuar · Bus cable
6ES7194-2LN15-0AB0Aksesuar · Bus cable
6ES7194-2MH02-1AA0Aksesuar · Power cable
6ES7194-2MH03-1AA0Aksesuar · Power cable
6ES7194-2MH10-1AA0Aksesuar · Power cable
6ES7194-2MH20-1AA0Aksesuar · Power cable
6ES7194-2MH50-1AA0Aksesuar · Power cable
6ES7194-2MN10-1AA0Aksesuar · Power cable
6ES7194-2MN15-1AA0Aksesuar · Power cable
6ES7194-2MH02-0AA0Aksesuar · Bus cable
6ES7194-2MH03-0AA0Aksesuar · Bus cable
6ES7194-2MH10-0AA0Aksesuar · Bus cable
6ES7194-2MH20-0AA0Aksesuar · Bus cable
6ES7194-2MH50-0AA0Aksesuar · Bus cable
6ES7194-2MN10-0AA0Aksesuar · Bus cable
6ES7194-2MN15-0AA0Aksesuar · Bus cable
6ES7194-2MH20-1AC0Aksesuar · Power cable
6ES7194-2MH50-1AC0Aksesuar · Power cable
6ES7194-2MN10-1AC0Aksesuar · Power cable
6ES7194-2MN15-1AC0Aksesuar · Power cable
6ES7194-2MH20-0AC0Aksesuar · Bus cable
6ES7194-2MH50-0AC0Aksesuar · Bus cable
6ES7194-2MN10-0AC0Aksesuar · Bus cable
6ES7194-2MN15-0AC0Aksesuar · Bus cable
6ES7194-2MH03-1AB0Aksesuar · Power cable
6ES7194-2MH10-1AB0Aksesuar · Power cable
6ES7194-2MH20-1AB0Aksesuar · Power cable
6ES7194-2MH50-1AB0Aksesuar · Power cable
6ES7194-2MN10-1AB0Aksesuar · Power cable
6ES7194-2MN15-1AB0Aksesuar · Power cable
6ES7194-2MH03-0AB0Aksesuar · Bus cable
6ES7194-2MH10-0AB0Aksesuar · Bus cable
6ES7194-2MH20-0AB0Aksesuar · Bus cable
6ES7194-2MH50-0AB0Aksesuar · Bus cable
6ES7194-2MN10-0AB0Aksesuar · Bus cable
6ES7194-2MN15-0AB0Aksesuar · Bus cable
6ES7194-2LH02-0AD0Aksesuar · Bus cable
6ES7194-2MH02-0AD0Aksesuar · Bus cable
6GK1901-0DB10-6AA0Aksesuar
6GK1901-0DB10-6AA8Aksesuar
6GK1901-0DB20-6AA0Aksesuar
6GK1901-0DB20-6AA8Aksesuar
3RK1902-2DA00Aksesuar
6XV1840-2AH10Aksesuar · Cables · network cable electrical
6XV1840-3AH10Aksesuar · Cables · network cable electrical
6XV1870-2DAksesuar · Cables · network cable electrical
6XV1840-4AH10Aksesuar · Cables · network cable electrical
6XV1870-2FAksesuar · Cables · network cable electrical
6XV1870-2BAksesuar · Cables · network cable electrical
6XV1871-2FAksesuar · Cables · network cable electrical
6XV1871-2LAksesuar · Cables · network cable electrical
6XV1871-2SAksesuar · Cables · network cable electrical
6XV1870-8AE30Aksesuar · Cables · network cable electrical
6XV1870-8AE50Aksesuar · Cables · network cable electrical
6XV1870-8AH10Aksesuar · Cables · network cable electrical
6XV1870-8AH15Aksesuar · Cables · network cable electrical
6XV1870-8AH20Aksesuar · Cables · network cable electrical
6XV1870-8AH30Aksesuar · Cables · network cable electrical
6XV1870-8AH50Aksesuar · Cables · network cable electrical
6XV1870-8AN10Aksesuar · Cables · network cable electrical
6XV1870-8AN15Aksesuar · Cables · network cable electrical
6XV1870-8AN20Aksesuar · Cables · network cable electrical
6XV1870-8AN30Aksesuar · Cables · network cable electrical
6XV1870-8AN40Aksesuar · Cables · network cable electrical
6XV1870-8AN50Aksesuar · Cables · network cable electrical
6XV1870-8GE30Aksesuar · Cables · network cable electrical
6XV1870-8GE50Aksesuar · Cables · network cable electrical
6XV1870-8GH10Aksesuar · Cables · network cable electrical
6XV1870-8GH15Aksesuar · Cables · network cable electrical
6XV1870-8GH20Aksesuar · Cables · network cable electrical
6XV1870-8GH30Aksesuar · Cables · network cable electrical
6XV1870-8GH50Aksesuar · Cables · network cable electrical
6XV1870-8GN10Aksesuar · Cables · network cable electrical
6XV1870-8GN15Aksesuar · Cables · network cable electrical
3RK1902-2HB30Aksesuar
3RK1902-2HB50Aksesuar
3RK1902-2HC10Aksesuar
6XV1871-5TH20Aksesuar · Cables · network cable electrical
6XV1871-5TH30Aksesuar · Cables · network cable electrical
6XV1871-5TH50Aksesuar · Cables · network cable electrical
6XV1871-5TN10Aksesuar · Cables · network cable electrical
