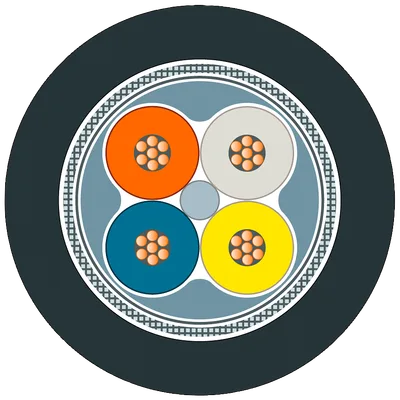

Siemens 6XV1871-2L

Industrial Ethernet FC TP FOOD cable GP 2x2 (PROFINET type C), TP installation cable for for use in the food and luxury food industry, 4-core, shielded, CAT5E, sold by the meter; delivery unit max. 1000 m, minimum order quantity: 20 m.

SiemensMFR # 6XV1871-2LSKU # CEY-8EF3B030B4D2

product brand nameSIMATIC NET

suitability for useFood and beverages industry

cable designationSF/UTP, 2YH (ST) C2Y 2X2X0,75/1,5-100 LI

wire lengthsold by the meter

at 10 MHz / maximum0.063 dB/m

at 100 MHz / maximum0.213 dB/m

Have questions?Chat on WhatsApp

About This Product

Siemens 6XV1871-2L

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useFood and beverages industry

cable designationSF/UTP, 2YH (ST) C2Y 2X2X0,75/1,5-100 LI

wire lengthsold by the meter

electrical data

at 10 MHz / maximum0.063 dB/m

at 100 MHz / maximum0.213 dB/m

at 1 MHz ... 100 MHz100 Ω

of the characteristic impedance at 1 MHz … 100 MHz5 %

at 1 MHz ... 100 MHz0.5 dB/m

transfer impedance per length / at 10 MHz10 mΩ/m

loop resistance per length / maximum120 mΩ/m

RMS value80 V

NVP value in percent69 %

mechanical data

number of electrical cores4

design of the shieldSF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires

type of electrical connection / FastConnectYes

of AWG22 insulated conductor0.75 mm

of inner conductor0.75 mm

of the wire insulation1.5 mm

of the inner sheath of the cable3.9 mm

of cable sheath6.5 mm

symmetrical tolerance of the outer diameter / of cable sheath0.2 mm

of the wire insulationpolyethylene (PE)

of the inner sheath of the cableFRNC

of cable sheathPE

of the insulation of data wireswhite/yellow/blue/orange

of cable sheathBlack

with single bend / minimum permissible20 mm

with multiple bends / minimum permissible49 mm

tensile load / maximum150 N

weight per length55 kg/km

ambient conditions

during operation-40 ... +75 °C

during storage-50 ... +75 °C

during transport-50 ... +75 °C

during installation-20 ... +60 °C

noteelectrical properties measured at 20 °C

fire behaviorinflammable

class of burning behaviour / according to EN 13501-6Fca

to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)

to greaseConditional resistance

to waterResistant

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeYes

PoE capabilityYes

PoE+ capabilityYes

silicon-freeYes

with 100BaseTX100 m

at AC / core-to-core2000 V

at AC / core shield2000 V

standards, specifications, approvals

UL/ETL listing / 300 V RatingNo

UL/ETL style / 600 V RatingNo

EAC approvalYes

CE markingYes

RoHS conformityYes

standard for structured cablingCat5e

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No
