How can I get a price quote for Siemens 6ES7147-6BG00-0AB0?

You can request a fast quote for Siemens 6ES7147-6BG00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77FEA8A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7147-6BG00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7147-6BG00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7147-6BG00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

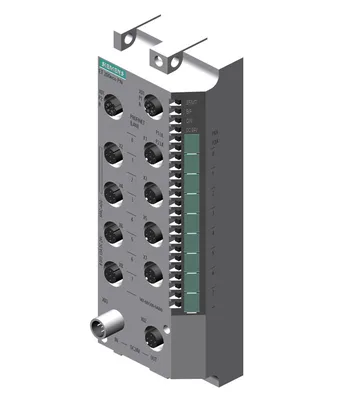

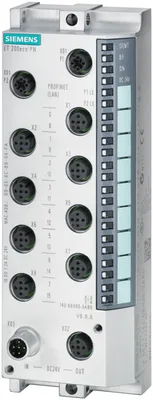

Siemens 6ES7147-6BG00-0AB0

*** spare part *** SIMATIC DP, ET 200eco PN, 8 DIO 24 V DC/1.3 A; 8xM12, degree of protection IP67

SiemensMFR # 6ES7147-6BG00-0AB0SKU # CEY-937FC77FEA8A

Vendor identification (VendorID)002AH

Device identifier (DeviceID)0306H

Rated value (DC)24 V

Reverse polarity protectionYes

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

Have questions?Chat on WhatsApp

About This Product

*** spare part *** SIMATIC DP, ET 200eco PN, 8 DIO 24 V DC/1.3 A; 8xM12, degree of protection IP67

Siemens 6ES7147-6BG00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Vendor identification (VendorID)002AH

Device identifier (DeviceID)0306H

Supply voltage

Rated value (DC)24 V

Reverse polarity protectionYes

power supply according to NEC Class 2 requiredYes

Load voltage 2L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, typ.100 mA

from supply voltage 1L+, max.4 A

from load voltage 1L+ (unswitched voltage)4 A

from load voltage 2L+, max.4 A

24 V encoder supply

Short-circuit protectionYes; Electronic

Output current, max.100 mA; per output

Power loss

Power loss, typ.6.5 W

Digital inputs

Number of digital inputs8

in groups of4

Input characteristic curve in accordance with IEC 61131, type 3Yes

all mounting positions

— up to 60 °C, max.8

Input voltage

Rated value (DC)24 V

for signal "0"-3 to +5V

for signal "1"+11 to +30V

Input current

for signal "1", typ.7 mA

for standard inputs

— at "0" to "1", max.typically 3 ms

— at "1" to "0", max.typically 3 ms

Cable length

unshielded, max.30 m

Digital outputs

Number of digital outputs8

in groups of4

Short-circuit protectionYes; Electronic

Response threshold, typ.1.8 A

Limitation of inductive shutdown voltage toTyp. (L1+, L2+) -47 V

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.5 W

Output current

for signal "1" rated value1.3 A; Maximum

for signal "1" permissible range, max.1.3 A

for signal "0" residual current, max.1.5 mA

Parallel switching of two outputs

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.5 Hz

on lamp load, max.1 Hz

all mounting positions

— up to 60 °C, max.3.9 A

Cable length

unshielded, max.30 m

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

Interfaces

Transmission procedure100BASE-TX

Number of PROFINET interfaces1

Interface types

M12 portYes

integrated switchYes

Services

— IRT with the option "high flexibility"Yes

— Prioritized startupYes

M12 port

AutonegotiationYes

AutocrossingYes

Transmission rate, max.100 Mbit/s

Protocols

Supports protocol for PROFINET IOYes

PROFINET CBANo

PROFIsafeNo

Media redundancy

— MRPYes

Open IE communication

TCP/IPNo

SNMPYes

DCPYes

LLDPYes

pingYes

ARPYes

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Diagnoses

Diagnostic information readableYes

Monitoring the supply voltageYes; green "ON" LED

Wire-break in actuator cableYes

Wire-break in signal transmitter cableYes

Short-circuitYes

Short-circuit encoder supplyYes

Group errorYes; Red/yellow "SF/MT" LED

Potential separation

between the load voltagesYes

between load voltage and all other switching componentsNo

between Ethernet and electronicsYes

Potential separation channels

between the channelsNo

tested with

24 V DC circuits707 V DC (type test)

Test voltage for interface, rms value [Vrms]1 500 V; According to IEEE 802.3

Degree and class of protection

IP degree of protectionIP65/67

Standards, approvals, certificates

Suitable for safety-related tripping of standard modulesNo

Use in hazardous areas

Explosion protection category for gasATEX II 3G Ex nA II T4

Explosion protection category for dustATEX II 3D Ex tc IIIC T90°C Dc

Connection method

Design of electrical connection4/5-pin M12 circular connectors

Dimensions

Width60 mm

Height175 mm

Depth49 mm

Weights

Weight, approx.910 g

Accessories 99
