How can I get a price quote for Siemens 6XV1801-2C?

You can request a fast quote for Siemens 6XV1801-2C from Yılsa Engineering. Reference part number YLSEVXF2NYDBD1E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1801-2C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1801-2C genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1801-2C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

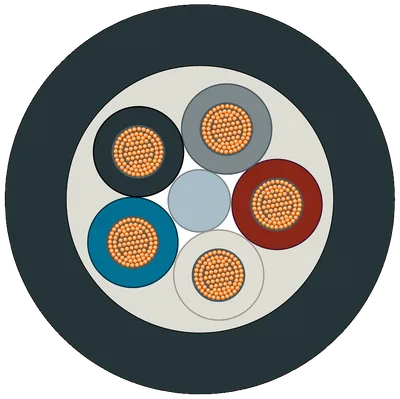

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1801-2C

Control cable, 5-core Power line, stranded wire, 5 x AWG24; Delivery unit: max. 1000 m, minimum order quantity 20 m sold by the meter

SiemensMFR # 6XV1801-2CSKU # YLSEVXF2NYDBD1E

product brand nameSIMATIC NET

cable designationLIHH11Y 5X1X0.25 SW

operating voltage / RMS value300 V

continuous current / of the power lines2.5 A

number of electrical cores5

AWG number24

Have questions?Chat on WhatsApp

About This Product

Control cable, 5-core Power line, stranded wire, 5 x AWG24; Delivery unit: max. 1000 m, minimum order quantity 20 m sold by the meter

Siemens 6XV1801-2C

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

cable designationLIHH11Y 5X1X0.25 SW

electrical data

operating voltage / RMS value300 V

conductor cross section / of the power line0.4 mm²

continuous current / of the power lines2.5 A

mechanical data

number of electrical cores5

AWG number24

of inner conductor0.7 mm

of the wire insulation1.2 mm

of cable sheath5.3 mm

symmetrical tolerance of the outer diameter / of cable sheath0.3 mm

conductor class6

of the conductorCU, blank

of the wire insulationFRNC

of cable sheathPUR

product component / PE connectionNo

marking / of coresColor

of the power line insulationBrown / white / blue / black / gray

of cable sheathBlack

with single bend / minimum permissible21 mm

with multiple bends / minimum permissible42 mm

tensile load / maximum10 N

weight per length40 kg/km

ambient conditions

during operation-15 ... +80 °C

during storage-25 ... +80 °C

during transport-25 ... +80 °C

during installation-15 ... +80 °C

fire behaviorFlame-resistant according to IEC 60332-1-2, UL 2556, Sec. 9.3 (FT1), CSA C22.2 No.2556, UL 1581, Sec. 1061 (cable flame)

class of burning behaviour / according to EN 13501-6Fca

to mineral oiloil resistant according to DIN EN 60811-404 (7x24h/90°C)

to greaseConditional resistance

to waterConditional resistance

radiological resistance / to UV radiationsunlight resistant acc. to UL 2556 sec. 4.2.8.5 (720h)

product features, product functions, product components / general

halogen-freeYes

silicon-freeYes

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; UL Style 20233 (80°C/300V) CSA C22.2 No. 210 I/II A/B FT1

UL/ETL style / 600 V RatingNo; F

EAC approvalYes

RoHS conformityYes

Accessories 2

Genuine accessories that can be used with the Siemens 6XV1801-2C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
