How can I get a price quote for Siemens 6ES7144-4FF01-0AB0?

You can request a fast quote for Siemens 6ES7144-4FF01-0AB0 from Yılsa Engineering. Reference part number CEY-937FC780B65D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7144-4FF01-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7144-4FF01-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7144-4FF01-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

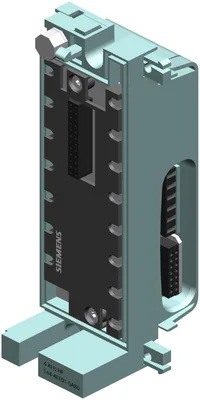

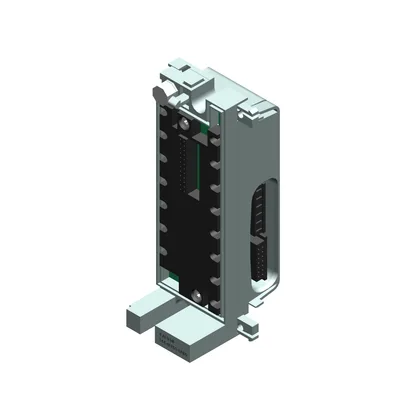

Siemens 6ES7144-4FF01-0AB0

SIMATIC DP, electronic module for ET 200pro 4 AI U High Feature, +-10 V; 0...10 V; +-5 V; 1...5 V; Channel diagnostics; incl. bus module, connection module IO 6ES7194-4..00-0AA0 to be ordered separately

SiemensMFR # 6ES7144-4FF01-0AB0SKU # CEY-937FC780B65D

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction

from supply voltage 1L+, max.40 mA; Typical

from backplane bus 3.3 V DC, max.12 mA; Typical

Number of outputs4

Short-circuit protectionYes; per module, electronic to frame

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7144-4FF01-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Supply voltage

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction

Input current

from supply voltage 1L+, max.40 mA; Typical

from backplane bus 3.3 V DC, max.12 mA; Typical

Encoder supply

Number of outputs4

Short-circuit protectionYes; per module, electronic to frame

Output current

up to 55 °C, max.1 A

Power loss

Power loss, typ.1.1 W

Address space per module

Address space per module, max.8 byte

Analog inputs

Number of analog inputs4

permissible input voltage for voltage input (destruction limit), max.35 V

Cycle time (all channels) max.5 ms

Input ranges (rated values), voltages

0 to +10 VYes

1 V to 5 VYes

-10 V to +10 VYes

-5 V to +5 VYes

Cable length

shielded, max.30 m

Analog value generation for the inputs

Measurement principleintegrating

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.15 bit; 15 bit + sign at ±10 V, at ±5 V; 15 bit at 0 V to 10 V, at 1 V to 5 V

Integration time (ms)60 / 20 / 16.7 / 0.3

Interference voltage suppression for interference frequency f1 in Hz16,67 / 50 / 60 / 3 600

Conversion time (per channel)60.8 ms / 20.8 ms / 17.5 ms / 1.1 ms

Smoothing of measured values

parameterizableYes

Step: NoneYes; 1x cycle time

Step: lowYes; 4x cycle time

Step: MediumYes; 16x cycle time

Step: HighYes; 64x cycle time

Connection of signal encoders

for voltage measurementYes

Errors/accuracies

Linearity error (relative to input range), (+/-)0.0075 %

Temperature error (relative to input range), (+/-)0.00075 %/K

Crosstalk between the inputs, min.-70 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.004 %

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.1 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.075 %

Interference voltage suppression for f = n x (f1 +/- 0.5 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.60 dB

Common mode interference (USS < 2.5 V), min.80 dB; Interference voltage < 10 V

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes; Parameterizable

Hardware interruptYes; (limit value alarm), can be parameterized for channel 0

Diagnoses

Diagnostic information readableYes

Wire breakYes; at 1 to 5 V

Short-circuitYes; at 1 to 5 V

Diagnostics indication LED

Group error SF (red)Yes

Potential separation analog inputs

between the channelsNo

between the channels and backplane busYes

Permissible potential difference

Between the inputs and MANA (UCM)10 Vpp AC

Isolation

Isolation tested with707 V DC (type test)

Dimensions

Width45 mm

Height130 mm

Depth35 mm

Weights

Weight, approx.150 g
