How can I get a price quote for Siemens 6ES7142-6BG00-0AB0?

You can request a fast quote for Siemens 6ES7142-6BG00-0AB0 from Yılsa Engineering. Reference part number CEY-8EF3B0387E60. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7142-6BG00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7142-6BG00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7142-6BG00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

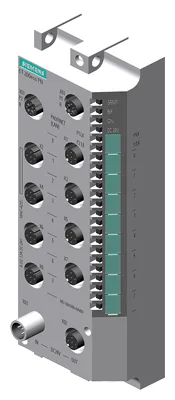

Siemens 6ES7142-6BG00-0AB0

*** spare part *** SIMATIC DP, ET 200eco PN, 8 DO 24 V DC/1.3 A; 8xM12, degree of protection IP67

SiemensMFR # 6ES7142-6BG00-0AB0SKU # CEY-8EF3B0387E60

Vendor identification (VendorID)002AH

Device identifier (DeviceID)0306H

Rated value (DC)24 V

Reverse polarity protectionYes

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

Have questions?Chat on WhatsApp

About This Product

*** spare part *** SIMATIC DP, ET 200eco PN, 8 DO 24 V DC/1.3 A; 8xM12, degree of protection IP67

Siemens 6ES7142-6BG00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Vendor identification (VendorID)002AH

Device identifier (DeviceID)0306H

Supply voltage

Rated value (DC)24 V

Reverse polarity protectionYes

power supply according to NEC Class 2 requiredYes

Load voltage 1L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Load voltage 2L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, typ.100 mA

from supply voltage 1L+, max.4 A

from load voltage 1L+ (unswitched voltage)4 A

from load voltage 2L+, max.4 A

Power loss

Power loss, typ.5.5 W

Digital outputs

Number of digital outputs8

in groups of4

Short-circuit protectionYes

Response threshold, typ.1.8 A

Limitation of inductive shutdown voltage toTyp. (L1+, L2+) -47 V

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.5 W

Output current

for signal "1" rated value1.3 A; Maximum

for signal "0" residual current, max.1.5 mA

Parallel switching of two outputs

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.5 Hz

on lamp load, max.1 Hz

all mounting positions

— up to 60 °C, max.3.9 A

Cable length

unshielded, max.30 m

Interfaces

Transmission procedure100BASE-TX

Number of PROFINET interfaces1

Interface types

integrated switchYes

Services

— IRT with the option "high flexibility"Yes

— Prioritized startupYes

M12 port

AutonegotiationYes

AutocrossingYes

Transmission rate, max.100 Mbit/s

Protocols

Supports protocol for PROFINET IOYes

PROFINET CBANo

PROFIsafeNo

Media redundancy

— MRPYes

Open IE communication

TCP/IPNo

SNMPYes

DCPYes

LLDPYes

pingYes

ARPYes

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Diagnoses

Diagnostic information readableYes

Monitoring the supply voltageYes; green "ON" LED

Wire-break in actuator cableYes

Short-circuitYes

Group errorYes; Red/yellow "SF/MT" LED

Potential separation

between the load voltagesYes

between load voltage and all other switching componentsNo

between Ethernet and electronicsYes

Potential separation channels

between the channelsNo

tested with

24 V DC circuits707 V DC (type test)

Test voltage for interface, rms value [Vrms]1 500 V; According to IEEE 802.3

Degree and class of protection

IP degree of protectionIP65/67

Standards, approvals, certificates

Suitable for safety-related tripping of standard modulesYes

Highest safety class achievable for safety-related tripping of standard modules

Performance level according to ISO 13849-1PL d

Category according to ISO 13849-1Cat. 3

SIL acc. to IEC 62061SIL 2

Use in hazardous areas

Explosion protection category for gasATEX II 3G Ex nA II T4

Explosion protection category for dustATEX II 3D Ex tc IIIC T90°C Dc

Connection method

Design of electrical connection4/5-pin M12 circular connectors

Dimensions

Width60 mm

Height175 mm

Depth49 mm

Weights

Weight, approx.910 g

Accessories 99

Genuine accessories that can be used with the Siemens 6ES7142-6BG00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7194-6GA00-0AA0	Aksesuar · Mounting rail
6ES7194-6MA00-0AA0	Aksesuar · Accessories
6ES7194-6CA00-0AA0	Aksesuar · Connection module
6ES7194-6HB00-0AA0	Aksesuar · Accessories
6ES7148-6CB00-0AA0	Aksesuar · Voltage distributor
6ES7194-6KA00-0XA0	Aksesuar · Cable
3RK1901-1KA00	Aksesuar
3RK1901-1KA01	Aksesuar
6GK1901-0DB20-6AA0	Aksesuar
6GK1901-0DB20-6AA8	Aksesuar
6GK1901-0DB10-6AA0	Aksesuar
6GK1901-0DB10-6AA8	Aksesuar
3RK1902-2DA00	Aksesuar
6XV1840-2AH10	Aksesuar · Cables · network cable electrical
6XV1840-3AH10	Aksesuar · Cables · network cable electrical
6XV1870-2D	Aksesuar · Cables · network cable electrical
6XV1840-4AH10	Aksesuar · Cables · network cable electrical
6XV1870-2F	Aksesuar · Cables · network cable electrical
6XV1870-2B	Aksesuar · Cables · network cable electrical
6XV1871-2F	Aksesuar · Cables · network cable electrical
6XV1871-2L	Aksesuar · Cables · network cable electrical
6XV1871-2S	Aksesuar · Cables · network cable electrical
6XV1870-8AE30	Aksesuar · Cables · network cable electrical
6XV1870-8AE50	Aksesuar · Cables · network cable electrical
6XV1870-8AH10	Aksesuar · Cables · network cable electrical
6XV1870-8AH15	Aksesuar · Cables · network cable electrical
6XV1870-8AH20	Aksesuar · Cables · network cable electrical
6XV1870-8AH30	Aksesuar · Cables · network cable electrical
6XV1870-8AH50	Aksesuar · Cables · network cable electrical
6XV1870-8AN10	Aksesuar · Cables · network cable electrical
6XV1870-8AN15	Aksesuar · Cables · network cable electrical
6XV1870-8AN20	Aksesuar · Cables · network cable electrical
6XV1870-8AN30	Aksesuar · Cables · network cable electrical
6XV1870-8AN40	Aksesuar · Cables · network cable electrical
6XV1870-8AN50	Aksesuar · Cables · network cable electrical
6XV1870-8GE30	Aksesuar · Cables · network cable electrical
6XV1870-8GE50	Aksesuar · Cables · network cable electrical
6XV1870-8GH10	Aksesuar · Cables · network cable electrical
6XV1870-8GH15	Aksesuar · Cables · network cable electrical
6XV1870-8GH20	Aksesuar · Cables · network cable electrical
6XV1870-8GH30	Aksesuar · Cables · network cable electrical
6XV1870-8GH50	Aksesuar · Cables · network cable electrical
6XV1870-8GN10	Aksesuar · Cables · network cable electrical
6XV1870-8GN15	Aksesuar · Cables · network cable electrical
6XV1881-5AH10	Aksesuar · Cables · network cable electrical
6XV1881-5AH20	Aksesuar · Cables · network cable electrical
6XV1881-5AH30	Aksesuar · Cables · network cable electrical
6XV1881-5AH50	Aksesuar · Cables · network cable electrical
3RK1902-2HB30	Aksesuar
3RK1902-2HB50	Aksesuar
3RK1902-2HC10	Aksesuar
6XV1871-5TH20	Aksesuar · Cables · network cable electrical
6XV1871-5TH30	Aksesuar · Cables · network cable electrical
6XV1871-5TH50	Aksesuar · Cables · network cable electrical
6XV1871-5TN10	Aksesuar · Cables · network cable electrical
6XV1871-5TN15	Aksesuar · Cables · network cable electrical
3RK1902-4BA00-5AA0	Aksesuar
3RK1902-4DA00-5AA0	Aksesuar
6XV1801-2C	Aksesuar · Cables · power cables
3RK1902-4PB15-3AA0	Aksesuar
6GT2891-4MH50	Aksesuar · Cables · serial cable
6GT2891-4MN10	Aksesuar · Cables · serial cable
3RK1902-4HB15-5AA0	Aksesuar
3RK1902-4HB50-5AA0	Aksesuar
3RK1902-4HC01-5AA0	Aksesuar
6XV1801-2CE50	Aksesuar · Cables · power cables
6XV1801-2CH10	Aksesuar · Cables · power cables
6XV1801-2CH15	Aksesuar · Cables · power cables
6XV1801-2CH20	Aksesuar · Cables · power cables
6XV1801-2CH30	Aksesuar · Cables · power cables
6XV1801-2CH50	Aksesuar · Cables · power cables
6XV1801-2CN10	Aksesuar · Cables · power cables
6XV1801-2CN15	Aksesuar · Cables · power cables
6GK1907-0DB10-6AA3	Aksesuar
6XV1801-5DE30	Aksesuar · Cables · power cables
6XV1801-5DE50	Aksesuar · Cables · power cables
6XV1801-5DH10	Aksesuar · Cables · power cables
6XV1801-5DH15	Aksesuar · Cables · power cables
6XV1801-5DH20	Aksesuar · Cables · power cables
6XV1801-5DH30	Aksesuar · Cables · power cables
6XV1801-5DH50	Aksesuar · Cables · power cables
6XV1801-5DN10	Aksesuar · Cables · power cables
6XV1801-5DN15	Aksesuar · Cables · power cables
6XV1801-5GE30	Aksesuar · Cables · power cables
6XV1801-5GE50	Aksesuar · Cables · power cables
6XV1801-5GH10	Aksesuar · Cables · power cables
6XV1801-5GH15	Aksesuar · Cables · power cables
6XV1801-5GH20	Aksesuar · Cables · power cables
6XV1801-5GH30	Aksesuar · Cables · power cables
6XV1801-5GH50	Aksesuar · Cables · power cables
6XV1801-5GN10	Aksesuar · Cables · power cables
6XV1801-5GN15	Aksesuar · Cables · power cables
6XV1801-5AH10	Aksesuar · Cables · power cables
6XV1801-5AH20	Aksesuar · Cables · power cables
6XV1801-5AH30	Aksesuar · Cables · power cables
6XV1801-5AH50	Aksesuar · Cables · power cables
6GK1907-0DC10-6AA3	Aksesuar
3RK1902-4CA00-4AA0	Aksesuar
3RT2900-1SB10	Yedek parça · Miscellaneous accessories · labeling plates
