Siemens 6ES7141-5AH00-0BA0

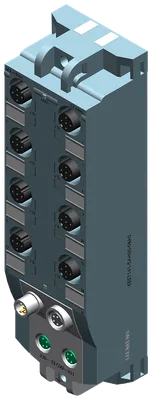

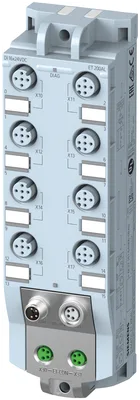

SIMATIC ET 200AL, DI 16x 24 V DC, 8x M12, Degree of protection IP67
Product type designationDI 16x24VDC
HW functional statusFS06
Firmware versionV2.0.x
I&M dataYes; I&M0 to I&M3
PROFIBUS from GSD version/GSD revisionGSD as of Revision 5
PROFINET from GSD version/GSD revisionGSDML V2.3.1
About This Product
SIMATIC ET 200AL, DI 16x 24 V DC, 8x M12, Degree of protection IP67
Siemens 6ES7141-5AH00-0BA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationDI 16x24VDC
HW functional statusFS06
Firmware versionV2.0.x
Product function
I&M dataYes; I&M0 to I&M3
Engineering with
STEP 7 TIA Portal configurable/integrated from versionSTEP 7 V13 SP1 or higher
STEP 7 configurable/integrated from versionV5.5 SP4 Hotfix 7 or higher
PROFIBUS from GSD version/GSD revisionGSD as of Revision 5
PROFINET from GSD version/GSD revisionGSDML V2.3.1
Supply voltage
power supply according to NEC Class 2 requiredNo
Load voltage 1L+
Rated value (DC)24 V
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Reverse polarity protectionYes; Against destruction; encoder power supply outputs applied with reversed polarity
Input current
Current consumption (rated value)30 mA; without load
from load voltage 1L+ (unswitched voltage)4 A; Maximum value
from load voltage 2L+, max.4 A; Maximum value
Encoder supply
Number of outputs8
24 V encoder supply
Short-circuit protectionYes; per module, electronic
Output current, max.1.4 A; Total current of all encoders
Power loss
Power loss, typ.2.7 W
Digital inputs
Number of digital inputs16
Sourcing/sinking inputP-reading
Input characteristic curve in accordance with IEC 61131, type 3Yes
all mounting positions
— up to 55 °C, max.16
Input voltage
Rated value (DC)24 V
for signal "0"-30 to +5 V
for signal "1"+11 to +30V
Input current
for signal "1", typ.3.2 mA
for standard inputs
— at "0" to "1", min.1.2 ms
— at "0" to "1", max.4.8 ms
— at "1" to "0", min.1.2 ms
— at "1" to "0", max.4.8 ms
Cable length
unshielded, max.30 m
Connectable encoders
2-wire sensorYes
— permissible quiescent current (2-wire sensor), max.1.5 mA
Alarms
Diagnostic alarmYes; Parameterizable
Diagnoses
Short-circuitYes; Sensor supply to M; module by module
Diagnostics indication LED
Channel status displayYes; green LED
for module diagnosticsYes; green/red LED
Potential separation
between the load voltagesYes
Potential separation channels
between the channelsNo
between the channels and backplane busYes
between the channels and the power supply of the electronicsNo
Isolation
Isolation tested with707 V DC (type test)
Degree and class of protection
IP degree of protectionIP65/67
Standards, approvals, certificates
Suitable for safety-related tripping of standard modulesYes; from FS01
Highest safety class achievable for safety-related tripping of standard modules
Performance level according to ISO 13849-1PL d
Category according to ISO 13849-1Cat. 3
SIL acc. to IEC 62061SIL 2
Security
signed firmware updateYes
data integrityYes
Ambient temperature during operation
min.-30 °C
max.55 °C
Altitude during operation relating to sea level
Ambient air temperature-barometric pressure-altitudeUp to max. 5 000 m, at installation height > 2 000 m additional restrictions

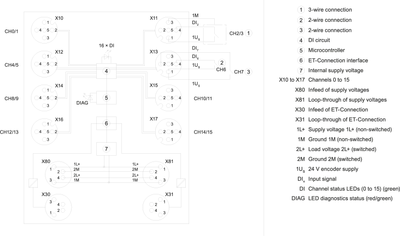

Connection method
Design of electrical connection for the inputs and outputsM12, 5-pole
Design of electrical connection for supply voltageM8, 4-pole
ET-Connection
ET-ConnectionM8, 4-pin, shielded
Dimensions
Width45 mm
Height159 mm
Depth40 mm
Weights
Weight, approx.184 g
