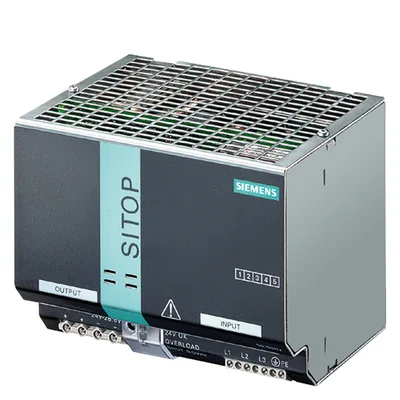

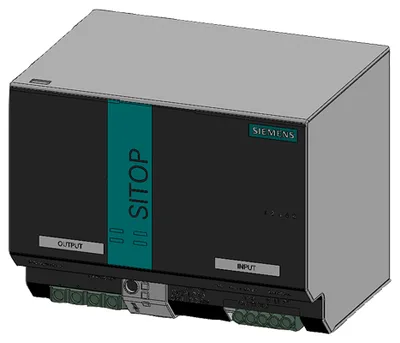

Siemens 6EP1336-3BA00

SITOP modular 20 A stabilized power supply input: 120/230 V AC output: 24 V DC/20 A

SiemensMFR # 6EP1336-3BA00SKU # CEY-937FC77FFD8D

product brand nameSITOP

product type designationmodular

product designationPower supply SITOP modular

type of current supply24 V/20 A

type of the power supply network1-phase AC

phase number1

Have questions?Chat on WhatsApp

About This Product

SITOP modular 20 A stabilized power supply input: 120/230 V AC output: 24 V DC/20 A

Siemens 6EP1336-3BA00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationmodular

product designationPower supply SITOP modular

type of current supply24 V/20 A

input

type of the power supply network1-phase AC

phase number1

voltage curve at inputAC

supply voltage at ACSet by means of wire jumper on the device; starting from Vin > 93/183 V

supply voltage120 V/230 V

input voltage 1 at AC85 ... 132 V

input voltage 2 at AC176 ... 264 V

at 50 Hz230 V

at 60 Hz120 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputNo

overvoltage overload capability2.3 × Vin rated, 1.3 ms

buffering time for rated value of the output current in the event of power failure minimum20 ms

operating condition of the mains bufferingat Vin = 230 V

at rated input voltage 120 V7.7 A

at rated input voltage 230 V3.5 A

current limitation of inrush current at 25 °C maximum60 A

I2t value maximum9.9 A²·s

fuse protection typeYes

fuse protection type in the feederRecommended miniature circuit breaker at 1-phase operation: 10 A characteristic C; required at 2-phase operation: circuit breaker 2-pole connected or circuit breaker 3RV2411-1JA10 (120 V) or 3RV2411-1FA10 (230 V)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage24 ... 28.8 V

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading0.1 %

maximum100 mV

typical30 mV

maximum200 mV

typical60 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputvia signaling module (6EP1961-3BA10)

behavior of the output voltage when switching onOvershoot of Vout approx. 3 %

response delay maximum0.1 s

typical50 ms

rated value20 A

rated range0 ... 20 A; +60 ... +70 °C: Derating 3.5%/K

supplied active power typical480 W

at short-circuit during operation typical60 A

at short-circuit during operation25 ms

on short-circuiting during the start-up typical23 A

bridging of equipmentYes; switchable characteristic

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent89 %

at rated output voltage for rated value of the output current typical59 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical2 %

load step 50 to 100% typical2 ms

load step 100 to 50% typical2 ms

maximum5 ms

protection and monitoring

design of the overvoltage protection< 35 V

property of the output short-circuit proofYes

design of short-circuit protectionAlternatively, constant current characteristic approx. 23 A or latching shutdown

typical23 A

display version for overload and short circuitLED yellow for "overload", LED red for "latching shutdown"

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3.5 mA

typical0.4 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

UKCA markingYes

EAC approvalYes

Regulatory Compliance Mark (RCM)Yes

NEC Class 2No

SEMI F47Yes

CB-certificateNo

MTBF at 40 °C786 164 h

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)No

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total1 547.7 kg

during manufacturing52.6 kg

during operation1 494 kg

after end of life0.44 kg

ambient conditions

during operation0 ... 70 °C; with natural convection

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connectionscrew terminal

at inputL, N, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded

at output+, -: 2 screw terminals each for 0.5 ... 4 mm²

for auxiliary contacts-

mechanical data

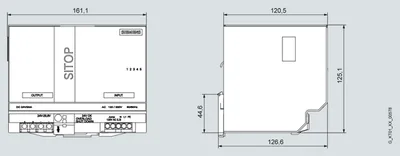

width × height × depth of the enclosure160 × 125 × 125 mm

installation width × mounting height160 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight2.2 kg

accessories

electrical accessoriesBuffer module, signaling module

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing52.6 kg

global warming potential [CO2 eq] / during operation1494 kg

global warming potential [CO2 eq] / after end of life0.44 kg

global warming potential [CO2 eq] / total1547.7 kg
